Ferrite Core EE100

Ferrite Core EE100 thumbnail-1
Ferrite Core EE100 photo-1
US$ 0.5 - 5 MOQ: 400 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Hengchuang
Model Number:
EE100
Contact Supplier Request Quote Chat Now
Nanjing Hengchuang Magnetic Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Hengchuang
Model Number EE100
Type Soft
Composite Other, Mn-Zn ferrite cores
Shape Other, EE ferrite cores
Application Industrial Magnet

Specifications

large size soft ferrite cores
EE ,EC,EI,ETD ,UU,UYF,UI,PM,PQ,Toroidal ferite core
material H40 H44 H95

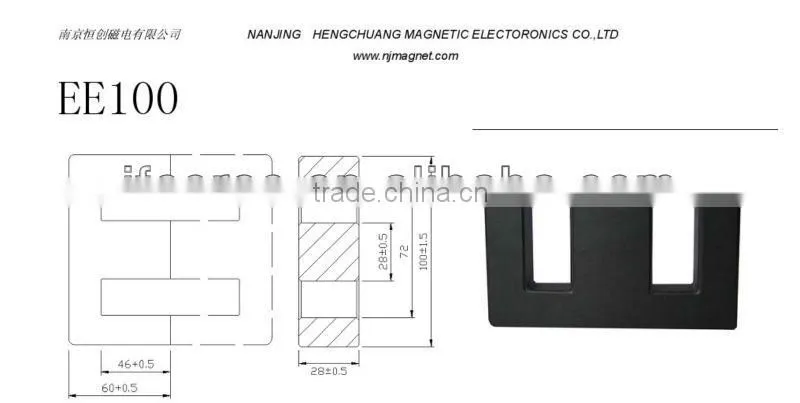

ferrite core EE100

Le=270mm , Ae=784mm2

material : PC40 , PC44.

high power low loss soft ferrite cores.

transformer ferrite cores.

EE ,EC,EI,ETD ,UU,UYF,UI,PM,PQ,Toroidal ferite core

Parameter

Symbol

Value

Unit

Core constant

C1

0.334

mm-1

Effective path length

Le

270

mm

Effective area

Ae

784

mm2

Effective volume

Ve

222656

mm3

Inductance factor

AL

7300

nH/N2

Weight of set

W

1060

g

Other name

EE100/60/28

Product code

S/N

S/N:P03150135
