Large Size Soft Ferrite Cores

Large Size Soft Ferrite Cores thumbnail-1
Large Size Soft Ferrite Cores photo-1
US$ 0.5 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Hengchuang
Model Number:
UY20
Contact Supplier Request Quote Chat Now
Nanjing Hengchuang Magnetic Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Hengchuang
Model Number UY20
Type Soft
Composite Other, soft Mn-Zn ferrite cores
Shape Other, EE ferrite cores
Application Industrial Magnet

Specifications

high power low loss ferrite cores.

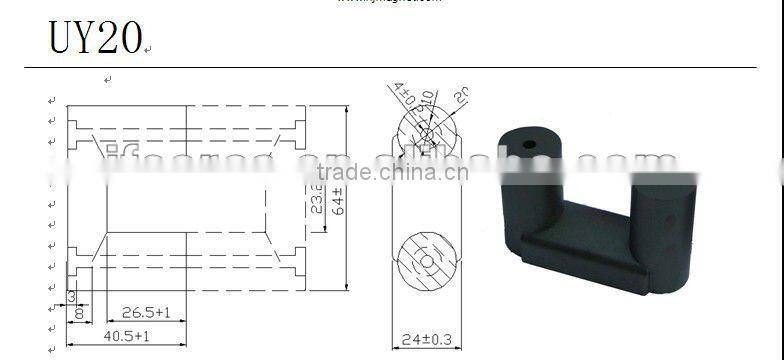

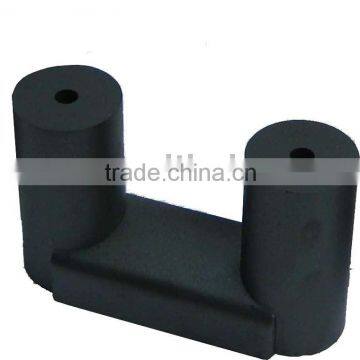

UY 20 ferrite core
high quality ferrite core
high frequency transformer cores

Le=210mm  ,Ae=290mm2 .

material : PC40 PC44.

high power large size soft Mn-Zn ferrite cores.

transformer ferrite cores. big size ferrite magnetic.



Parameter

Symbol

Value

Unit

Core constant

C1

0.724

mm-1

Effective path length

Le

210

mm

Effective area

Ae

290

mm2

Effective volume

Ve

61000

mm3

Inductance factor

AL

3750

nH/N2

Weight of set

W

280

g

Other name

UR64  UR64/40/20

Product code

S/N

S/N:P03410010

large size soft ferrite coreslarge size soft ferrite cores
