Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > Ferrite Cores PM 62

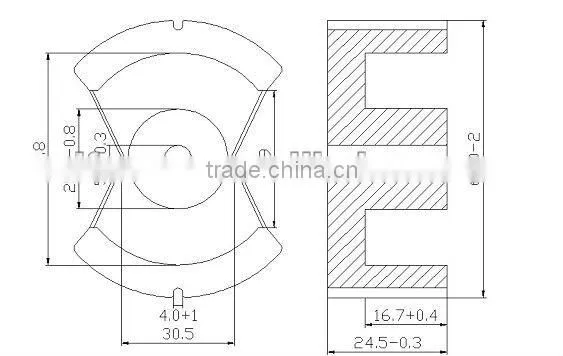

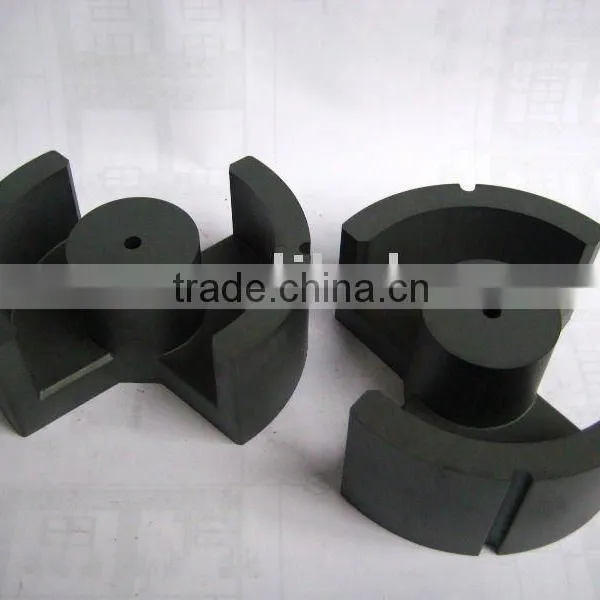

Ferrite Cores PM 62

Name: Ferrite Cores PM 62
Brand: Hengchuang
SKU: 129699799
Availability: InStock

US$ 0.5 - 5 MOQ: 200 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Hengchuang

Model Number:

PM62

Contact Supplier Request Quote Chat Now

Nanjing Hengchuang Magnetic Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Hengchuang

Model Number PM62

Type Soft

Composite Other, Fe2O3 ,Mn , Zn

Shape Other, PM ferrite cores

Application Industrial Magnet

Specifications

1 high power low loss ferrite core
2 multiple ferrite material
3 process with demanded gap
4 best prices and services

Parameter	Symbol	Value	Unit
Core constant	C1	0.204	mm^-1
Effective path length	Le	100	mm
Effective area	Ae	490	mm²
Effective volume	Ve	68425	mm³
Inductance factor	AL	12280	nH/N²
Weight of set	W	328	g
Other name	PM62/49
Product code	S/N	S/N:P0303040

Features:
1.High Saturation materal,low cost &high efficiency
2.wide inductance range,high current capability low magnetic leakage
3.low DC resistance,good control on noise due to the toriodal constructure
4.Characteristics:Small volume,Big current output,Excellent current choking performance.
5.Various material availiable to meet different frequency requirements

Applications:
switching regulators. Automotive systems, Power Amplofiers, Power supplies and Triac Controls
