Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Led Panel 30*120 50W 95 Lm/W TUV,CB,SAA,GS,CE,RoHs

Led Panel 30*120 50W 95 Lm/W TUV,CB,SAA,GS,CE,RoHs

Name: Led Panel 30*120 50W 95 Lm/W TUV,CB,SAA,GS,CE,RoHs
Brand: Glitter
SKU: 129699375
Availability: InStock

Led Panel 30*120 50W 95 Lm/W TUV,CB,SAA,GS,CE,RoHs thumbnail-1

Led Panel 30*120 50W 95 Lm/W TUV,CB,SAA,GS,CE,RoHs photo-1

US$ 55 - 80 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

Epistar SMD3014

Warranty(Years):

Input Voltage(V):

AC85-265V

Contact Supplier Request Quote Chat Now

Shenzhen Glitter Optoelectronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Epistar SMD3014

Warranty(Years) 3

Input Voltage(V) AC85-265V

Lamp Power(W) 90

Lamp Luminous Flux(lm) 4400-4800

Lamp Luminous Efficiency(lm/w) 95

Color Temperature(CCT) Other, 2700-6500K

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Stainless Steel

IP Rating IP44

Certification CE, C-tick, EMC, FCC, GS, LVD, SAA

Brand Name Glitter

Model Number PL-0312-5003

Specifications

Approved by TUV. 90-100 lm/W.
Backl-lit. Better heat dissipation.
Dimmable (PWM, 0-10V,Microwave light sensor).

Backlit LED Panel Light: PL-0606-9003

Features

1. Approved by TUV,GS,CE,RoHs.
2. Outstanding Heat Dissipation: help to reduce the luminous degradation and extent lifespan of products
3. High Lighting Efficiency: up to 100 lm/W by Epistar SMD 3014 LED
4. No such hazard that mercury or lead enters the environment.No RF interference

Item No.	PL-0312-5003
Dimension	*2951195***48 mm
Power	50 W
Voltage	AC85V - 265V 50/60HZ
LED Type	Epistar SMD3014
LED Quantity	440 pcs
Lumen	4400-4800lm
Color Temperature (CCT)	2800 -3500K, 4000 - 4500K, 5500 - 6500K
Operating temperature	-20~+40°C
Color Rendering Index (CRI)	Ra 75
LED Luminous Efficiency	90- 100lm/W
Power Factor (PF)	>0.95
IP Rank	IP 44
Material	SPCC+PMMA
Certificate	TUV,SAA,CB,GS,CE,RoHs
Life span	>50,000 hours
Dimmable	PWM, 0-10V, Microwave light sensor
Warranty	3 years

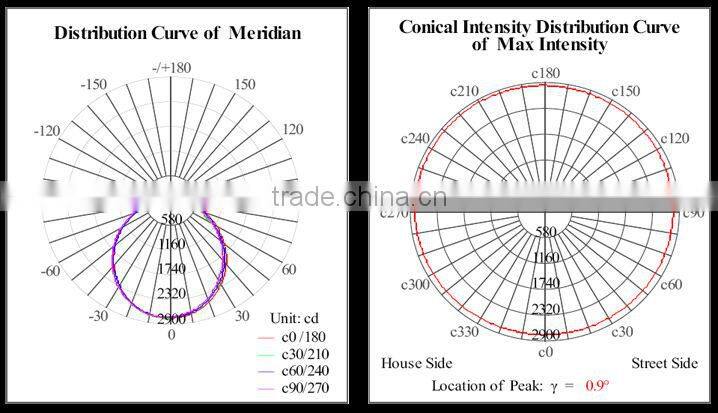

Light Distribution Curve & Max CD Distribution Curve

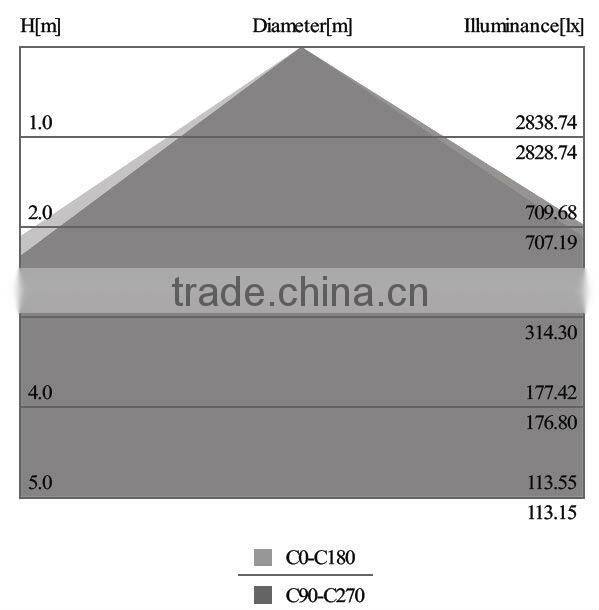

Illumination Diameter

Installation:

Warning: Before installation, please make sure the power is turned off .

A: Recessed Type

B: Suspended Type :

Factory picture:

Packing Pictures

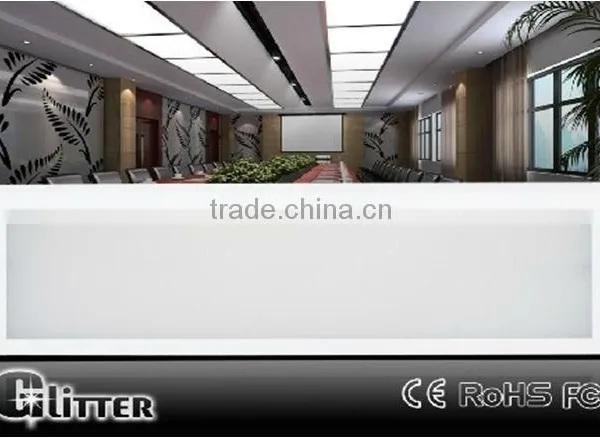

Application
* Offices & Library
* Kitchens & Bathrooms
* Department Store & Boutiques
* Restaurant & Cafeteria
* Conference Rooms
* Hospital & Laboratory
