Specifications
led panel light 30x30cmBack-lit, 95lm/W
Dimmable and Emergency (3 hours)
Own designed Driver (GS,CB,SAA)
PL-0303-1203: 30*30cm 12W LED Panel light (95lm/W, Dimmable/Emergency)
1- Features and Advantages

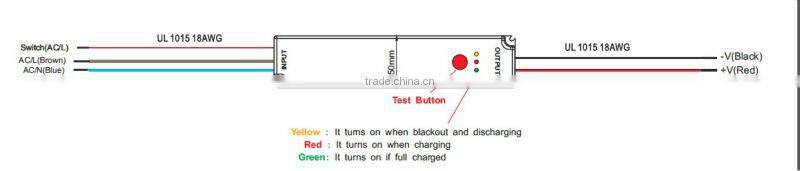

LED Emergency Driver:
Combination of Constant LED Driver and Emergency pack. no extra driver needed.
Smart transform from normal lighting to Emergency lighting.
PF>0.95, Emergency time: 3 hours.
with indicate lights
2- Technical Specifications
No. | Parameter | Unit | Description | |
1 | Power supply | V | AC85-265 | |
2 | Current frequency | Hz | 50/60 | |
3 | Working voltage | V | DC24 | |
4 | Power consumption | W | 12 | |
5 | Color temperature | Warm white | K | 2800-3500 |
Neutral white | 3800-4500 | |||
Cool white | 5500-6500 | |||
6 | Lumen | Warm white | lm | >860 |
Neutral white | >1020 | |||
Cool white | >1150 | |||
7 | Material |
| PMMA, Steel coating | |
8 | Operating temperature | °C | -10~+40 | |
9 | Humidity |
| 10-80% | |
10 | certificate | CE( TUV, ), RoHS, SAA, C-Tick | ||
11 | Luminaires Class | Ⅲ | ||
3- Dimension

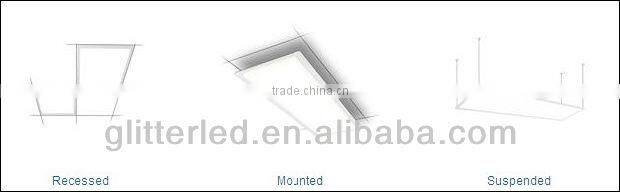

4- Installing

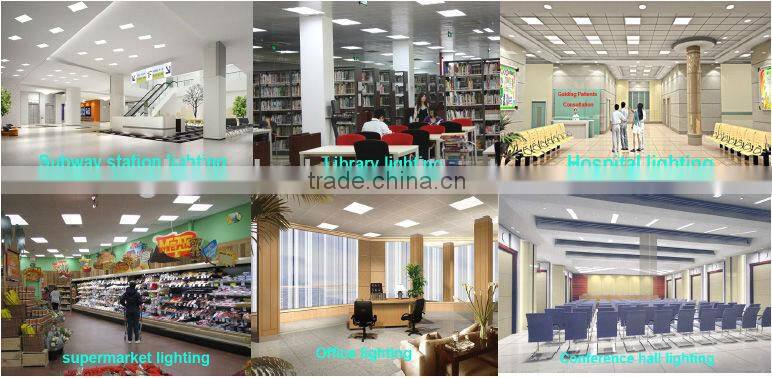

5- Application
6- Production view

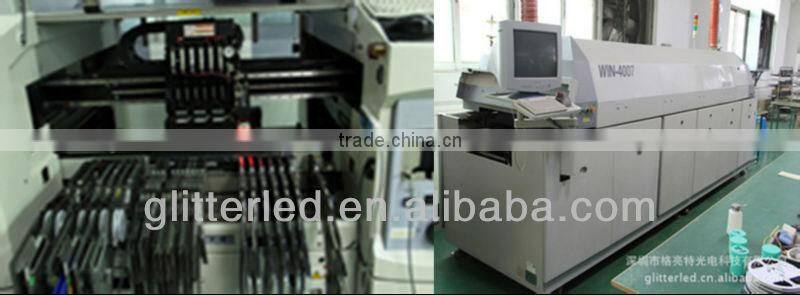

Production Facility- SMT Machine and Welding soldering machine

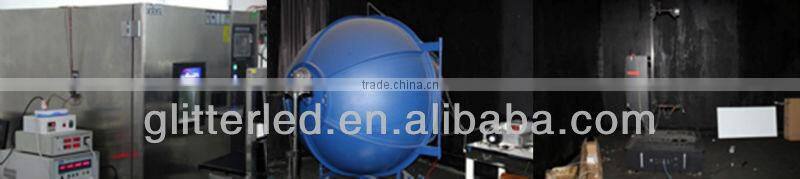

Test machine: Temp test, Integrating Sphere, Photometer:
7- Package
| Package | QTY/CTN | Carton Size | G.W. | |
| 4pcs | 320x270x320mm | 7.0kgs |
8-Certificate
