Specifications

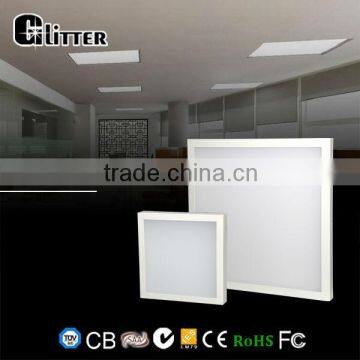

Italian design Back-lit LED Emergency panel 600x600mmTUV,SAA,CB,GS approved LED panel light,
95-100lm/W LED light

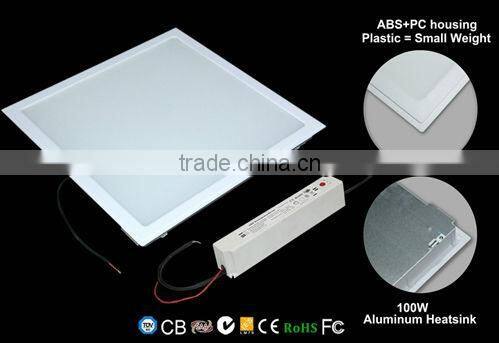

Back-lit Emergency LED Panel Light PL-0606-4503(600x600mm LED panel )
- Smart Automatic differs between normal lighting and emergency lighting
-
Easier Installation : Simply plug in
- Higher lighting efficiency: 95-100lm/W
- GS,CB,SAA,C-Tick certified LED dirver (better compatibility , efficiency>90%)
1). Technical parameter
Item No. |
PL-0606- 4503 |
|
Dimension |
595x595x43mm |
|
Voltage |
AC85V-265V 50/60HZ |
|
Power |
45W |
|
LED Type |
SMD3014 |
|
LED Quantity |
484pcs |
|
Luminous Flux |
Warm white |
3900lm |
| Neutral white | 4000lm |
|
| Pure white | 4300lm |
|
|
Color Temperature (CCT) |
Warm white |
2800-3500K |
| Neutral white | 3800-4500K |
|
| Pure white | 5500- 6500K |
|
Beam Angle |
120° |
|
Color Rendering Index (CRI) |
>80 |
|
Power Supply Efficiency |
>90% |
|
Luminous Efficiency |
100lm/W |
|
Power Factor (PF) |
>0.95 |
|
Total Harmonic Distortion (THD) |
≤15% |
|
IP Rank |
IP 50 |
|
Net Weight |
2.50 Kgs |
|
Certificate |
CE, RoHS, SAA, TUV, CB, C-Tick |
|
Application :
· Offices
· Kitchens
· Bathrooms
· Library
· Department Store & Boutiques
· Restaurant & Cafeteria
· Conference Rooms
· Hospital & Laboratory
Dimension (Unit: mm)
Installation :
Warning: Before installation, please make sure the power is turned off .
A: Recessed Type
B: Suspended Type :
Packing information :
Material |
QTY/CTN |
Carton Size |
G.W. |
Net Weight |
Carton |
2pcs |
650*650*160mm |
7kgs |
5 kgs |
