Shenzhen Supplier Outdoor Led Flood Light 20 Watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 Years Warranty

Shenzhen Supplier Outdoor Led Flood Light 20 Watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 Years Warranty thumbnail-1
Shenzhen Supplier Outdoor Led Flood Light 20 Watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 Years Warranty photo-1
US$ 20 - 30 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Input Voltage(V):
AC85-265v
Lamp Power(W):
20
Lamp Luminous Flux(lm):
1800
Contact Supplier Request Quote Chat Now
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Input Voltage(V) AC85-265v
Lamp Power(W) 20
Lamp Luminous Flux(lm) 1800
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, +50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP66
Certification C-tick, EMC, GS, LVD, SAA
Brand Name Glitter
Model Number FDL-G1-20W

Product Description

  Shenzhen Supplier  outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warranty

 Shenzhen Supplier outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warranty







 Main Feature:



  1. High efficiency 85-90lm/W, Ra>80

  2. Aluminum alloy, good at heat sink

  3. Isolated Driver with SAA, CE, GS,CB approve, PF 0.95

  4.  5 years warranty





  2. Tecical Data:

a. Technical chart

No. Item Description
1 Item No.: FDL-G1-20W
2 Dimension 176x156x61mm
3 Voltage AC85-265V
4 Current Frequency 50/60 Hz
5 Power 20W
6 LED Type & Qty 20pcs EMC3030
7 Beam Angle 120 degree
8 Color Temp. Warm white 2800-3500K
Neutral white 3800-4500K
Cool white 5500-6500K
9 Lumen Warm white >1600lm
Neutral white >1700lm
Cool white >1800lm
10 Color Rendering Index >80
11 Material  Aluminum 6063
12 Operating temperature -20~+40 °C
13 Humidity 20-85%
14 Certificate CE, RoHS, SAA,CB
15 Luminaires Class Ⅲ



Shenzhen Supplier outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warrantyShenzhen Supplier outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warranty

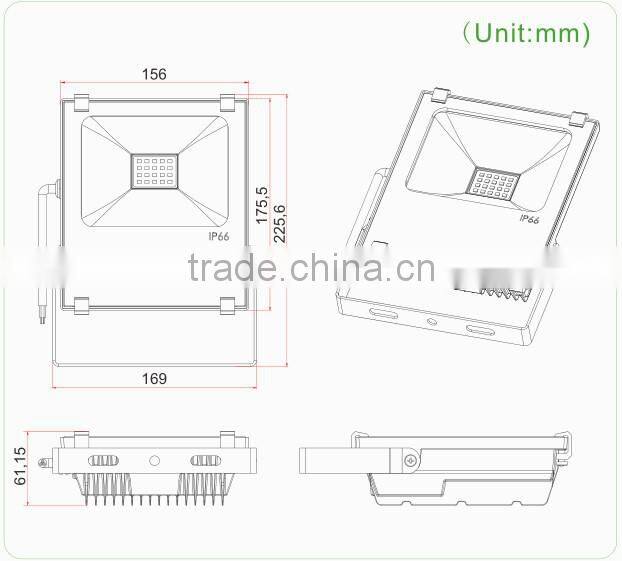

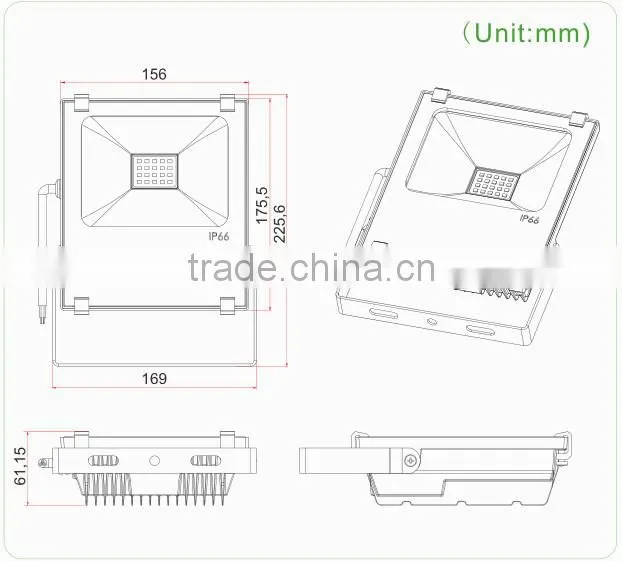

Deminision



Shenzhen Supplier outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warranty







 Installing

Shenzhen Supplier outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warranty

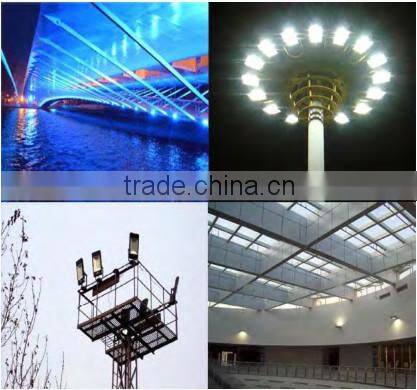

Application:

  1. BillBoard
  2. Road, Tunnel
  3. Bridges, Culverts
  4. Square, Building

Shenzhen Supplier outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warranty










Packaging & Shipping
Item Single Box Packing Carton Package
QTY/Box Box Size G.W. QTY/CTN Carton Size G.W. Volume Weight
FDL-G1-20W 1pc 223x116x285 mm 0.6kgs 10pcs 595x300x475mm 19kgs

 Shenzhen Supplier outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warranty


Our Services



1. Warranty terms:



5-year warranty since the date of purchase is offered for the High brightness Panel light from GLITTER.



1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the rights for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.



2. OEM Available:  Label design, Packing design available

3. Pre-sale and After sale service:

   LM79,LM80 test, IES Files available for lighting design:

Shenzhen Supplier outdoor led flood light 20 watt IP66, EMC3030,90lm/w, PF>0.95,ra>80,CB/GS/SAA, 5 years warranty


Company Information

    Production: SMT Machine, Soldering for fast production, Laser Machine for label printing

    Testing machine: Humidity&Temp test, Sphere, Photometer, EMC room, Ripple test machine



Certificate:

OEM,ODM available.

Customer Design Lables, Package available,

Welcome to contact me for More details about pricing, Packing, Shipment and Discount
