Home > Lights & Lighting > LED Interior Lighting > LED Tube > IP65 Freezer T8 Led Tube 1.2m 4ft 16W 100lm/W With Rotary and Lockable Ends CE RoHS TUV SAA C-tick CB

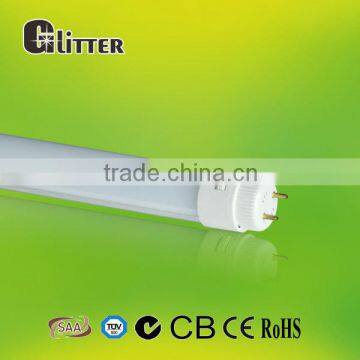

IP65 Freezer T8 Led Tube 1.2m 4ft 16W 100lm/W With Rotary and Lockable Ends CE RoHS TUV SAA C-tick CB

Shenzhen Glitter Optoelectronic Technology Co., Ltd.
IP65 Freezer T8 Led Tube 1.2m 4ft 16W 100lm/W With Rotary and Lockable Ends CE RoHS TUV SAA C-tick CB thumbnail-1
IP65 Freezer T8 Led Tube 1.2m 4ft 16W 100lm/W With Rotary and Lockable Ends CE RoHS TUV SAA C-tick CB photo-1
US$ 1 - 21 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Everlight 3528
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Everlight 3528
Warranty(Years) 3
Input Voltage(V) AC85-265V
Lamp Power(W) 16
Lamp Luminous Flux(lm) 1600 lm
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2800-6500k
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification CE, C-tick, EMC, GS, LVD, PSE, SAA
Brand Name Glitter
Model Number T8

Specifications

Approved by TUV, SAA, C-tick,CB,CE
Rotary and Lockable Caps,
Isolated Driver.Single-end Power Input Wiring with Led starter.


Product Description



Freezer/fridge Led tube Item No.:  T8-03-12-00

Features / Advantages :

  • High lighting efficiency: 100 lm/W with Everlight SMD3528.  110 lm/W with clear cover !!
  • TUV,SAA,CB,PSE approval
  • No rewiring. Single-end power supply with Led starter.
  • Isolated driver, 3years warranty.



IP65 Freezer T8 Led tube 1.2m 4ft 16W 100lm/W with rotary and lockable ends CE RoHS TUV SAA C-tick CB





Data Sheet:



Item No.

T8-03-12-00

Dimension

1198x 26mm (4FT)

Power

16W

Voltage

AC85V - 265V 50/60HZ

LED Type

SMD3528

LED Quantity

204 pcs

Luminous Flux

1600 lm



Color Temperature (CCT)

2800 -3500K,

4000 - 4500K,

5500 - 6500K

Beam Angle

140° -180°

Color Rendering Index (CRI)

Ra 75

Power Supply Efficiency

>90%

LED Luminous Efficiency

≥100 lm/W

Power Factor (PF)

>0.95

IP Rank

IP 65

Certificate

TUV,SAA,C-TICK,CB,PSE



Photometric data( 110 lm/W with clear cover ):



IP65 Freezer T8 Led tube 1.2m 4ft 16W 100lm/W with rotary and lockable ends CE RoHS TUV SAA C-tick CB





 Installation:



IP65 Freezer T8 Led tube 1.2m 4ft 16W 100lm/W with rotary and lockable ends CE RoHS TUV SAA C-tick CB

Application



Refrigerator

Supermarket










Packaging & Shipping



Packing Information:



1. 50 CM T8

25 pcs/Carton, Carton size (LxWxH): 495*218*220mm, G.W.: 6.70 kgs/Carton, With Fragile Mark outside.

2. 60 CM T8

25 pcs/Carton, Carton size (LxWxH): 645*218*220mm, G.W.:  9.0 kgs/Carton, With Fragile Mark outside.

3. 90 CM T8

25 pcs/Carton, Carton size (LxWxH): 945*218*220mm, G.W.: 12.0 kgs/Carton, With Fragile Mark outside.

4. 120 CM T8

25 pcs/Carton, Carton size (LxWxH): 1245*218*220mm, G.W.:15.0 kgs/Carton, With Fragile Mark outside.

5. 150 CM T8

25 pcs/Carton, Carton size (LxWxH): 1545*218*220mm, G.W.: 20.0 kgs/Carton, With Fragile Mark outside.

6. 180 CM T8

25 pcs/Carton, Carton size (LxWxH): 1845*218*220mm, G.W.: 24.0 kgs/Carton, With Fragile Mark outside.

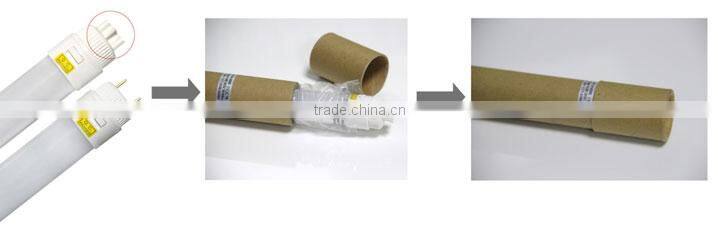

 IP65 Freezer T8 Led tube 1.2m 4ft 16W 100lm/W with rotary and lockable ends CE RoHS TUV SAA C-tick CB


Our Services



1. Distributor Service

2. OEM Service

3. ODM Service

4. Aftersale Service

5. Customized Service

6. Package Design Service


Company Information



Glitter integrate R & D, manufacturer, sales, and services of LED Tube Light, LED Downlight, LED Panel Light, LED Emergency Driver etc. We were founded in 2007 with our own brand design and OEM business. We integrate R & D, manufacturer, sales, and services of LED Tube Light, LED Downlight, LED Panel Light, LED Emergency Driver etc. We have a large and strong cooperation group and 3000 square meters factory in Shenzhen, China.

IP65 Freezer T8 Led tube 1.2m 4ft 16W 100lm/W with rotary and lockable ends CE RoHS TUV SAA C-tick CBIP65 Freezer T8 Led tube 1.2m 4ft 16W 100lm/W with rotary and lockable ends CE RoHS TUV SAA C-tick CB


FAQ



1. How to purchase our goods?

A. Sending us an email with your request, (part number, color, quantity, etc), we will send you price list or PI with delivery cost for confirmation.

B. Once you confirmed every details of the PI, you can sign back to us and wire the payment, once we get the bank bill, will arrange the production.

C. It will take days for production for different kinds of products; we will send the goods to our clients by appointed shipping method.
