Specifications
Backlit led ceiling panel light 120lm/wItalian design LED panel light
TUV , ERP , SAA , CB,CE certificate
0-10V

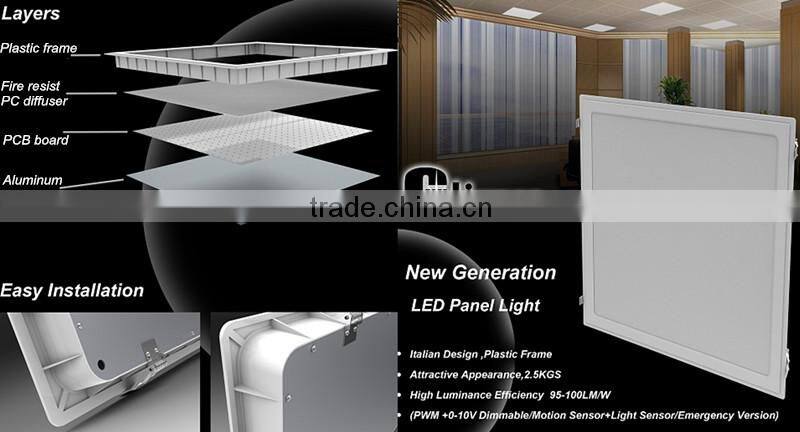

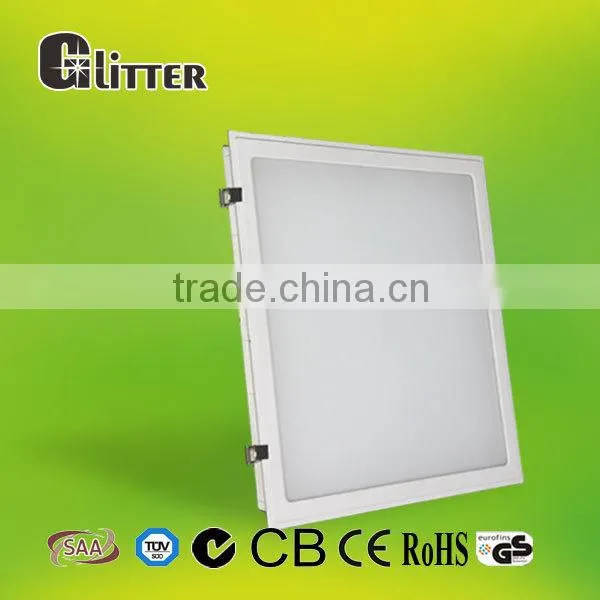

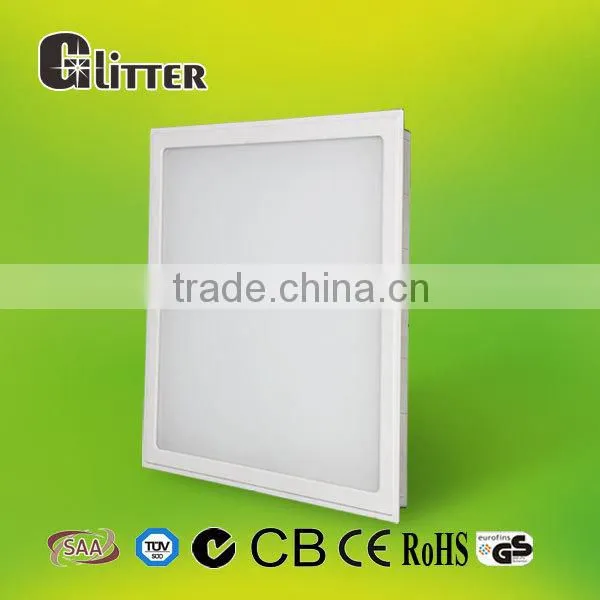

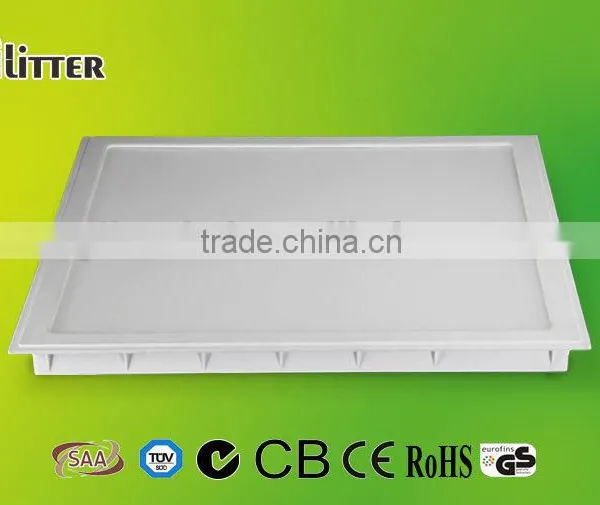

Backlit led ceiling panel light 120lm/w

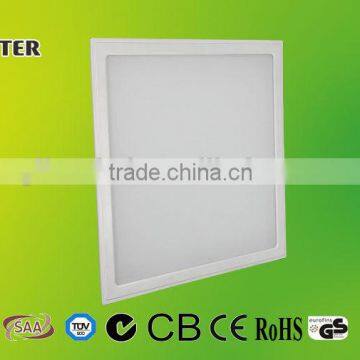

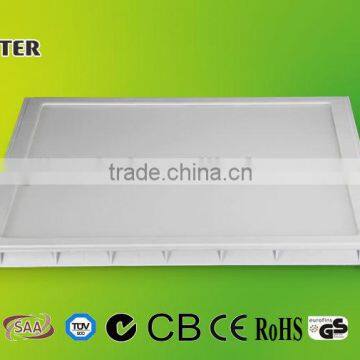

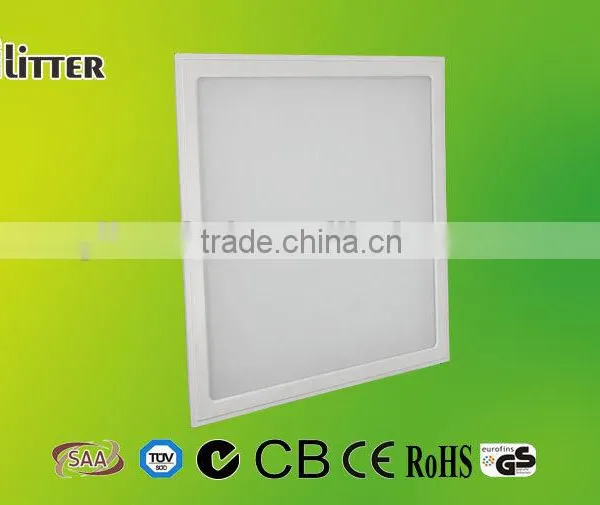

Italian design LED panel light 595x595 mm , only 2.5kg ( 95-100lm/W with TUV , SAA , CB , GS , ERP )
- Easier installation for more kinds of ceiling
- Less weight : only 2.5KG for 625x625 mm LED panel
- Higher lighting efficiency: 95-100lm/W
- With GS , CB , SAA , ERP , TUV
1). Technical parameter
Item No. | PL-0606- 4504 | |
Dimension | 625x625x43mm | |
Voltage | AC85V-265V 50/60HZ | |
Power | 45W | |
LED Type | SMD3014 | |
LED Quantity | 484pcs | |
Luminous Flux | Warm white | 3900lm |
| Neutral white | 4000lm | |
| Pure white | 4300lm | |
Color Temperature (CCT) | Warm white | 2800-3500K |
| Neutral white | 3800-4500K | |
| Pure white | 5500- 6500K | |
Beam Angle | 120° | |
Color Rendering Index (CRI) | >80 | |
Power Supply Efficiency | >90% | |
Luminous Efficiency | Up to 100lm/W | |
Power Factor (PF) | >0.95 | |
Total Harmonic Distortion (THD) | ≤15% | |
IP Rank | IP 50 | |
Net Weight | 2.50 Kgs | |
Certificate | CE, ERP , SAA , TUV, CB , GS | |
Application :
· Offices
· Kitchens
· Bathrooms
· Library
· Department Store & Boutiques
· Restaurant & Cafeteria
· Conference Rooms
· Hospital & Laboratory

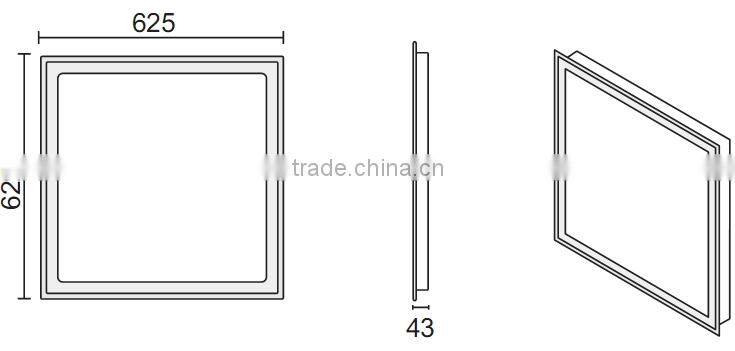

Dimension (Unit: mm)
Installation :
Warning: Before installation, please make sure the power is turned off .

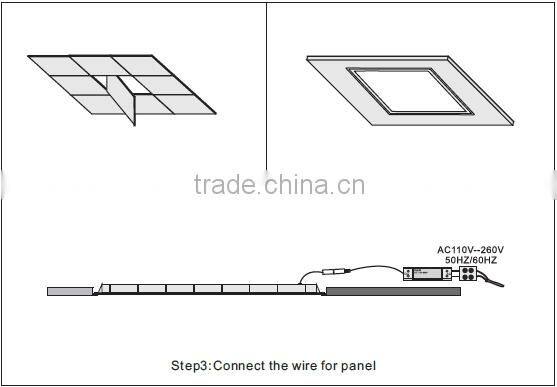

A: A. The standard False Ceiling Installation

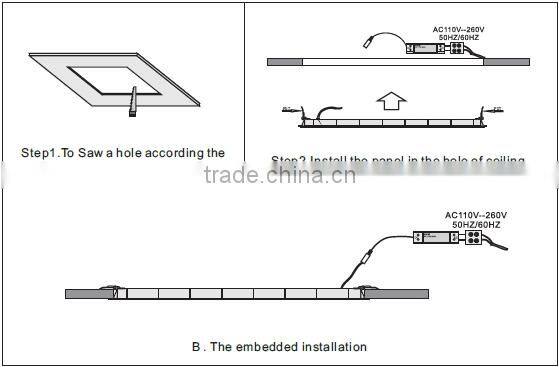

B: The embedded installation :

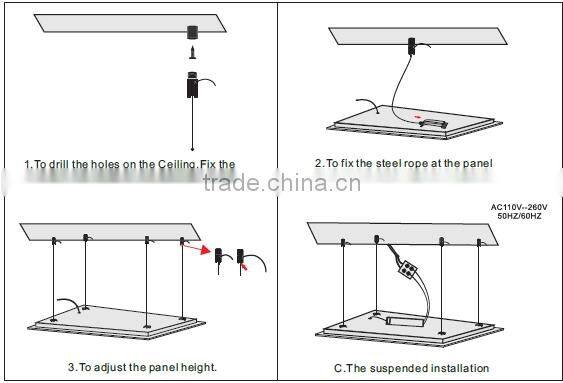

C: The suspended installation
Packing information for LED panel light 60x60 :
Material | QTY/CTN | Carton Size | G.W. | Net Weight |
Carton | 2pcs | 680*680*200mm | 7kgs | 5 kgs |

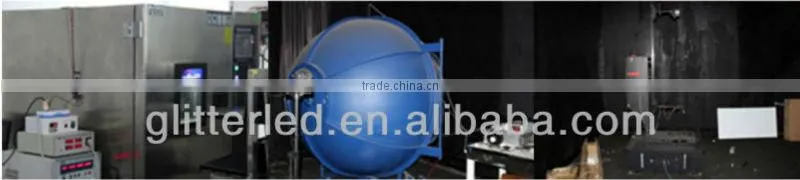

Equipment :
