TUV CB SAA C-TICK Approved 1200mm IP65 16W 100lm/W Cooler Use t8 Led Tube 1200mm

Shenzhen Glitter Optoelectronic Technology Co., Ltd.
TUV CB SAA C-TICK Approved 1200mm IP65 16W 100lm/W Cooler Use t8 Led Tube 1200mm thumbnail-1
TUV CB SAA C-TICK Approved 1200mm IP65 16W 100lm/W Cooler Use t8 Led Tube 1200mm photo-1
US$ 10 - 21 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Everlight SMD3528
Surface Treatment:
Other, Aluminum+PC
Input Voltage(V):
AC85-265V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Everlight SMD3528
Surface Treatment Other, Aluminum+PC
Input Voltage(V) AC85-265V
Lamp Power(W) 16
Lamp Luminous Flux(lm) 1600
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2700-6500K
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
IP Rating IP65
Certification CE, C-tick, EMC, GS, LVD, PSE, SAA
Base Type G13
Brand Name Glitter
Model Number T8-03-12-00

Specifications

Approved by TUV,SAA,C-tick,CB
Anti-fog and moisture-proof.
Isolated Driver.Single-end Power Input, with Led starter.

Freezer/fridge Led tube Item No.:  T8-03-12-00

Features / Advantages :

  • High lighting efficiency: 100 lm/W with Everlight SMD3528.  110 lm/W with clear cover !!
  • TUV,SAA,CB,PSE approval
  • No rewiring. Single-end power supply with Led starter.
  • All components under special treatment, works well in temperatures between -40°C-40°C
  • Isolated driver, 3years warranty.



TUV CB SAA C-TICK approved 1200mm IP65 16W 100lm/W cooler use t8 led tube 1200mm

 TUV CB SAA C-TICK approved 1200mm IP65 16W 100lm/W cooler use t8 led tube 1200mm



Data Sheet:



Item No.

T8-03-12-00

Dimension

1198x 26mm (4FT)

Power

16W

Voltage

AC85V - 265V 50/60HZ

LED Type

SMD3528

LED Quantity

204 pcs

Luminous Flux

1600 lm



Color Temperature (CCT)

2800-3500K,

4000-4500K,

5500-6500K

Beam Angle

140° -180°

Color Rendering Index (CRI)

Ra 75

Power Supply Efficiency

>90%

LED Luminous Efficiency

≥100 lm/W

Power Factor (PF)

>0.95

IP Rank

IP 65

Certificate

TUV,SAA,C-TICK,CB,PSE

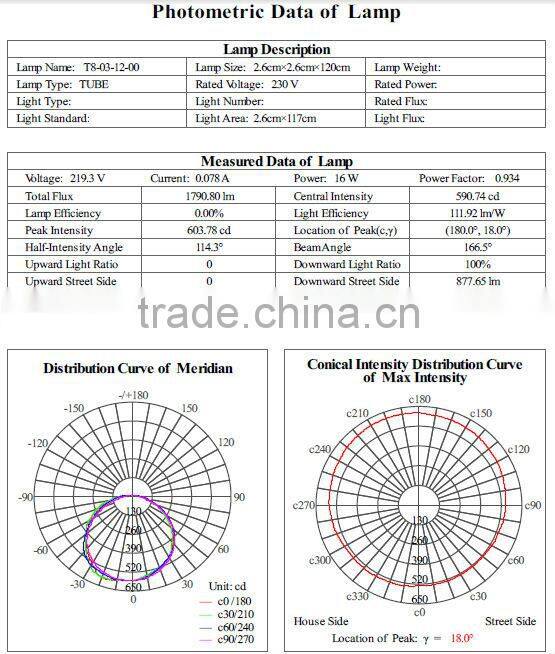

Photometric data( 110 lm/W with clear cover ):



TUV CB SAA C-TICK approved 1200mm IP65 16W 100lm/W cooler use t8 led tube 1200mm





 Installation:



TUV CB SAA C-TICK approved 1200mm IP65 16W 100lm/W cooler use t8 led tube 1200mm

Application



Refrigerator

Supermarket

refrigerated storage





Packing Information:



1. 50 CM T8

25 pcs/Carton, Carton size (LxWxH): 495*218*220mm, G.W.: 6.70 kgs/Carton, With Fragile Mark outside.

2. 60 CM T8

25 pcs/Carton, Carton size (LxWxH): 645*218*220mm, G.W.:  9.0 kgs/Carton, With Fragile Mark outside.

3. 90 CM T8

25 pcs/Carton, Carton size (LxWxH): 945*218*220mm, G.W.: 12.0 kgs/Carton, With Fragile Mark outside.

4. 120 CM T8

25 pcs/Carton, Carton size (LxWxH): 1245*218*220mm, G.W.:15.0 kgs/Carton, With Fragile Mark outside.

5. 150 CM T8

25 pcs/Carton, Carton size (LxWxH): 1545*218*220mm, G.W.: 20.0 kgs/Carton, With Fragile Mark outside.

6. 180 CM T8

25 pcs/Carton, Carton size (LxWxH): 1845*218*220mm, G.W.: 24.0 kgs/Carton, With Fragile Mark outside.
