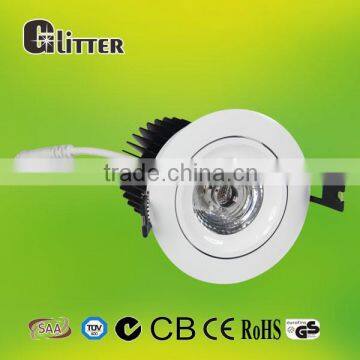

15W Hot Sale Cob Led Downlight,led Spot Downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB Approved,50000 Hrs Lifespan

15W Hot Sale Cob Led Downlight,led Spot Downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB Approved,50000 Hrs Lifespan thumbnail-1
15W Hot Sale Cob Led Downlight,led Spot Downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB Approved,50000 Hrs Lifespan thumbnail-2
15W Hot Sale Cob Led Downlight,led Spot Downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB Approved,50000 Hrs Lifespan thumbnail-3
15W Hot Sale Cob Led Downlight,led Spot Downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB Approved,50000 Hrs Lifespan photo-1
15W Hot Sale Cob Led Downlight,led Spot Downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB Approved,50000 Hrs Lifespan photo-2
15W Hot Sale Cob Led Downlight,led Spot Downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB Approved,50000 Hrs Lifespan photo-3
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Sharp COB1215
Warranty(Years):
5
Input Voltage(V):
85-265v
Contact Supplier Request Quote Chat Now
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Sharp COB1215
Warranty(Years) 5
Input Voltage(V) 85-265v
Lamp Power(W) 15
Lamp Luminous Flux(lm) 1200
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50.000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification C-tick, GS, PSE, SAA
Model Number DL-C2-15W
Place of Origin Guangdong, China
Brand Name Glitter

Specifications

1.hot sale cob led downlight
2. Sharp COB, Fire Rated
3.SAA/C-Tick/CE/CB
4. 80 lm/w, CRI>85
5.5 Years warranty

15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan



Feature:



(1)1070 AL Housing

(2) Cold Forging Heat Dissipation Tech

(3) Thermal Conductivity:2.6

(4) Unique Lens Just For Perfect Replacement Of Haloge

(5) SHARP COB

(6) Adjustable light angel

(7) Fire-Proof, Vo Class

(8) Isolated Driver, CB,GS,SAA approval

15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan



Dimension(Unit:mm)
15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan

Technical Specification:

1: Electronical Data

No. Item Description
1 Dimension Ø96x90mm
2 Construction Hole Size Ø85mm
3 Voltage AC85-265V
4 Current Frequency 50/60 Hz
5 Power 15W
6 LED Type & Qty 1pcs COB1215
7 Beam Angle 15 25 35 60 degree
8 Color Temp. Warm white 3000K
Neutral white 4000K
Cool white 5000K
9 Lumen Warm white >800lm
Neutral white >1000lm
Cool white >1200lm
10 Color Rendering Index >80
11 Material The acrylic lens, Housing:Aluminum 1070
12 Operating temperature -20~+50 °C
13 Humidity 20-85%
14 Certificate CE, RoHS, SAA, TUV
15 Luminaires Class Ⅲ


2: Light Distribution Curve & Max CD Distribution Curve

15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan

3. Illumination Diameter

15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan

15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan

Packing Information:

Item    Single Box Packing      Carton Package
  QTY/Box Box Size G.W. QTY/CTN Carton Size G.W. Volume Weight
DL-C2-15W 1pcs 160*105*130mm 0.50KG 40pcs 710*300*440mm 15.85kg 16.75kg


Safety Assurance:

1. Insulation Resistance
The IR shall be at least 50MΩ when apply 500Vdc between primary and secondary

2. Dielectric Strength (Hi-pot)
Input To Output 3750Vac 60Hz 1minute ≤3MA
When AC voltage of 3.75KV is applied, and the voltage applied to the insulation under test is gradually raised from zero to the prescribed voltage in 1s, and held at that value for 60s
between the inputs.and output and between the input and housing, the current sensitivity shall be le ss than 5mA. After this test, the adapter shall exhibit no electrical and mechanical
abnormalities.

3. Leakage Current
The leakage current shall be less than 0.25m A for class II when power supply is operate maximum input voltage and maximum load.

4. Safety Standard
IEC:60598-1:2008
EN60598-1/A11:2009
IEC61347-1/A1:2010
EN61347-2-13:2006
IEC61347-2-13:2006
EN61347-1/A1:2011
IEC62031:2008
EN62031:2008
IEC62471:2006 IEC62471-2:2009 Passed:
EN62471:2008 EN61195:1999 EN62493:2010: Passed

5. EMI/EMS Standard
EN55015: Passed
EN61000-3-2: Passed
EN61000-4-2: Passed



Application :

Hotels, Display, Shopping Mall,Gym, Underground Parking,Corridors, Exhibitions, Clubs.
Family illumination and other indoor lighting.



15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan



Certificates:

15W hot sale cob led downlight,led spot downlight,Sharp LED,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved,50000 hrs lifespan





Ageing Test(18-24 hours):


Warranty

5-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.



Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the rights for final explanation of aforesaid terms.



Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.



Service:
     1. Your inquiry related to our products or prices will be replied in 24hours.
         2. Well-trained and experienced staffs to answer all your enquires influent English.
         3. OEM & ODM are welcomed, OEM brand is available.
         4. Distributor ship is offered for your unique desigh and some our current models.
         5. Protection of your sales area, ideas of design and all your private information.



 About us:
      We are LED lighting factory and have 7 years experience of development and

         production, our main product are: LED Back-lit panel lights, LED Tube lights, LED downlight

       LED Emergency driver,LED Tri-proof light,LED Ceiling light etc.
