Home > Lights & Lighting > LED Interior Lighting > LED Down Light > 2014 Hot New Style LED Downlight COB 15W ( Thermal Conductivity: 2.6 , Brand COB1215 : CRI85 100lm/w)

2014 Hot New Style LED Downlight COB 15W ( Thermal Conductivity: 2.6 , Brand COB1215 : CRI85 100lm/w)

2014 Hot New Style LED Downlight COB 15W ( Thermal Conductivity: 2.6 , Brand COB1215 : CRI85 100lm/w) thumbnail-1
2014 Hot New Style LED Downlight COB 15W ( Thermal Conductivity: 2.6 , Brand COB1215 : CRI85 100lm/w) thumbnail-2
2014 Hot New Style LED Downlight COB 15W ( Thermal Conductivity: 2.6 , Brand COB1215 : CRI85 100lm/w) thumbnail-3

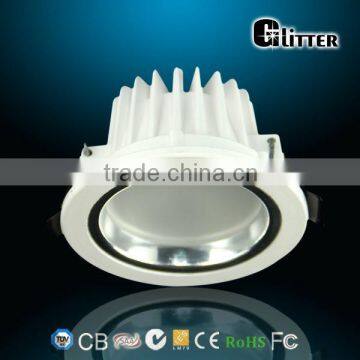

2014 Hot New Style LED Downlight COB 15W ( Thermal Conductivity: 2.6 , Brand COB1215 : CRI85 100lm/w) photo-1

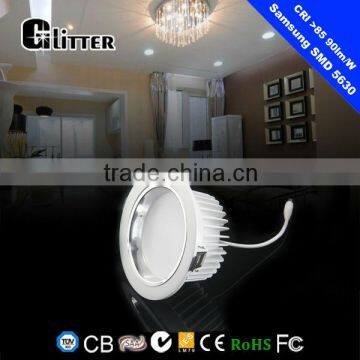

2014 Hot New Style LED Downlight COB 15W ( Thermal Conductivity: 2.6 , Brand COB1215 : CRI85 100lm/w) photo-2
2014 Hot New Style LED Downlight COB 15W ( Thermal Conductivity: 2.6 , Brand COB1215 : CRI85 100lm/w) photo-3
US$ 24 - 27 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
brand COB1215
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Contact Supplier Request Quote Chat Now
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source brand COB1215
Warranty(Years) 3
Input Voltage(V) AC85-265V
Lamp Power(W) 15
Lamp Luminous Flux(lm) 1250
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Warm White
Working Temperature(℃) -30, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP33
Certification CE, EMC, GS, LVD, SAA
Model Number CL-C2-15W
Place of Origin Guangdong, China
Brand Name Glitter

Specifications

2014 Hot new style LED Downlight COB 15W
1.Sharp COB1215 , CRI85
2.Isolated Driver,CB,GS,SAA
3.Thermal conductivity 2.6

Adjustable  2014 Hot new style LED Downlight COB 15W , Brand COB1215 LEDs , Own designed LED driver , SAA,GS,CB
(V0-class Fire-Proof , 100lm/W, CRI85 , Thermal conductivity: 2.6)


Products features :

* Cold Forging Heat Dissapation, Thermal conductivity: 2.6

* 1070 Aluminum Housing, V0 Fire-proof

*  GS,SAA,CB certified LED Driver ( Own designed , better compatability )

*  Unique Lens Just For Perfect Replacement Of Halogen

*  Sharp COB1215 , CRI>85 , 80lm/W


Application :

Hotels, Display, Shopping Mall,Gym, Underground Parking,Corridors, Exhibitions, Clubs.
Family illumination and other indoor lighting.

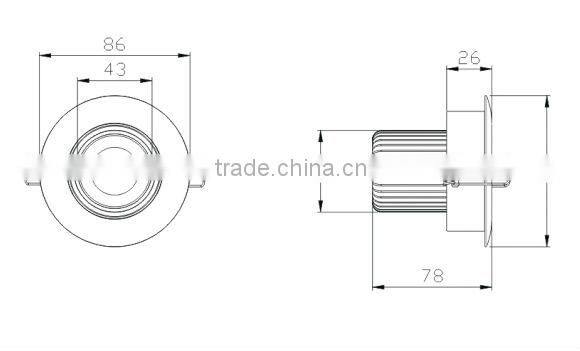

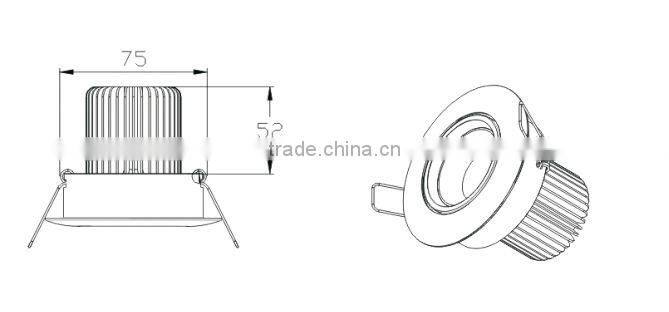

Dimension(Unit:mm)

2014 Hot new style LED Downlight COB 15W ( Thermal conductivity: 2.6 , brand COB1215 : CRI85 100lm/w)
2014 Hot new style LED Downlight COB 15W ( Thermal conductivity: 2.6 , brand COB1215 : CRI85 100lm/w)

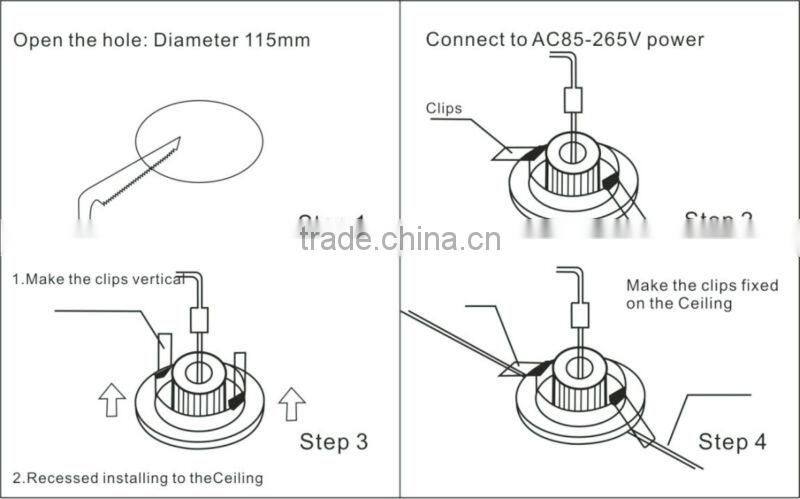

Installation:

2014 Hot new style LED Downlight COB 15W ( Thermal conductivity: 2.6 , brand COB1215 : CRI85 100lm/w)

Technical Specification

1:  Electronical Data

No. Item Description
1 Dimension Ø96x90mm
2 Construction Hole Size Ø85mm
3 Voltage AC85-265V
4 Current Frequency 50/60 Hz
5 Power 15W
6 LED Type & Qty 1pcs COB1215
7 Beam Angle 15 25 35 60 degree
8 Color Temp. Warm white 3000K
Neutral white 4000K
Cool white 5000K
9 Lumen Warm white 1100lm
Neutral white 1150lm
Cool white 1200lm
10 Color Rendering Index >85
11 Material The acrylic lens, Housing:Aluminum 1070
12 Operating temperature -20~+50 °C
13 Humidity 20-85%
14 Certificate CE, RoHS, SAA, TUV
15 Luminaires Class Ⅲ



Packing Information:

Item Single Box Packing Carton Package
QTY/Box Box Size G.W. QTY/CTN Carton Size G.W. Volume Weight
CL-C1-15W 1pc 135x135x100 mm 0.45kg 40pcs 710x300x440 mm 17.85kg

18.75kg



2014 Hot new style LED Downlight COB 15W ( Thermal conductivity: 2.6 , brand COB1215 : CRI85 100lm/w)



Certification :

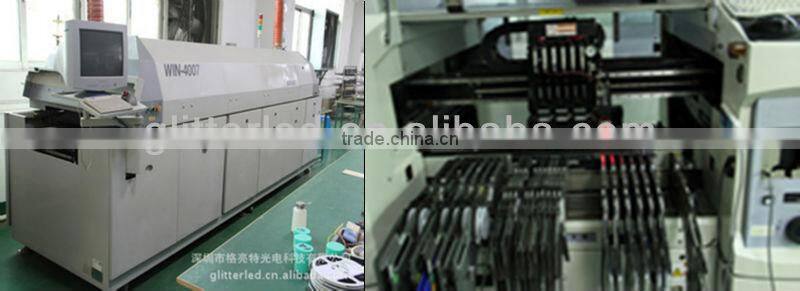

Equipment :



2014 Hot new style LED Downlight COB 15W ( Thermal conductivity: 2.6 , brand COB1215 : CRI85 100lm/w)



Warranty :

3-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the rights for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.
