Home > Products > COB Downlight > High quality 10W fire-rated COB downlight 70% money saving LED COB Downlight with emergency function optional LED COB Downlight
High quality 10W fire-rated COB downlight 70% money saving LED COB Downlight with emergency function optional LED COB Downlight
USD $14.5 - $17
/ Piece
5 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
cool white 10W fire-rated COB downlight super energy saving LED COB Downlight with emergency function optional LED COB Downlight
-
Better dissipation fire-proof 20w SHARP COB1215 led downlight lamp cutout 105mm Ra>85 CE RoHS SAA C-TICK approval
-
High level Aluminum shell Fire-Rated 10W COB downlight CRI 80 10W COB Downlight for hospital lighting with SAA CE
-
Hot sale SHARP COB1215 led ceiling downlight cutout 105mm Ra>85 CE RoHS SAA C-TICK approval
-
1070 AL housing fire-resistance 20w SHARP COB1215 ceiling led downlight lamp cutout 105mm Ra>85 CE RoHS SAA C-TICK approval
-
1070 AL housing energy saving 20w SHARP COB1215 ceiling led downlight lamp cutout 105mm Ra>85 CE RoHS SAA C-TICK approval
Product Details
| LED Light Source | Sharp COB1215 | Warranty(Years) | 5 | |
| Input Voltage(V) | 85-265 | Lamp Power(W) | 10 | |
| Lamp Luminous Flux(lm) | 800 | Lamp Luminous Efficiency(lm/w) | 75 | |
| Color Temperature(CCT) | Other, 2700K-7000K | Working Temperature(℃) | -20, 20 | |
| Working Lifetime(Hour) | 40000 | Lamp Body Material | Aluminum | |
| IP Rating | IP44 | Certification | CE, C-tick, PSE, SAA | |
| Model Number | SHARP COB Downlight CL-C1-10W | Place of Origin | Guangdong, China | |
| Brand Name | GLITTER |
Product Description
Specifications
Advantages COB Downlight Series* 1070 AL Housing,SHARP COB
* Adjustable light angel,Fire-Proof
* DriverCB,GS,SAA approval
Product Description
high quality 10W fire-rated LED COB Downlight with emergency function optional LED COB Downlight
Products Information

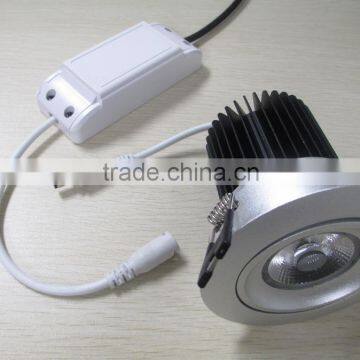

SHARP COB Downlight CL-C1-10W
Feature:
GLITTER COB LED Ceiling Lamp use COB1215 as the light source and aluminum alloy for the shell.
The external cover is oxidation brushed finishing and high -polished,which can ensure the outstanding performance of Heat Dissipation but also with elegant appearance.
Meanwhile, the main features include low heat,lower power consumption, energy saving, long lifespan etc.
White, Warm white and Cool white are available.
It is easy to install and use with external LED transformer.
Application
Hotels, Display, Shopping Mall,Gym, Underground Parking,Corridors, Exhibitions, Clubs.
Family illumination and other indoor lighting.
,
Dimension(Unit:mm)
Technical Specification
1: Electronical Data
| No. | Item | Description | |
| 1 | Dimension | Ø86x78mm | |
| 2 | Construction Hole Size | Ø75mm | |
| 3 | Voltage | AC85-265V | |
| 4 | Current Frequency | 50/60 Hz | |
| 5 | Power | 10W | |
| 6 | LED Type & Qty | 1pcs COB1215 | |
| 7 | Beam Angle | 15 25 35 60 degree | |
| 8 | Color Temp. | Warm white | 3000K |
| Neutral white | 4000K | ||
| Cool white | 5000K | ||
| 9 | Lumen | Warm white | >750lm |
| Neutral white | >750lm | ||
| Cool white | >800lm | ||
| 10 | Color Rendering Index | >80 | |
| 11 | Material | The acrylic lens, Housing:Aluminum 1070 | |
| 12 | Operating temperature | -20~+50 °C | |
| 13 | Humidity | 20-85% | |
| 14 | Certificate | CE, RoHS, SAA, TUV | |
| 15 | Luminaires Class | Ⅲ | |
2: Light Distribution Curve & Max CD Distribution Curve
3. Illumination Diameter
Packing Information:
| Item | Single Box Packing | Carton Package | |||||
| QTY/Box | Box Size | G.W. | QTY/CTN | Carton Size | G.W. | Volume Weight | |
| CL-C1-10W | 1pc | 135x135x100 mm | 0.45kg | 40pcs | 710x300x440 mm | 17.85kg | 18.75kg |
Safety Assurance:
1. Insulation Resistance
The IR shall be at least 50MΩ when apply 500Vdc between primary and secondary
2. Dielectric Strength (Hi-pot)
Input To Output 3750Vac 60Hz 1minute ≤3MA
When AC voltage of 3.75KV is applied, and the voltage applied to the insulation under test is gradually raised from zero to the prescribed voltage in 1s, and held at that value for 60s
between the inputs.and output and between the input and housing, the current sensitivity shall be le ss than 5mA. After this test, the adapter shall exhibit no electrical and mechanical
abnormalities.
3. Leakage Current
The leakage current shall be less than 0.25m A for class II when power supply is operate maximum input voltage and maximum load.
4. Safety Standard
IEC:60598-1:2008
EN60598-1/A11:2009
IEC61347-1/A1:2010
EN61347-2-13:2006
IEC61347-2-13:2006
EN61347-1/A1:2011
IEC62031:2008
EN62031:2008
IEC62471:2006 IEC62471-2:2009 Passed:
EN62471:2008 EN61195:1999 EN62493:2010: Passed
5. EMI/EMS Standard
EN55015: Passed
EN61000-3-2: Passed
EN61000-4-2: Passed
Warranty
5-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. GLITTER reserves the rights for final explanation of aforesaid terms.
Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.
