Item: Installation By Spring or Suspending Wire Feel confortable Square Led Panel Lighting
Detail Describe:
| Model | TED001SR31248W |
| Usage | Indoor Lighting ( room, office, factory, shopping more etc.) |
| Dimension | 295*1195*11mm |
| LED Chip | EPISTAR |
| LED | SMD2835 |
| Quantity | 240PCS |
| Power | 48W |
| CRI | >75 ( high CRI can custom-made) |
| Color Temperature | 3000K/ 4500K/ 6000K |
| Luminous Flux | 3360-3600Lm |
| Voltage | AC110-240V |
| Warranty | 2 years |
| Operating Temp. | -20-50 degree |
| Beam Angle | 120 degree |
| IP Rate | IP20 |
| Certification | CE, ROHS |
•Use 2835SMD LED as lighting resources,Panel size :300*1200mm;
•Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance;
•The light even effect and no dark area, efficacy > 60 LM/W;
•Isolation constant current power supply, input voltage:AC85-265V, output voltage: DC30-40V, security better;
•New high efficiency constant current driver increases the working life of LED. and also effectively reduce the brightness decline;
•No UV, IR, radiation and no flickering. People can feel peaceful and comfortable under the light;
•The led panel lamp is mainly used for meeting room, negotiation room, hotels and other indoor lighting places, etc.
Pictures:

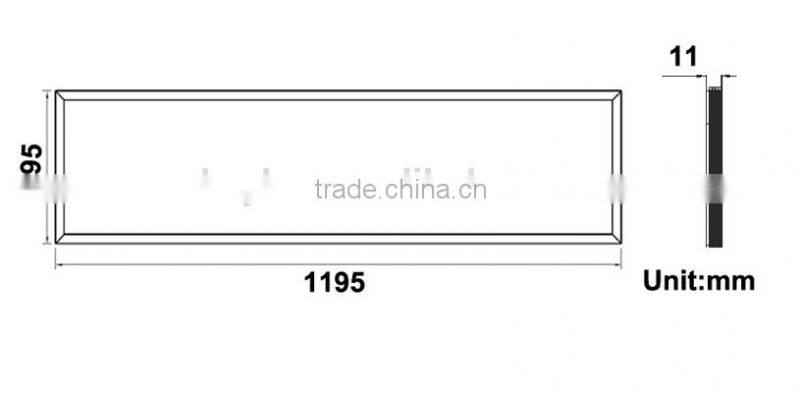

1. Drawing
2.
3.
4.
Shipping:
1. Production will be arranged within 3 days after payment received;
2. Delivery time: sample order 3-7 working days; Bulk order 7-10 working days;
3. You can choose to use our freight forwarder or your own shipping agent.
Packaging:
---Inside: Plastic/ Small Carton/ Foam for 4 corners
---Outside: Standard Carton package
