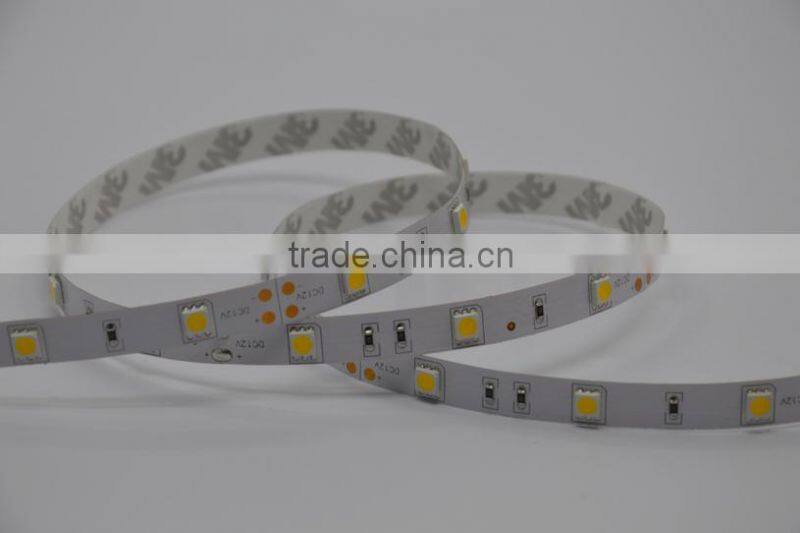

Double Side White PCB Various Colors Led Strip Rgb 5050

Double Side White PCB Various Colors Led Strip Rgb 5050 thumbnail-1
Double Side White PCB Various Colors Led Strip Rgb 5050 thumbnail-2
Double Side White PCB Various Colors Led Strip Rgb 5050 thumbnail-3
Double Side White PCB Various Colors Led Strip Rgb 5050 thumbnail-4
Double Side White PCB Various Colors Led Strip Rgb 5050 photo-1
Double Side White PCB Various Colors Led Strip Rgb 5050 photo-2
Double Side White PCB Various Colors Led Strip Rgb 5050 photo-3
Double Side White PCB Various Colors Led Strip Rgb 5050 photo-4
US$ 1 - 3 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
DC 12/ 24V
Contact Supplier Request Quote Chat Now
Shenzhen Keylux Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050
Type Flex LED Strips
Input Voltage(V) DC 12/ 24V
Lamp Power 7.2WATTS/Meter
Lamp Luminous Flux(lm) 350-400LM/Meter
Color Temperature(CCT) 3000/4000/6000K
Working Temperature(℃) -25, 50
Working Lifetime(Hour) 50000
Lamp Body Material Other, Aluminum PCB
Certification CE
Emitting Color Other, W/NW/WW
Place of Origin Guangdong, China
Brand Name KEYLUX
Model Number TED001FNA



Product Description

Item: Double Side White PCB Various Colors Led Strip Rgb 5050



Detail description:

Model TED001FNA
Feature RGB provided
Color White/ Netural White/ Warm White/ RGB/ Red/ Green/ Blue/ Yellow
LED SMD5050
Led Quantity 150LED/Roll
Power 7.2watts/ meter
Lm 350-400Lm/Meter
Input Volatage DC 12/24V
CRI >75
Width 10mm
Bean Angel 120 degree
PCB Type White PCB ( yellow and black available)
IP rate IP20 & IP65 & IP67 & IP68
Warranty 2 years
Meters/roll 5m/roll (10 or 25meters/roll available)
Lifespan 50,000 hrs
Certificate CE, ROHS





Technical Parameters

Double Side White PCB Various Colors Led Strip Rgb 5050Double Side White PCB Various Colors Led Strip Rgb 5050





Introduction

•5050 SMD Standard Flexible LED Strips Lights, 5M/Roll;
•LED : 30leds/meter & 60leds/meter ,13-17LM/LED;
•Working voltage: DC12V or DC24V ;
•Cuttable length: by every 3 leds ;
•Non-waterproof & IP65 Crystal Epoxy Waterproof( IP67 & IP68 check in our other model) ;
•With 3M adhesive tape back,easy for installation;
•Available Color: Red, Green, Blue, White, Warm White, Yellow, RGB;
•Working temperature and Storage temperature:-20℃ - 50℃.;
•Anti-oxidation, anti-UV radiation and won't change color after long time use;
•High flexibility ,flame-proof and environmental friendliness.





Detailed Images

Pictures:

1.

Double Side White PCB Various Colors Led Strip Rgb 5050



2.

Double Side White PCB Various Colors Led Strip Rgb 5050



3.

Double Side White PCB Various Colors Led Strip Rgb 5050



4.

Double Side White PCB Various Colors Led Strip Rgb 5050



5.

Double Side White PCB Various Colors Led Strip Rgb 5050





Packaging & Shipping

 Shipping:

1. Production will be arranged within 3 days after payment received;

2. Delivery time: sample order 3-5 working days; normal order 5-7 working days;

3. You can choose to use our freight forwarder or your own shipping agent.



Packaging:



---Inside: Anti Static Bag

---Outside: Standard Carton package
