Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip

Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip thumbnail-1
Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip thumbnail-2
Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip thumbnail-3
Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip photo-1
Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip photo-2
Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip photo-3
US$ 1 - 7 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
DC 12 / 24V
Contact Supplier Request Quote Chat Now
Shenzhen Keylux Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050
Type Flex LED Strips
Input Voltage(V) DC 12 / 24V
Lamp Power 28.8watts / meter
Lamp Luminous Flux(lm) 12-15Lm / LED
Color Temperature(CCT) White/ Netural White/ Warm White/ RGB/ Red/ Green/ Yellow
Working Temperature(℃) -25, 50
Working Lifetime(Hour) 50000
Lamp Body Material Other, Aluminum PCB
Certification CE
Emitting Color White
Place of Origin Guangdong, China
Brand Name KEYLUX
Model Number TED001F120



Product Description

Item: Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip



Detail description:

Model TED001F120
Feature Double-row
Color White/ Netural White/ Warm White/ RGB/ Red/ Green/ Blue/ Yellow
LED SMD5050
Led Quantity 600LED/ROLL
Power 28.8watts/ meter
Lm 12-15Lm/ LED
Input Volatage DC 12/ 24V
CRI >75
Width 16mm
Bean Angel 120 degree
PCB Type White PCB ( yellow and black available)
IP rate IP20 & IP65 & IP67 & IP68
Warranty 2 years
Meters/roll 5m/roll (10 or 25meters/roll available)
Lifespan 50,000 hrs
Certificate CE, ROHS

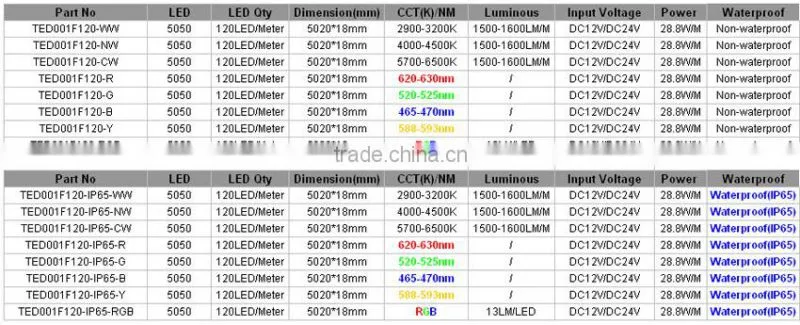

Technical Parameters

Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip





Introduction

•5050 SMD Standard Flexible LED Strips Lights, 5M/Roll;
•2 rows LED at 1 PCB sides ,120LED/meter, 13-17LM/LED;
•Working voltage: DC12V or DC24V ;
•Cuttable length: by every 6 leds ;
•Non-waterproof ( Waterproof check in our other model) ;
•With 3M adhesive tape back,easy for installation;
•Available Color: Red, Green, Blue, White, Warm White, Yellow, RGB;
•Working temperature and Storage temperature:-20℃ - 50℃.;
•Anti-oxidation, anti-UV radiation and won't change color after long time use;
•High flexibility ,flame-proof and environmental friendliness.





Detailed Images

Pictures:

1. 5050 Double-row

Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip





2.

Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip



3.

Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip



4.

Better Heat Dissipation SMD5050 120LED 28.8W Double Led Strip





Packaging & Shipping

 Shipping:

1. Production will be arranged within 3 days after payment received;

2. Delivery time: sample order 3-5 working days; normal order 5-7 working days;

3. You can choose to use our freight forwarder or your own shipping agent.



Packaging:



---Inside: Anti Static Bag

---Outside: Standard Carton package

Better Heat Dissipation SMD5050 120LED 28.8W Double Led StripBetter Heat Dissipation SMD5050 120LED 28.8W Double Led StripBetter Heat Dissipation SMD5050 120LED 28.8W Double Led StripBetter Heat Dissipation SMD5050 120LED 28.8W Double Led StripBetter Heat Dissipation SMD5050 120LED 28.8W Double Led StripBetter Heat Dissipation SMD5050 120LED 28.8W Double Led Strip
