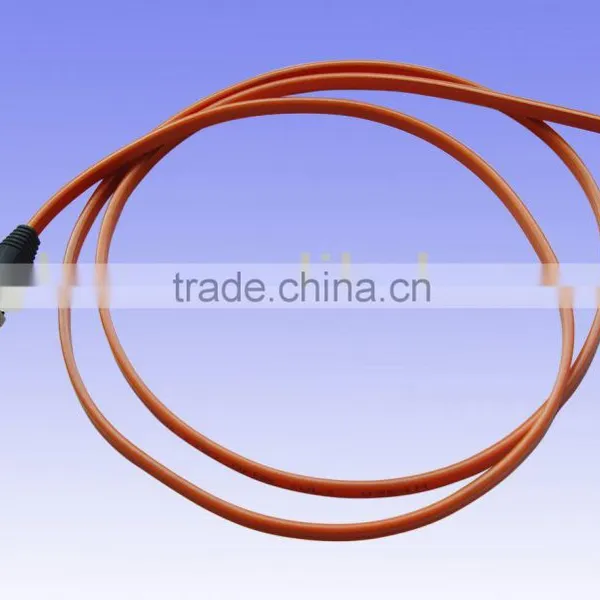

Optical Fiber Pigtail MPO
- 6000 Piece / Pieces per Month
- Ningbo / Shanghai
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Jingkon |
Product Description
Specifications
Optical Fiber Pigtail MPO.Insertion Loss low 0.20 dB;
Return loss low -50 dB;
Fiber Type:9/125 Corning fiber.
Optical Fiber Pigtail MPO
Fiber Type : 62.5/125(OM1) 50/125 (OM2) 10GIG(OM3)
Operating Wavelength: 850 nm
Connector Type Polishing : SC/UPC LC/UPC D4 DIN ST/UPC MU E2000/UPC SMA ESCON MTRJ
Fiber Cable Jacket Type: PVC /LSZH Simplex/ Duplex 3.0mm/ 2.0mm/0.9mm
Insertion loss ≤0.20dB,
Radius of curvature nm 10 ≤ r ≥25
Curvature eccentricity um <50
Fiber core undercut nm <50
Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion
Repetitiveness (dB): Insertion loss change< 0.1,Return loss change< 5
Insert & pull out : Max: 2KG
Tensile strength dB 0- 10KG per minutes
Fully tested cables to ensure superior quality and durability
RoHS Compliant
Features:
Low insert loss; Good repeatability; Good changeability; Good temperature stabilization.
Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating test < 0.1.
Condition Features: High temperature < 0.2; Low temperature < 0.2.
Use:
Applied in optical fiber communications system, fiber optic data transmission, LAN, optical fiver sensors and optical CATV.
