Specifications
*D4/UPC,SM Optical Fiber Jumper*SC/FC/LC/ST/E2000
*APC/UPC,Simplex/Duplex Optic fiber patch cord
*RoHS,ISO9001,TLC

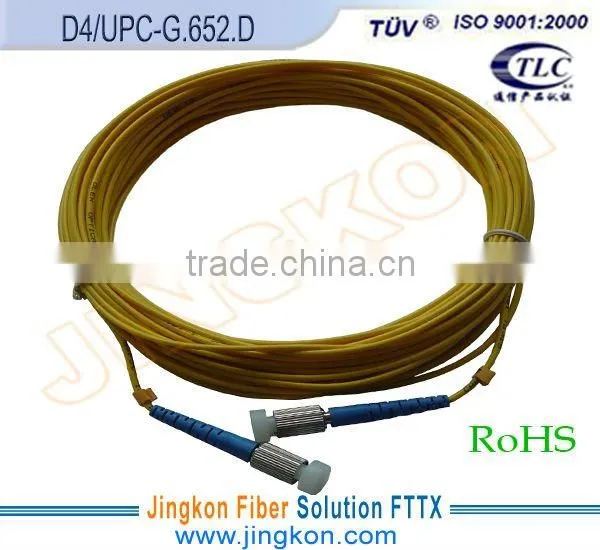

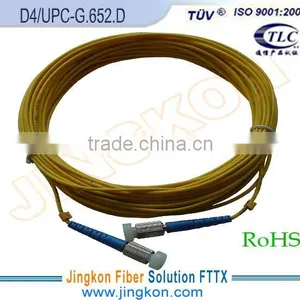

D4 Fiber optic patch cord
Fiber Type : OS1 9/125 Corning fiber Operating Wavelength: 1310 nm
Connector Type Polishing : SC/UPC SC/APC LC/UPC LC/APC D4 MU DIN ST/UPC E2000/UPC E2000/APC SMA ESCON MTRJ
Fiber Cable Jacket Type: PVC /LSZH Simplex/ Duplex 3.0mm/ 2.0mm/0.9mm
Insertion loss <0.20dB,
Return loss UPC>50 dB, APC>60 dB
Radius of curvature nm 10 < r >25
Curvature eccentricity um <50
Fiber core undercut nm <50
Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion
Repetitiveness (dB): Insertion loss change< 0.1, Return loss change< 5
Insert & pull out : Max: 2KG
Tensile strength dB 0- 10KG per minutes
Producing Line:
*80% of our workers with over 6 experience to make sure 100% strict quality control.
*Daily capacity 5,000 pieces of simplex patch cord.
Patch cord Package:
*100% patch cord test, 12 months quality gurantee.
*PVC Plastic Bag(18*25 mm) with a test report.
*White Carton(40*40*10.5 mm) then into ourter Carton(42*42*44 mm)
*For Ocean Shipment, we do pallet for better goods protection duirng transportation.
Certificated Approval:
*RoHS,TLC,ISO9001 compliant
*Meet IEC,Telcordia GR-326-Core standard
