Specifications

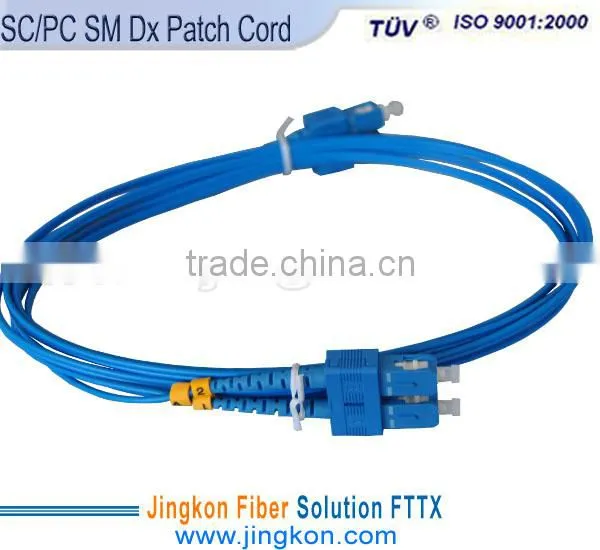

SC fiber optic jumper cordHight Quality corning fiber
Insertion loss<0.2dB
sc sx sm fiber optic patch cord
Housing:High Quality Plastic
Exactitude size
Repeat kind
Boot Diameter:0.9 2.0 2.4 3.0
Boot colour: Red Green Blue ,White ,Black ,Gray .
Ferrule:Zirconia
Outer diameter: 1.2490+(-)0.0005mm
Inner diameter: 0.125+0.001/-0mm
Concentricity: ≤1.0um
Good compatibility
Accurate mechanical dimensions,
Good reliability and stability,
RoHS Compliant
Certificate:
Parameter:
Features:
Low insert loss; Good repeatability; Good changeability; Good temperature stabilization.
Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating test < 0.1.
Condition Features: High temperature < 0.2; Low temperature < 0.2.
Use: Applied in optical fiber communications system, fiber optic data transmission, LAN, optical fiver sensors and optical CATV.
fiber optical cable
| FIBER PATCH CABLE | |||
Item NO. |
Test Item |
Unit |
Standard & Requirement |
1 |
Appearance |
/ |
No crack, No scar, good conformability |
2 |
Ferrule polished end |
/ |
No scar, No spot |
3 |
Insertion loss |
dB |
SM≤0.2, |
4 |
Return loss |
dB |
APC≥60 |
5 |
Curvature eccentricity |
um |
<50 |
6 |
Fiber core undercut |
um |
-<50 |
7 |
Fall apart test |
dB |
H=1M,connector free-falling 5 times Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion |
8 |
Repetitiveness |
dB |
Insertion loss change< 0.1 Return loss change< 5 |
9 |
Insert & pull out |
/ |
Max: 2KG |
10 |
Tensile strength |
dB |
0- 10KG per minutes Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion |
11 |
Addition |
dB |
2.5Kg,200times,10times/minutes,±80° Insertion loss change < 0.1,Return loss change< 5, No flab, No distortion |
12 |
Package |
/ |
Clean, Correctitude, No dirt |
13 |
Allowable bending radius |
mm |
|
