Product Details
Condition: | New | Plate Type: | Screen Printer | Place of Origin: | Shandong, China |
Brand Name: | Jinggang | Model Number: | ZKR-650 | Usage: | Other, Vacuum thermal transfer machine |
Automatic Grade: | Automatic | Gross Power: | 25kw | Dimensions(L*W*H): | 2700*1100*2600mm |
After-sales Service Provided: | Overseas third-party support available | Weight: | 1300kg |
Product Description

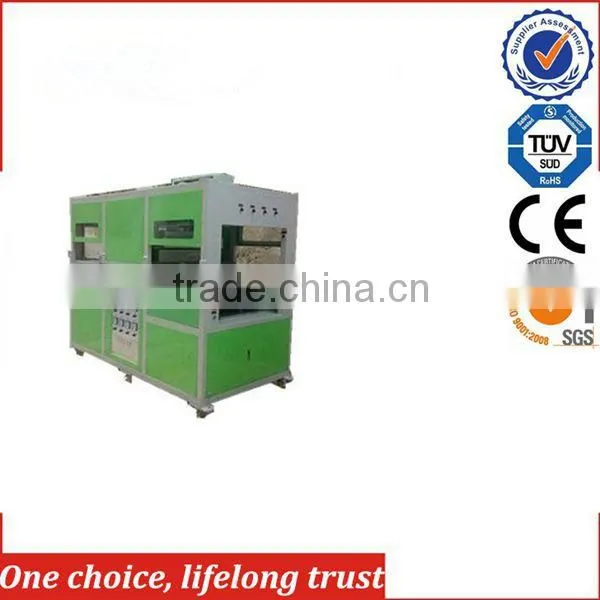

ZKR-650 Heat press printing for flip flop sandals/ eva detachable slipper 3D sublimation heat transfer printing machine
1. Technical parameters :
Power | 25KW |
Heating Powe | 23KW |
Operating Speed | 2-3pairs/minute |
working platform effective area | 570mm*480mm |
Max foil width | 650mm |
Suitable part material | PVC/PU/EVA/ABS/PS/PP |
Part maximum height | 80mm |
Max compressed air pressure | 2kgf/cm2 |
Weight | 1300kg |
Dimensions | 2700*1100*2600mm |
2. Product advantages :
(1). high efficiency, fast transfer speed for 2-3 pairs/minutes
(2). design more accurate positioning
(3). process flow is simple, and environmental protection
(4). compared with mould transfer, low cost
(5). the two casting, products in the vacuum forming of the reoccupy after high pressure for secondary forming make all kinds of complicated shape of the workpiece can be completely successful transfer.
(6). The equipment adopts the man-machine interface operation, fully automated workflow, the parameters can be user precise control to avoid losses caused by operational errors.
3. Product Description
(1). High efficiency, fast transfer speed ( 2- 3 pairs/minutes). The vacuum thermal transfer film of our company can be made according to customers' requirements (such asinferior smooth, glossy, mirror, laser, etc.) , A variety of coatings will be all in the film, after the transfer, can deliver without glazing oil injection.
(2). Use film high speed coating, special intaglio printing characteristics, Can realize silk screen printing/water transfer printing and others that are unable to realize effect, such as metal Angle variation, local mirror, local laser, etc.
(3). The crossbar twoway tensile rate higher base material film, and adjust the coating formula to large deformation, thermal transfer process in the two forming process, the product in the vacuum forming of the reoccupy after air pressure secondary forming, make all kinds of difficulties can be transfer success, greatly improved work efficiency.
4.About our new product:
Past slippers, casual shoes decorative patterns on main screen printing or water transfer approach, doing low efficiency and high cost. Vacuum transfer film for my company's new products to market, to the need profiled transfer, slippers, casual shoes manufacturers bring a new, highly efficient production methods.
We Using the special film coating, gravure printing, the pattern of the customer needs, the visual effect all printed on the film. The vacuum thermal transfer film pattern transfer to the shoes on. I transfer film UV coating, the shoes scratch after the transfer, resistance to oxidation, acid and alkali, to do so exquisite designs and high efficiency.
We can provide the transfer of equipment, the transfer film and complete production process.

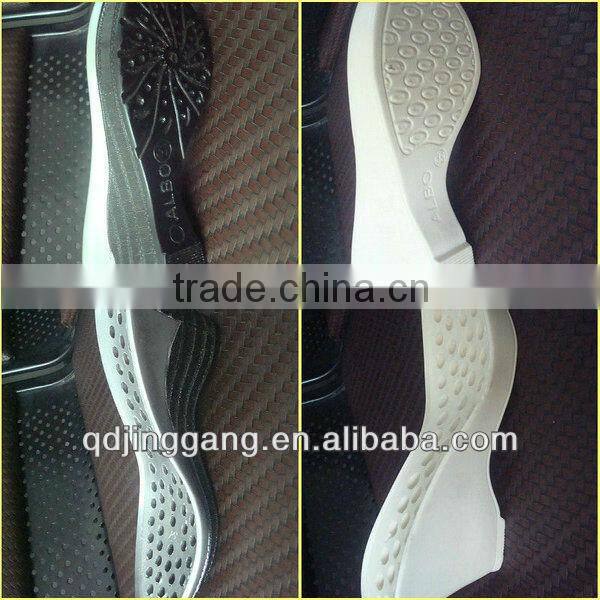

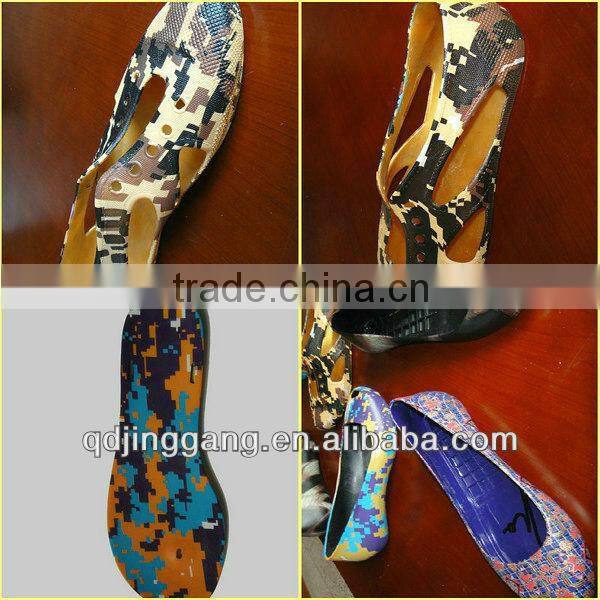

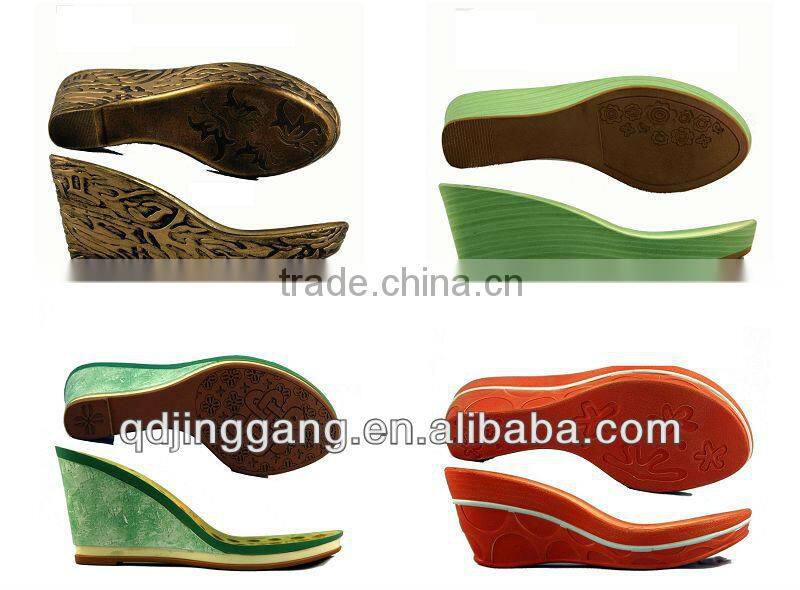

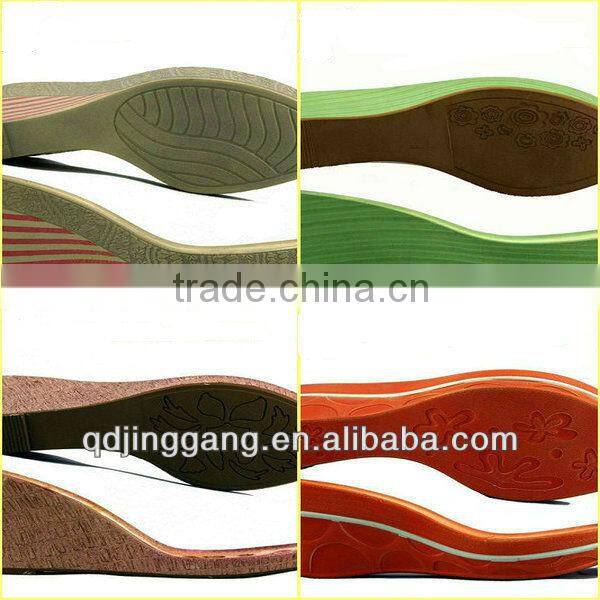

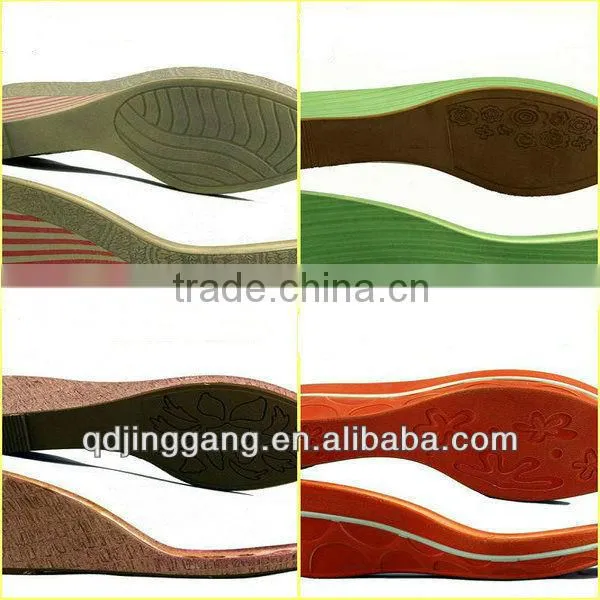

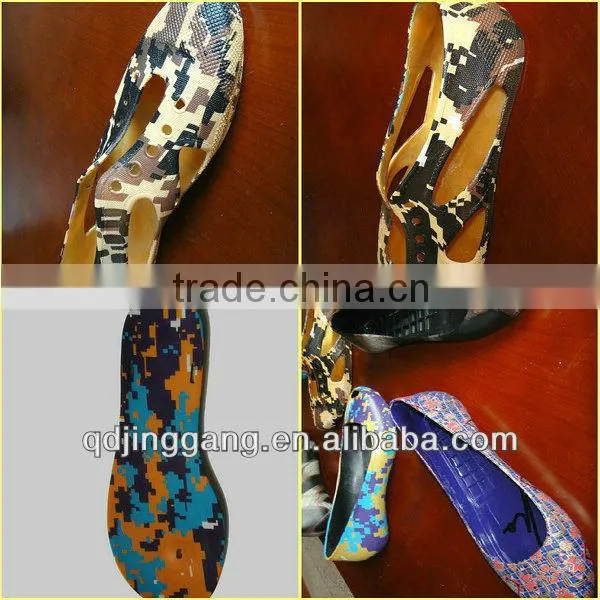

5. Bronzing samples
