Guangzhou AHD Security Camera System 4ch 8ch DVR Kits With 1.0 1.3mp AHD Camera

Guangzhou AHD Security Camera System 4ch 8ch DVR Kits With 1.0 1.3mp AHD Camera photo-1

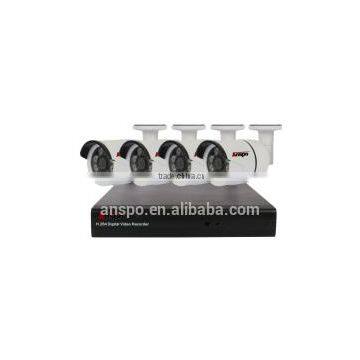

Guangzhou AHD Security Camera System 4ch 8ch DVR Kits With 1.0 1.3mp AHD Camera photo-2
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Anspo
Model Number:
ASP-AHD800-100KIT
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Anspo
Model Number ASP-AHD800-100KIT
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology NetWork
Special Features Vandal-proof

Guangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD cameraGuangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD camera



Foreword:



It is our honor that you checked this product and make inquiry to us,we are a reliable and professional supplier who has been in the security field more than 14 years in center Guangzhou city ,with own factorySMT room,show room and shops,GOST ,CE and testing report certification, 20mins reach Guangzhou Port,15mins reach Guangzhou Canton fair.





This is how we keep good quality and competitive price for global valued customers.
This is how we can do business all around the world and have many agents in different countries,such as Stri Lanka,Venezuela,Liyia,Iraq, Jordan and so on.




Big and long term business always come from the small trial order, so your inquiry and the sample order are welcomed at any time.





For more favourable price info, pls send me the inquiry to get fulll list !!!!

Why Choose Us--Anspo CCTV to Be Your Reliable Supplier?


Anspo has been successfully delivering CCTV Solutions to China and other countries distributors since 2002. To date we have grown to be a market leader in our market vertical. Some of the key factors that differentiate us from our competitors are:

Anspo Listen We simply listen to our clients. Our dedicated account management team is in constant contact with our customers to ensure that we deliver in every aspect of our dealings.

If you are looking for a trusted CCTV partner and your company shares similar standards to our company we would really like to hear from you. Simply call or contact us.





Item specifics:
4 pcs 720P IP camera
1pcs 4ch WIFI NVR
1pcs cable
1pcs12V 4A +4pcs 12V 1.5A power supply
English User Manual
CD(CMS,mobile app,manual), MouseGuangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD camera

Detail information:

DVR Specification
Model  ASP-8704
video input Video4CH
 video input broadbank 20Mbps
video outputHDMI output1ch,resolution:1024x768,1366x768,
1440x900,1920x1080
VGA output1ch,resolution:1024x768,1366x768,
1440x900,1920x1080
AV CODEC SpecificationVideo Resolution720P/VGA
Video ControlVideo/Capture modeMaual,Time,Motion
Playback modeRoutine,Event
BackupUSB backup
Hard DiskType1*SATA interface
Max Capacity4 TB at most for each
External InterfaceNetwork Interface1 adaptable RJ45 10M/100M, 1 WIFI interface
USB Interface2 USB 2.0
 ProtocolUPnP (play&plug)/
DHCP
Network Control
OthersPower SupplyDC12V4A
Power Consumption (W) ≤12W(Without HDD)
Operate Temperature (°C) -10℃~+55℃
Working Humidity (%) RH10%~90%
Size213mm(W)×213mm(V)×47mm(H)
Weight(excluding HDD)≤1Kg
IPC  Specification
Technical ParametersModel

ASP-AHD800-100W

Sensor1/4" Progressive Scan Sensor
Resolution1280*720 16 : 9 High Defination
Minimum illuminationColor: 0.1 Lux;  B/W: 0.01 Lux
Lens3.6mm
OSDDate Time & Title
White BalanceAuto
Day&NightAuto / Color / BW
Frame SpecificationH.264 1280x720@30fps
H.264 640x480@30fps
S/N> 39.1 Db
InterfaceRJ45 / WIFI 802.11b/g/n
General Specification Anti-thunder LevelStandard IEC61000-4-5
Working Temperature/Humidity -10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity -20℃ to +60℃ / 20% to 90% RH
Power InputDC12V-1.5A
Power consumption ≤6W
Size136(L)×62(W)×57 (H)mm
Weight500g
 ProtectionVandelproof





Demo for  camera

 Guangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD camera

How to choose the lens?

Guangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD camera



Payment terms

Guangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD camera

About us:

 Guangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD camera



                                                    SMT

Guangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD camera



                                             Part of factory



                                   Office and Shop

Guangzhou AHD security camera system 4ch 8ch DVR kits with 1.0 1.3mp AHD camera



                                          company's honor
