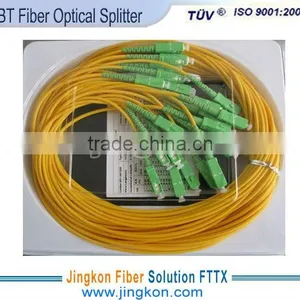

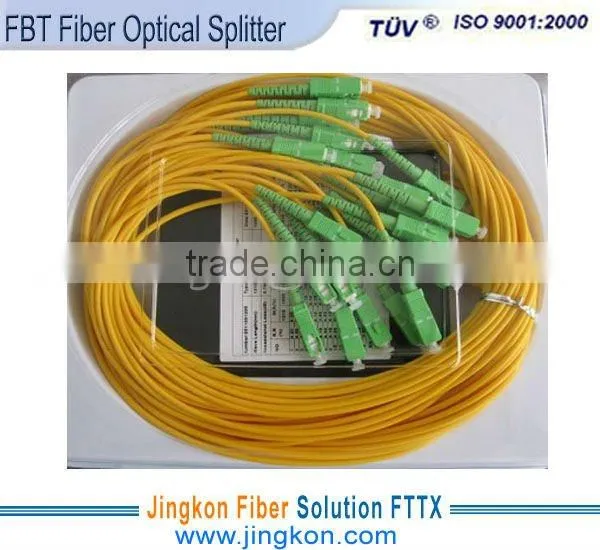

FBT Optical Fiber Coupler With SC/APC Connector

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JINGKON
Model Number	Box Module PLC Fiber Splitter

Product Description

Specifications

*Box Module PLC Splitter
*SC/FC/LC/ST SM&MM
*PLC&FBT Optical Fiber Splitter
*RoHS,TLC,ISO9001,Telcordia GR-1221

1*32 Module Box PLC Fiber Optic Splitter with SC/APC SM connector

Optical Fiber PLC SPlitter:

*Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and iswidely used in PON networks to realize optical signal power splitting.

Description:
1. PLC Splitter with SC/APC SM Connector
2. Corning Fiber-G. 657A
3. PVC Jacket
4. Wavelength: 1260-1650 nm
5. Loose tube Fiber Cable
6. Length: 1meter(can be customised)

Main Parameter:

Parameters		1X2	1X4	1X8	1X16	1X32	1X64
Fiber type		customer specified
Operationg wavelength(nm)		1260-1650
Insertion loss(dB)	Max(P/A)	3.8/4.0	7.2/7.4	10.5/10.7	13.5/13.7	16.5/16.9	21
Loss Uniformity(dB)	Max	0.6	0.6	0.8	1.2	1.7	2.5
Return loss(dB)	Min(P/A)	50/55	50/55	50/55	50/55	50/55	50
PDL(dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4
Directivity(dB)	Min	55	55	55	55	55	55
Wavelength Dependent loss(dB)	Max	0.5	0.5	0.5	0.8	0.8	0.8
Tempperature Stability(-40 +85)(dB)	Max	0.5	0.5	0.5	0.8	0.8	1
Operating Temperature		-40 +85
Storerage Temperature		-40 +85

Applications:
*FTTX (FTTP, FTTH, FTTN, FTTC)
*Passive Optical Networks (PON)
*Local Area Networks (LAN)
*CATV Systems

*Test Equipments
