Help CenterSteel Tube PLC Fiber Optical Splitter
Related Products
-
1*8 PLC Fiber Optic Splitter With SC/APC ConnectorUS$ 9 - 30MOQ: 1 Set -
1X64 PLC Fiber Optic SplitterNegotiableMOQ: 5 Pieces
-
Fiber Optic Coupler (with SC/APC Pigtail)NegotiableMOQ: 5 Pieces
-
1*32 Mini Module PLC Optical Fiber SplitterNegotiableMOQ: 5 Pieces
-
1x2 Dual Window Optical SplitterNegotiableMOQ: 10 Sets
Specifications
*1x32 Steel Tube PLC Splitter*SC/FC/LC/ST SM&MM
*PLC&FBT Optical Fiber Splitter
*RoHS,TLC,ISO9001,Telcordia GR-1221

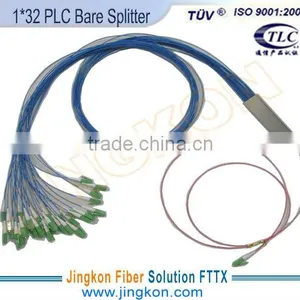

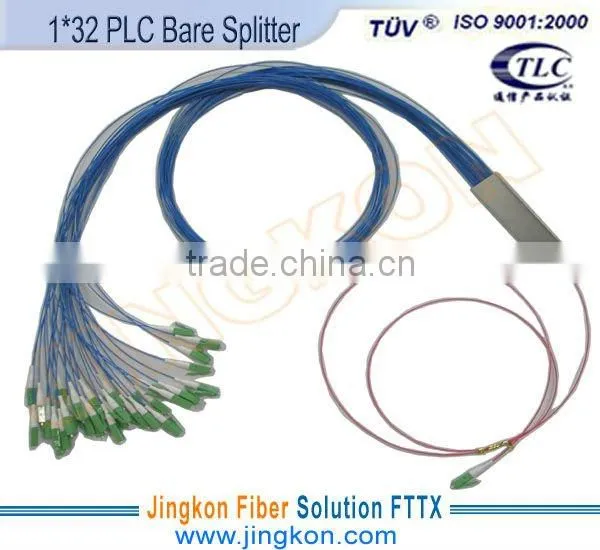

1*32 Steel tube PLC Fiber Optic Splitter with LC/APC SM connector
Optical Fiber PLC SPlitter:
*Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and iswidely used in PON networks to realize optical signal power splitting.
Description:
1. PLC Splitter with LC/APC SM Connector
2. Corning Fiber-G. 657A
3. PVC Jacket
4. Wavelength: 1260-1650 nm
5. Loose tube Fiber Cable
6. Length: 1meter(can be customised)
Main Parameter:
| Parameters | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Fiber type | customer specified | ||||||
| Operationg wavelength(nm) | 1260-1650 | ||||||
| Insertion loss(dB) | Max(P/A) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.5/13.7 | 16.5/16.9 | 21 |
| Loss Uniformity(dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.7 | 2.5 |
| Return loss(dB) | Min(P/A) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50 |
| PDL(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity(dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent loss(dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 |
| Tempperature Stability(-40 +85)(dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
| Operating Temperature | -40 +85 | ||||||
| Storerage Temperature | -40 +85 | ||||||
Applications:
*FTTX (FTTP, FTTH, FTTN, FTTC)
*Passive Optical Networks (PON)
*Local Area Networks (LAN)
*CATV Systems
*Test Equipments
