Anspo good price 8ch wireless reversing wifi nvr camera
kit home security alarm system
Key Features:
1. HD video output
2. Automatic connection with IP, save installation cost
3. Plug and play, P2P service
4. Mobile viewing, iphone&android app
5.Support mobile detection alarm video
Item specifics:
4 pcs 720P wifi IP camera
1pcs 4ch NVR
1pcs network cable
1pcs12V 4A +4pcs 12V 1.5A power supply
English User Manual
CD(CMS,mobile app,manual), Mouse
Technical Parameters

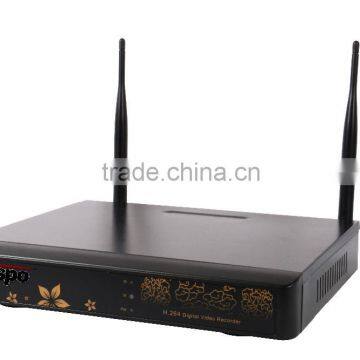

| Wireless NVR Specification | ||
| Model | ASP-6604NVR | |
| Operating System | Embedded Linux OS | |
| video input | Network Video | 4CH |
| Network video input broadbank | 20Mbps | |
| video output | HDMI output | 1ch,resolution:1024x768,1366x768, |
| 1440x900,1920x1080 | ||
| VGA output | 1ch,resolution:1024x768,1366x768, | |
| 1440x900,1920x1080 | ||
| AV CODEC Specification | Video Resolution | 720P/VGA |
| Video Control | Video/Capture mode | Maual,Time,Motion |
| Playback mode | Routine,Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Protocol | UPnP (play&plug)/ | |
| Network Control | DHCP (Automatically obtain an IP address), etc… | |
| Others | Power Supply | DC12V4A |
| Power Consumption (W) | ≤12W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 213mm(W)×213mm(V)×47mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |

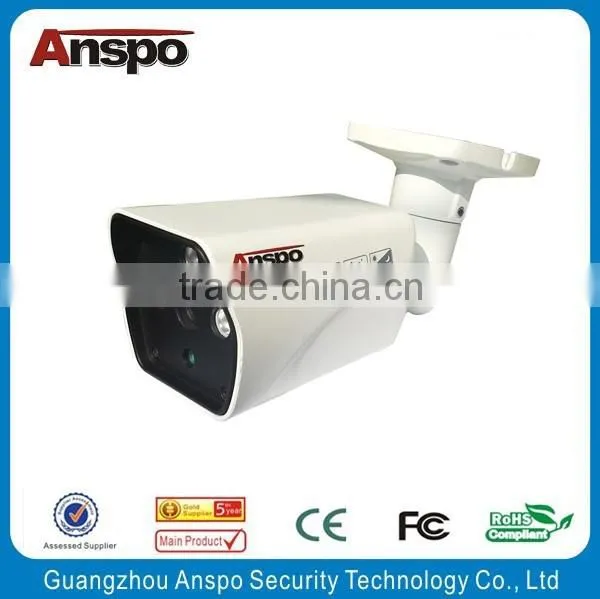

| IPC Specification | ||
| Technical Parameters | Model | ASP-7503-100HWF |
| Sensor | 1/4" Progressive Scan Sensor | |
| Resolution | 1280*960 16 : 9 High Defination | |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Lens | 4mm | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| Frame Specification | H.264 1280x720@30fps | |
| H.264 640x480@30fps | ||
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Working Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1.5A | |
| Power consumption | ≤6W | |
| Size | 136(L)×62(W)×57 (H)mm | |
| Weight | 500g | |
| Level of Protection | IP66 | |
How to choose lens for your Security Camera?
Why work with us?
1. Decades of manufacturing experience in security camera equipment industry,
2. Leading factory in Chinese CCTV camera market,
3. Mature and latest technology used in surveillance system solution,
4. Professional solution on your CCTV security camera,DVR,NVR problems,
5. Multi solution for your home and business surveillance security system:
IP camera,Analogue high defination(AHD) camera,wireless camera,hidden camera etc
SMT
Workshop
Office and Shop
Factory Awards
1. Q: Are you a factory or trading company?
A: We are direct factory with decades of producing experience on security camera industry.
2. Q:How about the lead time?
A: It will take about 4-7 days if your qty of security camera is less than 500pcs after getting your deposit.
3. Q:Can I get a free sample?
A:I'm afraid since the cost of a security camera is expensive, we can't offer sample for every customer, but we will return the sample fee to your account if you make order to us.
4. Q: Can you print my logo on your security equipments?
A:Yes,that’s no problem for us, you just need send us your logo artwork for your cctv camera brand.
5. Q: What about your warranty period?
A: 18 months.
