Specifications
Fiber Optic PLC Splitters and CouplersFiber:Corning Fiber
Connector:SC/FC/LC/ST;APC/UPC;

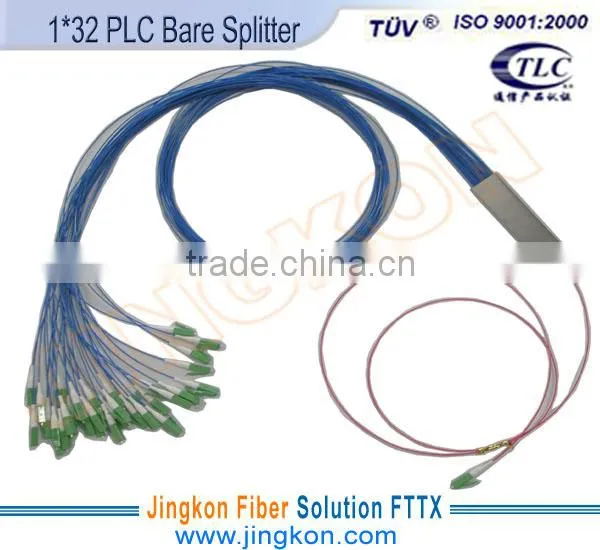

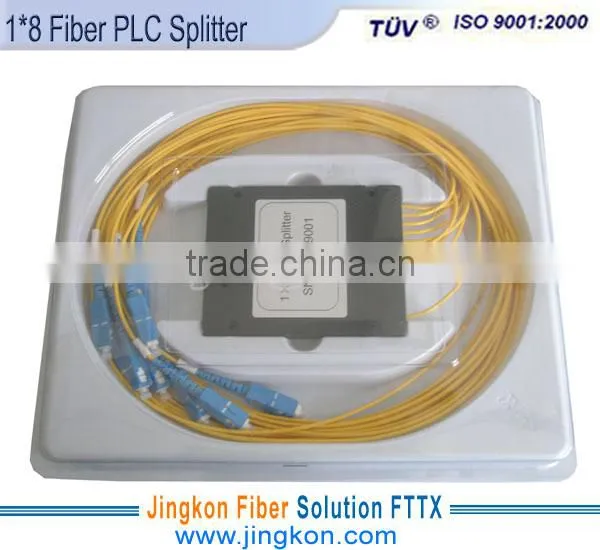

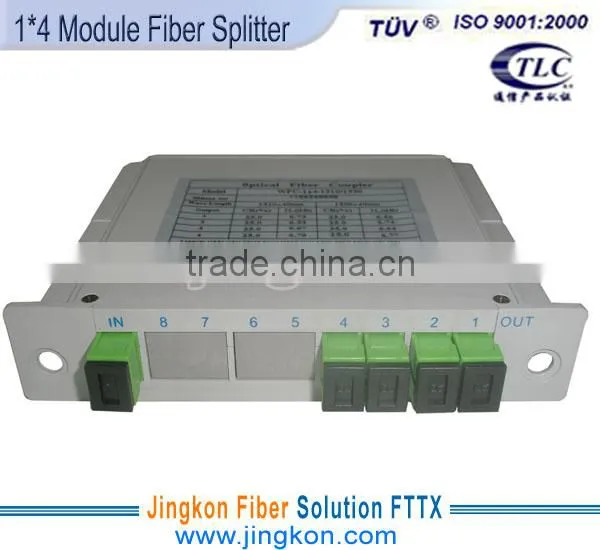

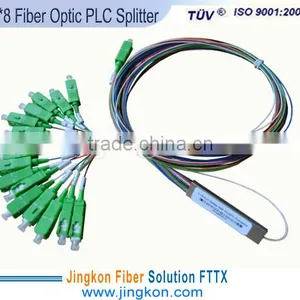

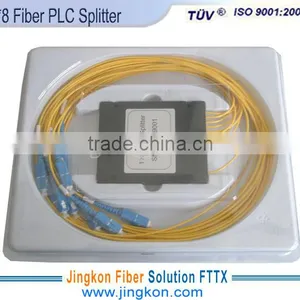

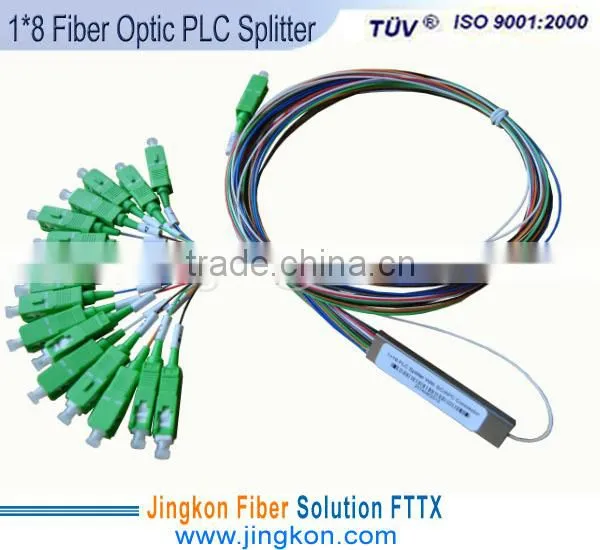

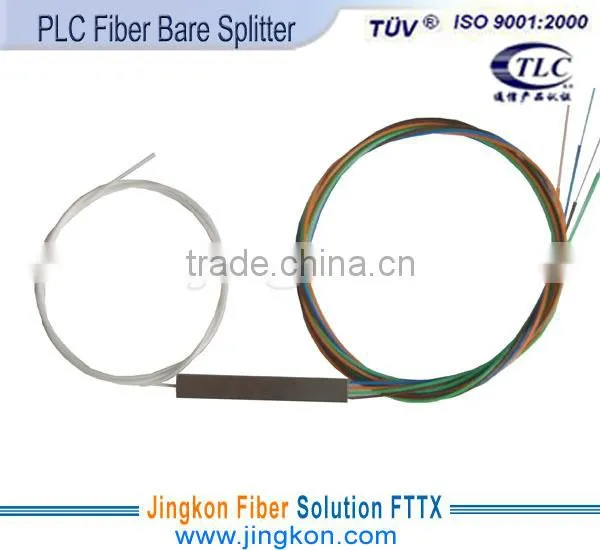

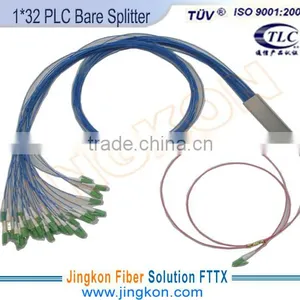

Fiber Optic PLC Splitter and Couplers
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
Parameter
Type |
Standard |
Operating wavelength (nm) |
1310/1550 |
Bandwidth (nm) |
1310±401490±101550±40 |
Coupling ratio (%) |
1~50 |
Typical excess loss(dB) |
≤0.15 |
PDL(dB) |
≤0.10 |
Typical Insertion Loss (dB) |
≤3.6 |
Min directivity(dB) |
≥55 |
Temperature coefficient (dB/) |
≤0.002 |
Operating temperature() |
-40~+70 |
Storage temperature() |
-40~+85 |
Max operating power (mW) |
≥300 |
Max tensile strength(N) |
≥5 |
Package dimension(mm) |
Φ3.0×50 as customer required |
Industry standard bellcore |
Telcordia GR-1221-CORE |
Applications:
1.widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
Package:
Certificate:
Our service:
To return product, you may contact us before.
To serve you better, please specify the reasons of the return.
All delivery and mails should be sent to us (into the original package if possible)
