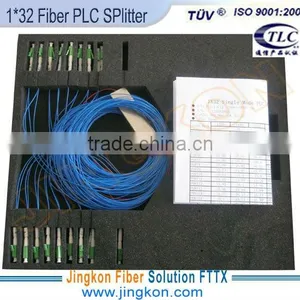

Help Center1x32 Optical Fiber PLC Splitter
Related Products
-
Fiber Optic PLC Bare SplitterUS$ 45 - 50MOQ: 5 Pieces -
1X8 PLC Fiber Optic Splitter With SC/APC ConnectorNegotiableMOQ: 5 Pieces
-
Single Mode Fiber Optic Splitter CouplerUS$ 9 - 30MOQ: 1 Set
-
FC/UPC 1X8 PLC Fiber Optic Splitter and CouplerNegotiableMOQ: 5 Pieces
-
SC/UPC 1*16 Fiber Optic PLC SplitterNegotiableMOQ: 5 Pieces
Specifications
1)1x32 Optical Fiber PLC Bare Splitter2)1*2,1*4,1*8,1*16,1*32,1*64 Optical Splitter
3)FTTH,GPON
4)ISO9001,GR326-CORE,RoHS
Optical Fiber PLC SPlitter:
*Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and iswidely used in PON networks to realize optical signal power splitting.
Specification:
Parameter
Specification
Operating Wavelength (nm)
1260 ~ 1620
Type
1x2
1x4
1x8
1x16
2x4
2x8
2x16
1x32
2x32
1x64
2x64
Insertion Loss (dB) Max.
<4.0
<7.3
<10.8
<13.8
<7.6
<11.2
<14.5
<17.2
<18.2
<20.5
<21.0
Uniformity (dB) Max.
<0.6
<0.8
<1.0
<1.5
<1.0
<1.5
<2.0
<2.0
<2.5
<2.5
<3.0
PDL (dB) Max.
<0.2
<0.2
<0.2
<0.3
<0.3
<0.3
<0.4
<0.3
<0.4
<0.3
<0.3
Directivity (dB) Min
55
Return Loss (dB) Min
55(50)
Operating Temperature (°C)
-40~ +85
Storage Temperature (°C)
-40 ~ +85
Fiber length
1m or custom length
Fiber Type
Corning SMF-28e fiber
Connector Type
Custom specified
Power Handling (mW)
300

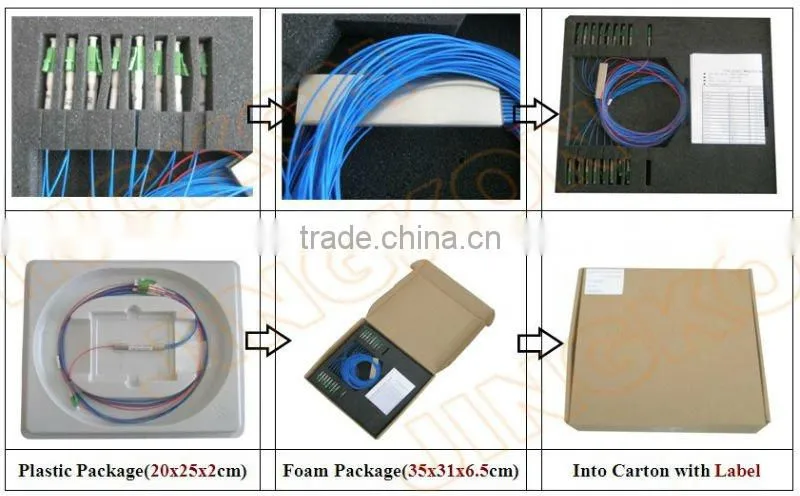

PLC Splitter Package:
*Foam Pacakge:35x31x6.5cm
*Plastic Package:20x25x2cm
*With a Test Report
*Into Carton
Applications:
*FTTX (FTTP, FTTH, FTTN, FTTC)
*Passive Optical Networks (PON)
*Local Area Networks (LAN)
*CATV Systems
*Test Equipments
Certificated Approval:
*RoHS,TLC,ISO9001 compliant
*Meet IEC,Telcordia GR-326-Core standard
