Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Anspo | Model Number: | ASP-874-944-100AHDKIT |
| Type: | Other, AHD camera | Style: | Dome Camera | Sensor: | CMOS |
| Technology: | Infrared | Special Features: | Vandal-proof |
Product Description
factory!! 4CH 720P AHD NVR Kit Cameras CCTV Security 4CH Kit With 10.1 -Inch Screen

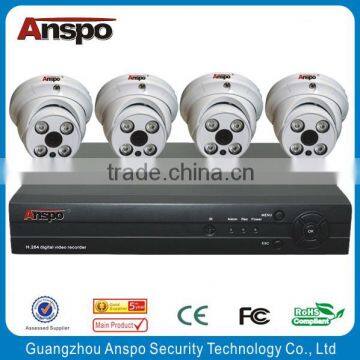

What does the ahd dvr kit include?
1PCS 4Channel 960P AHD DVR ASP-8704AHDVR
Not include HDD, Support 1 SATA HDD
Including Power Adapter and Mouse
4PCS 960P dome AHD Camera ASP-AHD944-130W
4PCS Power Supply Adapter
| AHD DVR | ||
| System | Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX operating system | |
| System resources | Pentaplex function: Live, recording, playback, backup& remote access | |
| Control mode | USB mouse, Network | |
| Video | Input | 4CH,AHD/Analog input BNC(1.0Vp-p, 75Ω) |
| Output | 1HDMI, 1 VGA | |
| Standard | PAL / NTSC | |
| Audio | Input | 4CH, RCA(200-2800mV,30KΩ) |
| Display | Display split | 1CH 720P / 4CH 960H |
| Resolution | 720P(1280*720),960H,D1,CIF | |
| OSD | Camera title, time, video loss, camera block, | |
| motion detection, recording | ||
| Record | Video resolution | H.264 |
| Audio resolution | adpcm,G711 | |
| Image resolution | 720P(1280x720),960H(960x576,960x480),D1(704 X 576/704 X 480) | |
| Encoding speed | Main stream: CH1~4 720P/960H(1~25/30FPS) | |
| Sub stream: CIF(1~5FPS),QCIF(1~5FPS) | ||
| Image quality | 1~6 level (level 6 is the best),VBR effectively | |
| Record mode | Manual,always, motion detection, alarm | |
| Record sequence | Manual>Alarm>Motion detection>General | |
| Alarm | Triggering event | Record, Snapshot, Alarm, Email |
| Motion detection | Area: 192(16*12), Sensitivity: 1-6 level | |
| Video loss | Support | |
| Playback and backup | Playback channel | 4ch 720P/960H |
| Playback speed | 960H 100/120FPS ,720P 100/120FPS | |
| Search mode | Time/Date, Alarm, Motion detection Exact search(accurate to second) | |
| Playback function | Play, Pause, Stop, Fast play, Slow play, full screen, backup | |
| Back mode | Flash drive/USB HDD/CD-DVD RW/Network download | |
| Network | Interface | RJ-45 port(10/100M) |
| Network functions | TCP/IP,UDP,DHCP,DNS,IPFilter,DDNS,FTP,Email,UPNP,P2P | |
| Remote operation | Monitor, PTZ control, Playback, System setting, File download, Log information | |
| Hard disk | Interface management | 1 SATA ports, each port support max 4TB HDD. |
| Auxiliary interface | USB Ports | 2 USB Ports: 1 for mouse control, 1 for backup |
| Environment | Power supply | DC 12V |
| 4*AHD Camera | ||
| Camera Type | 960P AHD camera 1.3 megapixel 1/3 CMOS | |
| Effective Pixels | PAL:1280x960@25fps NTSC:1280x960@30fps | |
| IR-LED | 4 pcs arrey led 35m IR Distance | |
| Day/Night | IR-CUT filter Color 1.0Lux/F1.2,B/W 0.1Lux/F1.2 | |
| Electronic Shutter | 4/25-1/45,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Lens Mount | C/CS | |
| Output | 1CH AHD Video output | |
| Waterproof Criterion | IP66 | |
| Power | DC 12V | |
| Image | Auto BLC,Auto White Balance | |
| Max tansmission | RG59 cable can be up to 500 m | |
| Kits | ||
| Pcaking list | 1*AHD DVR; 4*1.3MP AHD cameras;4*20M (BNC+DC) cables; 1*quick start guide; 1*mouse; 1*CD; 1*power for DVR; 1*power for cameras; 1* one split four DC cable | |
| Work environment | -10℃~60℃90%RH | |
| Package Size | ||
| Gross weight | ||
Contact: Ivy
Skype: ivy.404
Whatsapp: +8618825114689
Wechat: chh18825114689
1. Q: Are you a factory or trading company?
A: We are direct factory with decades of producing experience on security camera industry.
2. Q:How about the lead time?
A: It will take about 4-7 days if your qty of security camera is less than 500pcs after getting your deposit.
3. Q:Can I get a free sample?
A: I’m afraid since the cost of a security camera is expensive, we can’t pay for each camera kit for each customer, but we will return the sample fee to your account if you have orders.
4. Q: Can you print my logo on your security equipments?
A:Yes,that’s no problem for us, you just need send us your logo artwork for your cctv camera brand.
5. Q: What about your warranty period?
A: 2 years.
