Home > Products > Kit > 4CH NVR CCTV Outdoor Security KIT 4CH 8CH 720P 960P HD Wireless IR WIFI IP Camera Anspo
4CH NVR CCTV Outdoor Security KIT 4CH 8CH 720P 960P HD Wireless IR WIFI IP Camera Anspo
- 10000 Piece / Pieces per Month
- Guangzhou
- Credit Card
-
7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
-
7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
-
7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
-
7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
-
Car Camera Wireless Transmitter System For Bus
-
7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Anspo | Model Number: | ASP-WF749-100KIT-4CH |
| Type: | IP Camera | Style: | Bullet Camera | Sensor: | CMOS |
| Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description

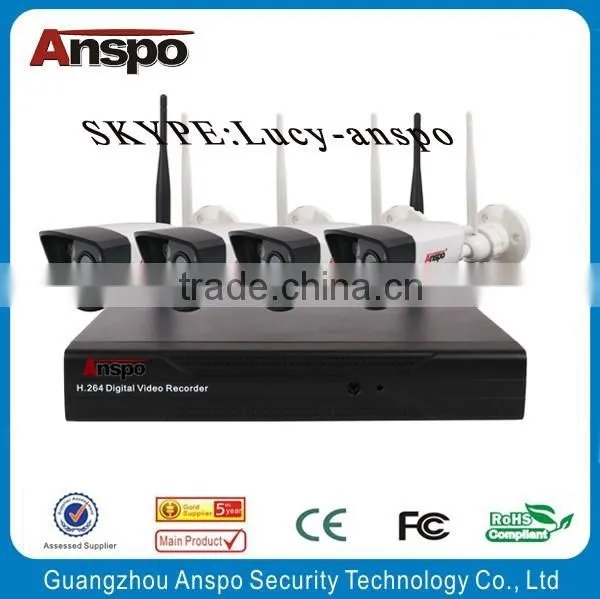

4CH NVR CCTV Outdoor Security KIT 4CH 8CH 720P 960P HD Wireless IR WIFI IP Camera Anspo
Key Features:
1. HD video output
2. Automatic connection with IP, save installation cost
3. Plug and play, P2P service
4. Mobile viewing, iphone&android app
5.Support mobile detection alarm video

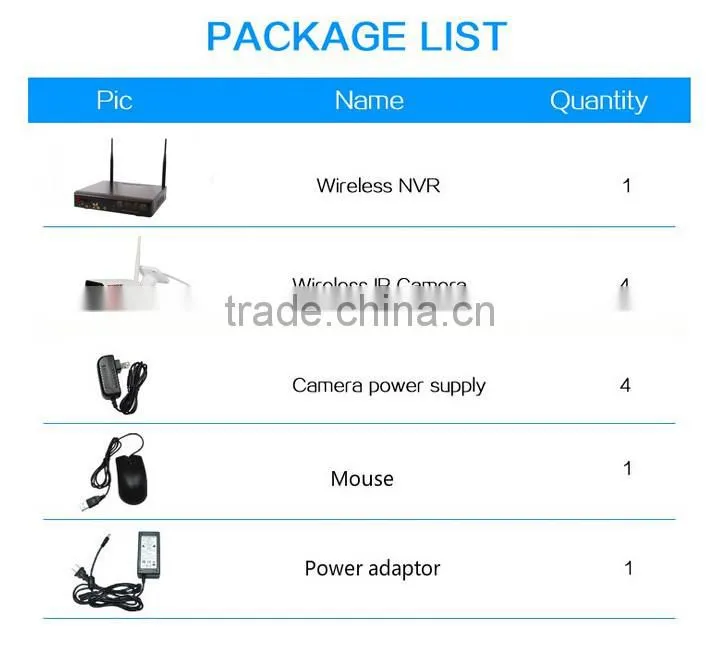

Item specifics:
4 pcs 720P wifi IP camera
1pcs 4ch NVR
1pcs network cable
1pcs12V 4A +4pcs 12V 1.5A power supply
English User Manual
CD(CMS,mobile app,manual), Mouse
| modle | ASP-WF749-100KIT-4CH | |
| Operating System | Embedded Linux OS | |
| video input | Network Video | 4CH |
| Network video input broadbank | 20Mbps | |
| video output | HDMI output | 1ch,resolution:1024x768,1366x768, 1440x900,1920x1080 |
| VGA output | 1ch,resolution:1024x768,1366x768, 1440x900,1920x1080 | |
| AV CODEC Specification | Video Resolution | 720P/VGA |
| Video Control | Video/Capture mode | Maual,Time,Motion |
| Playback mode | Routine,Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Protocol | UPnP (play&plug)/ DHCP (Automatically obtain an IP address), etc… | |
| Network Control | ||
| Others | Power Supply | DC12V4A |
| Power Consumption (W) | ≤12W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 213mm(W)×213mm(V)×47mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |

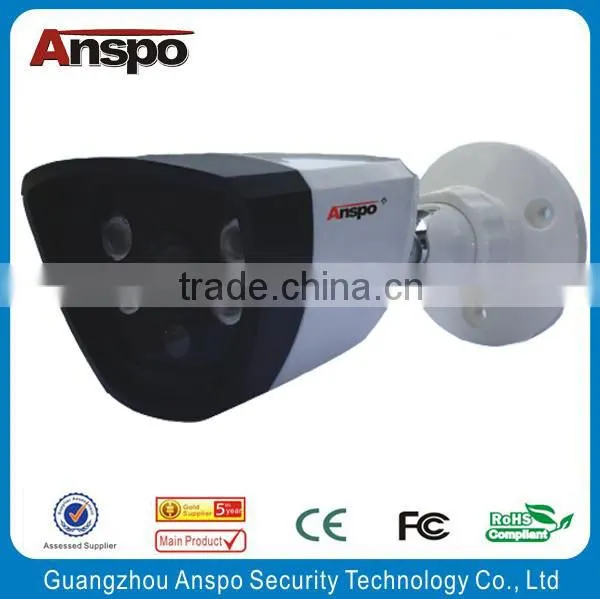

| IPC Specification | ||
| Technical Parameters | ||
| Sensor | 1/4" Progressive Scan Sensor | |
| Resolution | 1280*960 16 : 9 High Defination | |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Lens | 4mm | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| Frame Specification | H.264 1280x720@30fps H.264 640x480@30fps | |
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Working Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1.5A | |
| Power consumption | ≤6W | |
| Size | 136(L)×62(W)×57 (H)mm | |
| Weight | 500g | |
| Level of Protection | IP66 | |
1. Q: Are you a factory or trading company?
A: We are direct factory with decades of producing experience on security camera industry.
2. Q:How about the lead time?
A: It will take about 4-7 days if your qty of security camera is less than 500pcs after getting your deposit.
3. Q:Can I get a free sample?
A: I’m afraid since the cost of a security camera is expensive, we can’t pay for each camera kit for each customer, but we will return the sample fee to your account if you have orders.
4. Q: Can you print my logo on your security equipments?
A:Yes,that’s no problem for us, you just need send us your logo artwork for your cctv camera brand.
5. Q: What about your warranty period?
A: 2 years.
