Specifications
Fiber Optic Patch CordLow insertion loss High Return loss
Good Quanlity the Lowest price
TLC Rohs ISO certification

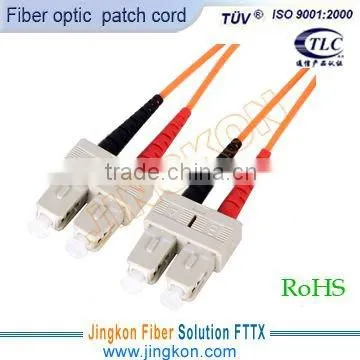

Fiber Optic patch cord:
Fiber Optic Patch cord are popular network connection devices used by professionals in many industries like communication, networkin. They are made of standard fiber optic cabling and are terminated with fiber optic connectors on both ends.
Product Description:
Description |
SC/UPC–SC/UPC Duplex MM OM2 50/125 Corning fiber Φ2.0 3M |
|
Appearance |
/ |
No crack, No scar, good conformability |
Ferrule Polished |
/ |
No scar, No spot
|
Insertion loss |
dB |
SM≤0.2 |
Return loss |
dB |
UPC≥30 |
Curvature eccentricity |
um |
<50 |
Fiber core undercut |
nm |
<50
|
Fall apart test |
dB |
H=1M,connector free-falling 5 times Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion
|
Repetitiveness |
dB |
Insertion loss change< 0.1,Return loss change< 5 |
Insert & pull out |
/ |
Max: 2KG |
Tensile strength |
dB |
0- 10KG per minutes Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion |
Anti-contortion |
dB |
2.5Kg ,200times, 10times/minutes, ±80° Insertion loss change < 0.1,Return loss change< 5, No flab, No distortion |
Package |
/ |
Clean, Correctitude, No dirt
|

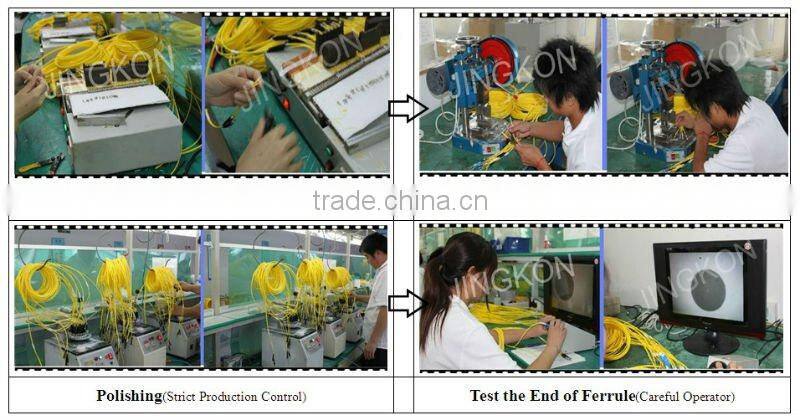

Producing Line:
*80% of our workers with over 6 experience to make sure 100% strict quality control.
*Daily capacity 5,000 pieces of simplex patch cord.
Patch cord Package:
*100% patch cord test, 12 months quality gurantee.
*PVC Plastic Bag(18*25 mm) with a test report.
*White Carton(40*40*10.5 mm) then into ourter Carton(42*42*44 mm)
*For Ocean Shipment, we do pallet for better goods protection duirng transportation.
Certificated Approval:
*RoHS,TLC,ISO9001 compliant
*Meet IEC,Telcordia GR-326-Core standard
