Hot Selling H.264 8ch 2.0MP AHD CCTV Camera Kit

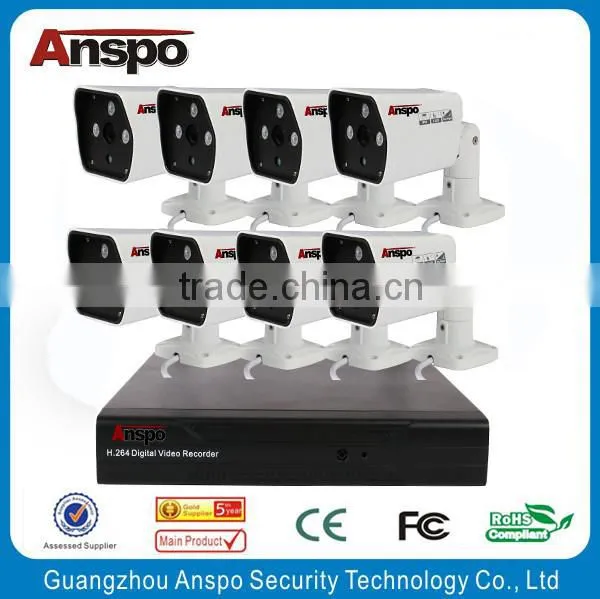

What does the ahd dvr kit include?

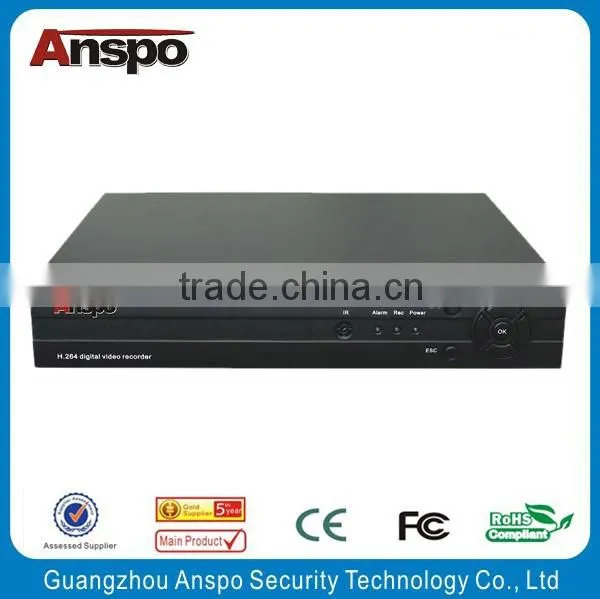

1PCS 8Channel 1080P AHD DVR ASP-8708AHDVR
Not include HDD, Support 1 SATA HDD
Including Power Adapter and Mouse

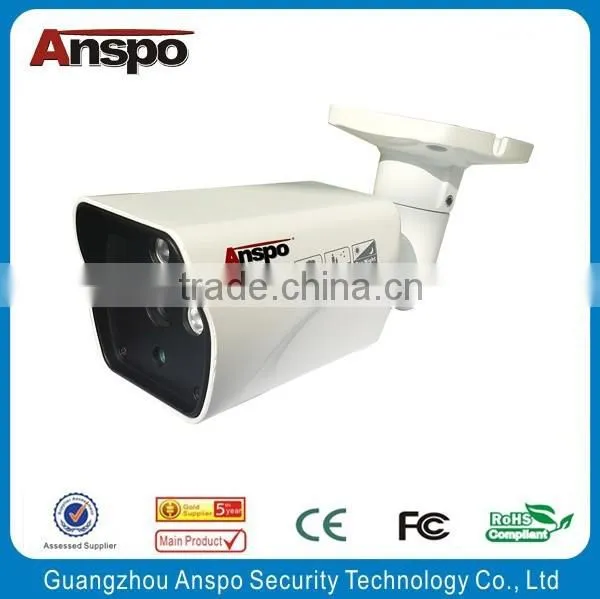

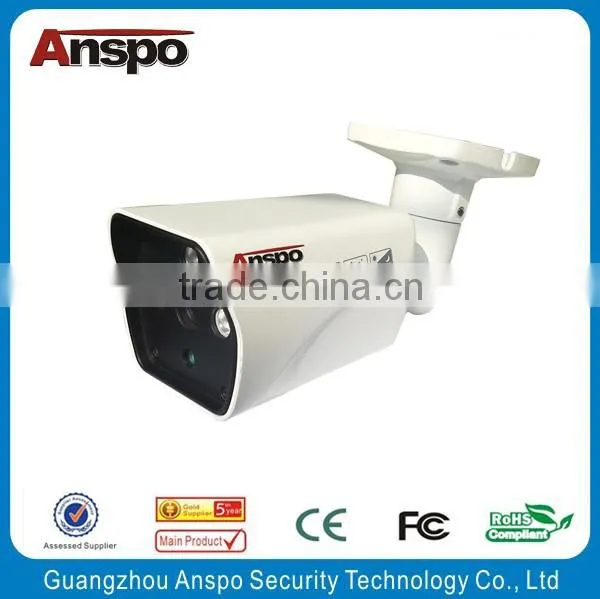

8PCS 1080P Bullet AHD Camera ASP-AHD7503-200W
8PCS Power Supply Adapter
| AHD DVR | ||
| System | Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX operating system | |
| System resources | Pentaplex function: Live, recording, playback, backup& remote access | |
| Control mode | USB mouse, Network | |
| Video | Input | 4CH,AHD/Analog input BNC(1.0Vp-p, 75Ω) |
| Output | 1HDMI, 1 VGA | |
| Standard | PAL / NTSC | |
| Audio | Input | 4CH, RCA(200-2800mV,30KΩ) |
| Display | Display split | 1CH 960P / 4CH 1080H |
| Resolution | 1080P(1280*1080),1080H,D1,CIF | |
| OSD | Camera title, time, video loss, camera block, | |
| motion detection, recording | ||
| Record | Video resolution | H.264 |
| Audio resolution | adpcm,G711 | |
| Image resolution | 720P(1280x720),960H(960x576,960x480),D1(704 X 576/704 X 480) | |
| Encoding speed | Main stream: CH1~4 720P/960H(1~25/30FPS) | |
| Sub stream: CIF(1~5FPS),QCIF(1~5FPS) | ||
| Image quality | 1~6 level (level 6 is the best),VBR effectively | |
| Record mode | Manual,always, motion detection, alarm | |
| Record sequence | Manual>Alarm>Motion detection>General | |
| Alarm | Triggering event | Record, Snapshot, Alarm, Email |
| Motion detection | Area: 192(16*12), Sensitivity: 1-6 level | |
| Video loss | Support | |
| Playback and backup | Playback channel | 4ch 720P/960/1080PH |
| Playback speed | 1080P 100/120FPS 960H 100/120FPS ,720P 100/120FPS | |
| Search mode | Time/Date, Alarm, Motion detection Exact search(accurate to second) | |
| Playback function | Play, Pause, Stop, Fast play, Slow play, full screen, backup | |
| Back mode | Flash drive/USB HDD/CD-DVD RW/Network download | |
| Network | Interface | RJ-45 port(10/100M) |
| Network functions | TCP/IP,UDP,DHCP,DNS,IPFilter,DDNS,FTP,Email,UPNP,P2P | |
| Remote operation | Monitor, PTZ control, Playback, System setting, File download, Log information | |
| Hard disk | Interface management | 1 SATA ports, each port support max 4TB HDD. |
| Auxiliary interface | USB Ports | 2 USB Ports: 1 for mouse control, 1 for backup |
| Environment | Power supply | DC 12V |
| 4*AHD Camera | ||
| Camera Type | 1080P AHD camera 2.0 megapixel Sony | |
| Effective Pixels | PAL:1280x960@25fps NTSC:1280x1080@30fps | |
| IR-LED | 3 pcs arrey led 35m IR Distance | |
| Day/Night | IR-CUT filter Color 1.0Lux/F1.2,B/W 0.1Lux/F1.2 | |
| Electronic Shutter | 4/25-1/45,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Lens Mount | C/CS | |
| Output | 1CH AHD Video output | |
| Waterproof Criterion | IP66 | |
| Power | DC 12V | |
| Image | Auto BLC,Auto White Balance | |
| Max tansmission | RG59 cable can be up to 500 m | |
| Kits | ||
| Pcaking list |
1*AHD DVR; 8*2.0MP AHD cameras;8*20M (BNC+DC) cables; 1*quick start guide; 1*mouse; 1*CD; 1*power for DVR; 8*power for cameras; 1* one split four DC cable |
|
| Work environment | -10℃~60℃90%RH | |
Products Overlook
SMT workshop day's vision:
SMT workshop night's vision:
How to choose the lens?
Payment terms
Why work with us?
1. Decades of manufacturing experience in security camera equipment industry,
2. Leading factory in Chinese CCTV camera market,
3. Mature and latest technology used in surveillance system solution,
4. Professional solution on your CCTV security camera,DVR,NVR problems,
5. Multi solution for your home and business surveillance security system:
6. IP camera,Analogue high defination(AHD) camera,wireless camera,hidden camera etc
About us:
SMT
Part of factory
Office and Shop
company's honor
1. Q: Are you a factory or trading company?
A: We are direct factory with decades of producing experience on security camera industry.
2. Q:How about the lead time?
A: It will take about 4-7 days if your qty of security camera is less than 500pcs after getting your deposit.
3. Q: Can you print my logo on your security equipments?
A:Yes,that’s no problem for us, you just need send us your logo artwork for your cctv camera brand.
4. Q: What about your warranty period?
A: 2 Years.
