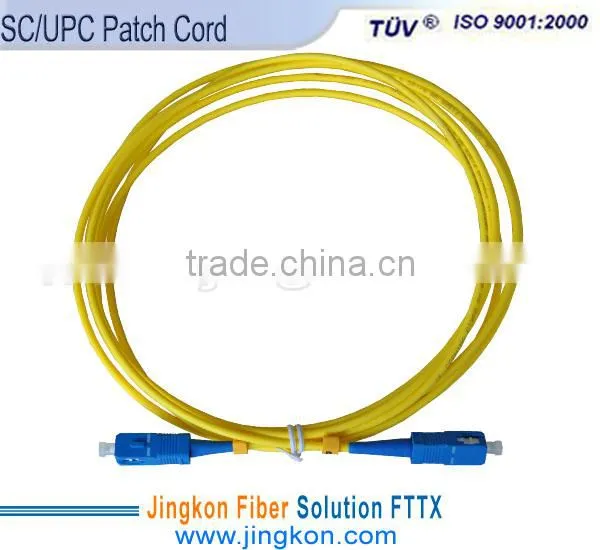

LSZH SC SC SM Patch Cord

FOB Price

US$ 0.1 - 2.3 / Piece

10 Pieces(Min. Order)

Port Ningbo / Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Jingkon
Model Number	LSZH SC SC SM patch cord

Product Description

Specifications

LSZH SC SC SM patch cord
Easy Installation;
Hight Precision;
Accurate mechanical dimensions;

LSZH SC SC SM patch cord

Housing:High Quality Plastic

Exactitude size

Repeat kind

Boot Diameter:0.9 2.0 2.4 3.0

Boot colour: Red Green Blue ,White ,Black ,Gray .

Ferrule:Zirconia

Outer diameter: 1.2490+(-)0.0005mm

Inner diameter: 0.125+0.001/-0mm

Concentricity: ≤1.0um

Good compatibility

Accurate mechanical dimensions,

Good reliability and stability,

RoHS Compliant

Fiber Optic Connector FC

Certificate:

Package:

Features:

Low insert loss; Good repeatability; Good changeability; Good temperature stabilization.

Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating test < 0.1.

Condition Features: High temperature < 0.2; Low temperature < 0.2.

Use: Applied in optical fiber communications system, fiber optic data transmission, LAN, optical fiver sensors and optical CATV.

	Fiber Optics patch cord
Item NO.	Test Item	Unit	Standard & Requirement
1	Appearance	/	No crack, No scar, good conformability
2	Ferrule polished end	/	No scar, No spot
3	Insertion loss	dB	SM≤0.2,
4	Return loss	dB	APC≥60
5	Curvature eccentricity	um	<50
6	Fiber core undercut	um	-<50
7	Fall apart test	dB	H=1M,connector free-falling 5 times Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion
8	Repetitiveness	dB	Insertion loss change< 0.1 Return loss change< 5
9	Insert & pull out	/	Max: 2KG
10	Tensile strength	dB	0- 10KG per minutes Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion
11	Addition	dB	2.5Kg,200times,10times/minutes,±80° Insertion loss change < 0.1,Return loss change< 5, No flab, No distortion
12	Package	/	Clean, Correctitude, No dirt
13	Allowable bending radius	mm
