10/100M Fiber Media Converter-SC

Ningbo Jingkon Fiber Communication Apparatus Co., Ltd.
10/100M Fiber Media Converter-SC thumbnail-1
10/100M Fiber Media Converter-SC photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JINGKON
Model Number:
10/100M fiber media converter
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JINGKON
Model Number 10/100M fiber media converter

Specifications

10/100M fiber media converter
good quality
delivery on time

10/100M  fiber media converter



Quick View

 10/100M fiber media converter-SC

Main features

In conformity with the following

IEEE802.3 10Base-T standard

IEEE802.3U100Base-TX/FX standard

IEEE802.3Xstandard



Interface transmission rate

Optical interface: 155Mbps

Electrical interface: 10/100Mbps

Automatic identification with cross line and through line

JK-100D can use either cross line or through line for connection with the devices such as switch or server.

TX LINK/ACT lamp On indicates the correct interconnected link



Duplex supportive

JK-100D Series supports full/half duplex adaptive and 10/100M adaptive

Network cable



10/100Base-TX UTP 5

100Base-FX: single mode fiber8.3/125,8.7/125,9/125 or 10/125μm

Multimode fiber    50/125, 62.5/125 or 100/140μm

Transmission range



 10/100Base-TX100 m

100Base-FX2km (multimode)

25/40/60/80/100 km (single mode)

Optical interface feature



 Wavelength

1310nmsingle mode 25km,40km,60km

1550nm (single mode 80km, 100km)

1310/850nm (multimode 2km)

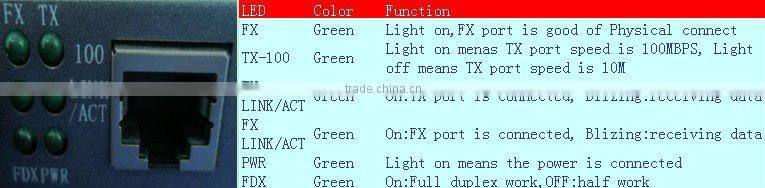

LED display

10/100M fiber media converter-SC

Power requirement



   Outside power supply: 5VDC 1A

  Power consumption: 5W

  Built-in power supply: 220VAC,-48VDC

  Power consumption: 5W

Interface configuration



    One RJ4510/100Base-TX interface

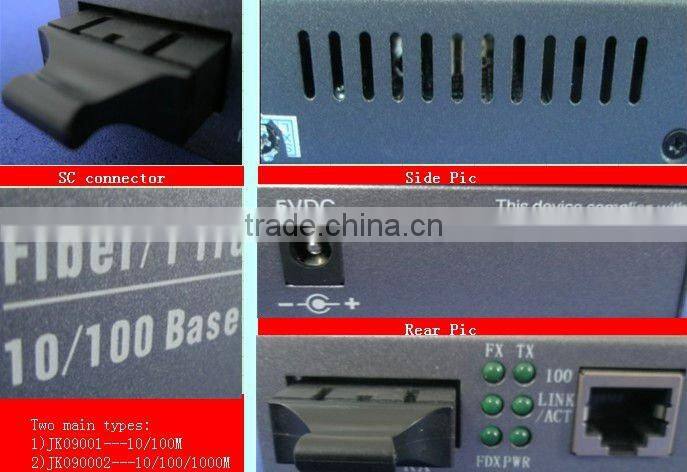

   One SC/ST/FC single/multi mode duplex connector

Dimensions



   Outside power supply: 26mm×71mm×94mm

  Inside power supply: 30mm×115mm×175mm



Environmental requirement





  Operating temperature range :0∼60

  Storage temperature range: -40∼85

  Relative humidity: 5%∼95%

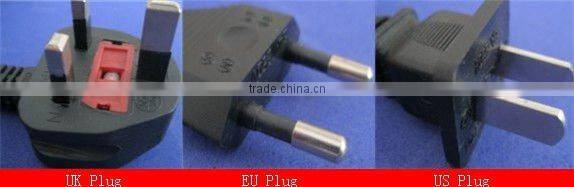

Available Plug types:

10/100M fiber media converter-SC
