Specifications
*Heat-Shrink Splice Protector Sleeve*Used in Fiber Optic Splice Tray
*Can be customised
*swift delivery

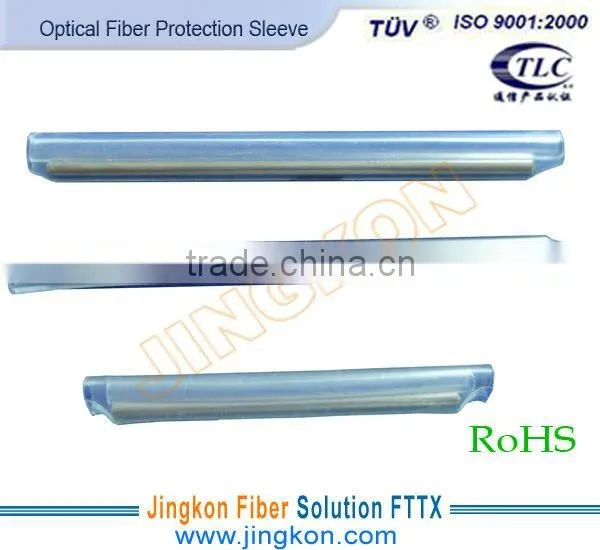

Fiber Optic Heat-Shrink Splice Protector Sleeve
Fiber optic splice sleeves are used on fiber glass joint point during the fiber optic fusion work, usually is after the fibers are melt, people use this splice protection tube on the melt point for further protection, its strengthen member inside the tube will make the fiber joint point stronger and it provide extra protection to the fiber joint point after the fiber optic fusion- it is waterproof and dust proof, and using such splice protection sleeves can reduce possible extra attenuations
Specification:
Shrinking Temperature (°C) |
100 ~ 130 |
Radial Shrinking Rate (%) |
>50 |
Axial Shrinking Rate (%) |
<10 |
Low Temperature Property |
No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) |
-55°C ~ + 135°C |
Normal Operature Relative Humidity |
≤95% |
Spark- over Strength (kV/mm) |
≥20 |
Tensile Strength (Mpa) |
20 |
Loss at -40°C |
0.03dB |
Loss at +60°C RH95% |
0.02dB |
Ordering Guide:

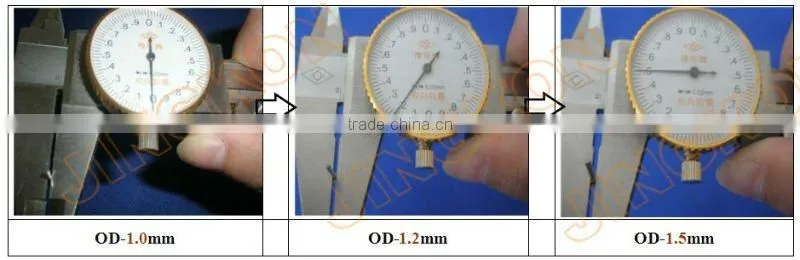

*OD 1.0mm,1.2mm/1.5mm available
*Nomal Length:30/40/60mm available
*OD and Length can be customised

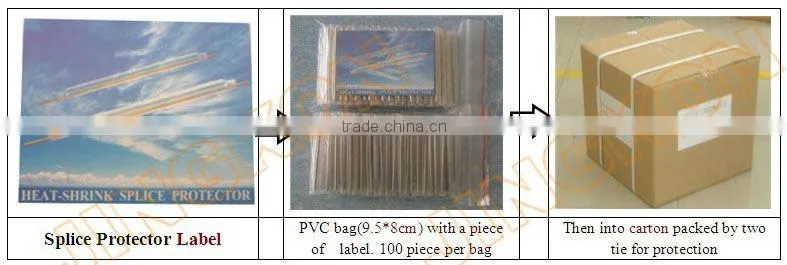

Package:
*Splice Protector Label
*PVC bag(9.5*8cm).
*100 pieces per bag
*then into carton
