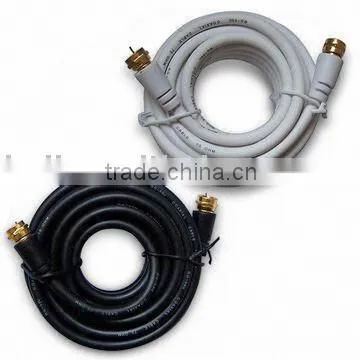

Help CenterRG6/U Coaxial Cable(RG6 Cable,Cable RG6,Coaxial Cable RG6 With Plug,used for Household TV System
Related Products
-
RG6/U Coaxial Cable(Coaxial Cable RG6/U,RG6 Cable) With Plug,used for Household TV SystemNegotiableMOQ: 30 Kilometers -
RG6 Standard Shielding Coaxial Cable With and Without Messenger,used for CATV,CCTV,Main TV Distribution SystemNegotiableMOQ: 30 Kilometers
-
RG6/U Coaxial Cable With Plug,used for Household TV SystemNegotiableMOQ: 30 Kilometers
-
RG6 Coaxial Cable(RG6 Cable) With and Without Messenger,used for CATV,CCTV,Main TV Distribution SystemNegotiableMOQ: 30 Kilometers
-
17 VATC Coaxial Cable With and Without Messenger,used for CATV,CCTV,Main TV Distribution SystemNegotiableMOQ: 30 Kilometers
Specifications
RG6 Coaxial cable--- 1.02mmCCS,4.67mmFPE , 6.8PVC with ConnectorKey Specifications:
Center conductor: 1.02mm BC(18 AWG)
Dielectric: 4.7mmFPE
Shielding foil: Al Foil
Outer conductor: 96 *0.12mm AL-mg
Jacket: 6.8mm PVC
Cable length can be 10m,15,17m,25m,35m
or according to the customer's request
BC: bare copper
Al: aluminum
PVC: polyvinylchlorid
AL/pet: aluminum/polyester tape foil
P/FPE/P: HDPE inter skin, foamed polyethylene and HDPE outer skin
Impedance: 75 ±3 ohms
Notes:
Center conductor: TC, BC, CCA and CCS are available
Insulation: FPE and HDPE
Al-foil: Al/pet, Al/pet bonded, Al/pet/AL and Al/pet/AL bonded are available
Braiding wire: TC, BC, CCA and Al-MG are available
Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 and 0.18mm available
Braiding net: 48, 64, 72, 80, 96, 112 and 128 are available
Braiding coverage: between 30 to 100% available
PVC: 60, 65, 70 and 75 degrees, white, black and other colors are available
F--Connector:female--male;both of them are female
Operating temperature range: 20 to 75°C
Nominal mutual capacitance: © 1kHz to ≤ 56nF/100m
Flame test: CMX, CM, CMG and CMR
Nominal velocity of propagation: 85%
Maximum conductor DC resistance © 20 to 21.1Ω/100m
Certificates: ISO9000, CE and RoHS
