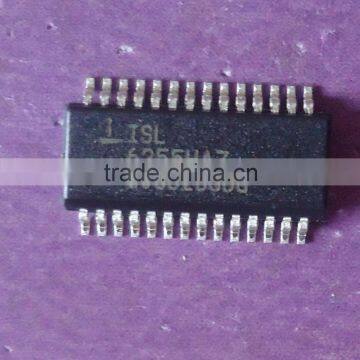

ISL6255HAZ 6255HAZ ISL6255 Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers

The ISL6255 and ISL6255A are highly integrated battery charger controllers for Li-Ion/Li-Ion polymer batteries. High efficiency is achieved by a synchronous buck topology and the use of a MOSFET, instead of a diode, for selecting power from the adapter or battery. The low side MOSFET emulates a diode at light loads to improve the light load efficiency and prevent system bus boosting.

The constant output voltage can be selected for 2, 3 and 4 series Li-Ion cells with 0.5% accuracy over temperature. It can also be programmed between 4.2V+5%/cell and 4.2V-5%/cell to optimize battery capacity. When supplying the load and battery charger simultaneously, the input current limit for the AC adapter is programmable to within 3% accuracy to avoid overloading the AC adapter, and to allow the system to make efficient use of available adapter power for charging. It also has a wide range of programmable charging current. The ISL6255 and ISL6255A provide outputs that are used to monitor the current drawn from the AC adapter, and monitor for the presence of an AC adapter. The ISL6255 and ISL6255A automatically transition from regulating current mode to regulating voltage mode.

ISL6255 and ISL6255A have a feature for automatic power source selection by switching to the battery when the AC adapter is removed or switching to the AC adapter when the AC adapter is available. It also provides a DC adapter monitor to support aircraft power applications with the option of no battery charging.

Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.

Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.

Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
