Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > INTERSIL ISL6236IRZ ISL6236 QFN High-Efficiency, Quad-Output, Main Power Supply Controllers for Notebook Computers

INTERSIL ISL6236IRZ ISL6236 QFN High-Efficiency, Quad-Output, Main Power Supply Controllers for Notebook Computers

Name: INTERSIL ISL6236IRZ ISL6236 QFN High-Efficiency, Quad-Output, Main Power Supply Controllers for Notebook Computers
Brand: INTERSIL
SKU: 129626085
Availability: InStock

Shenzhen Visen Electronic Co., Ltd.

INTERSIL ISL6236IRZ ISL6236 QFN High-Efficiency, Quad-Output, Main Power Supply Controllers for Notebook Computers thumbnail-1

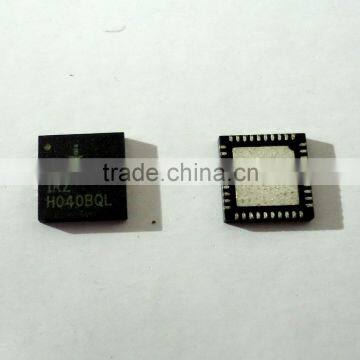

INTERSIL ISL6236IRZ ISL6236 QFN High-Efficiency, Quad-Output, Main Power Supply Controllers for Notebook Computers photo-1

US$ 0.5 - 2 MOQ: 1 Piece

Key Specifications

Get Latest Price

D/C:

10+

Package:

QFN

Model Number:

ISL6236IRZ

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SZ/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

D/C 10+

Package QFN

Model Number ISL6236IRZ

Type Drive IC

Brand Name INTERSIL

Place of Origin Taiwan, China

Product Description

The ISL6236 dual step-down, switch-mode power-supply (SMPS) controller generates

logic-supply voltages in battery-powered systems. The ISL6236 include two pulse-width modulation (PWM) controllers, 5V/3.3V and 1.5V/1.05V. The output of SMPS1 can also be adjusted from 0.7V to 5.5V. The SMPS2 output can be adjusted from 0V to 2.5V by setting REFIN2 voltage. An optional external charge pump can be monitored through SECFB. This device features a linear regulator providing 3.3V/5V, or adjustable from 0.7V to 4.5V output via LDOREFIN. The linear regulator provides up to 100mA output current with automatic

linear-regulator bootstrapping to the BYP input. When in switchover, the LDO output can source up to 200mA. The ISL6236 includes on-board power-up sequencing, the power-good (POK) outputs, digital soft-start, and internal soft-stop output discharge that prevents negative voltages on shutdown.

A constant ON-time PWM control scheme operates without sense resistors and provides 100ns response to load transients while maintaining a relatively constant switching frequency. The unique ultrasonic pulse-skipping mode maintains the switching frequency above 25kHz, which eliminates noise in audio applications. Other features include pulse skipping, which maximizes efficiency in light-load applications, and fixed-frequency PWM mode, which reduces RF interference in sensitive applications.

Terms

Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.

Packing & Delivery

Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.

Our Services

Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
