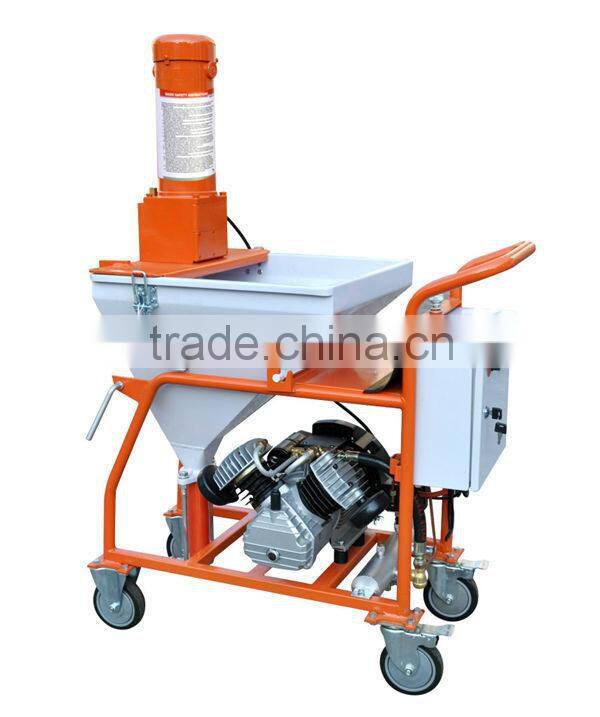

PUTTER PT3625 Professional Electric Plaster Spraying Machine

Ideal Uses

• Small to medium-sized housing
• Commercial buildings

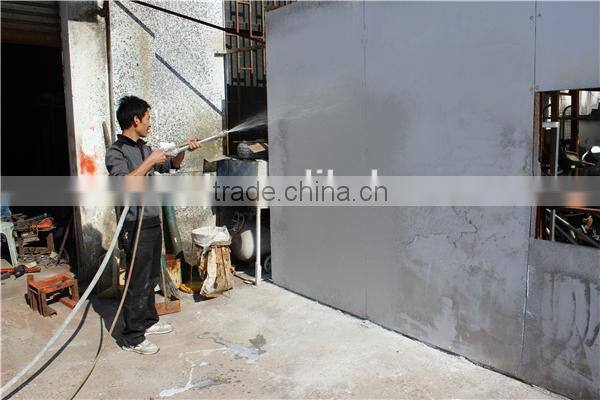

• Interior and exterior painting

Apply

• Putty powder for Interior and exterior walls
• White cement
• Artesian cement
• Interfacial agents
• Talcum powder
• Latex paint
• Common paint and fluid paint

Advantages

1. 1 KW motor &retarder:   drives the twister for material transportation.

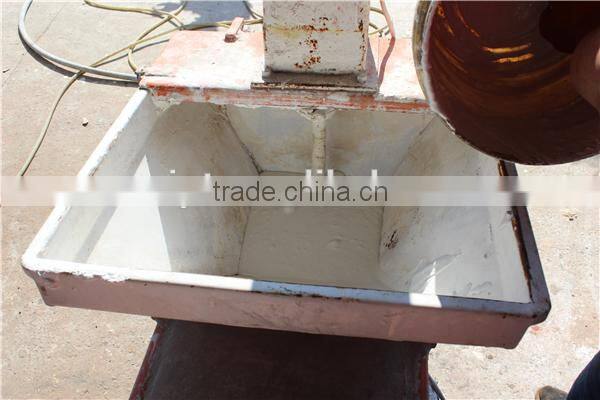

2. 25L material hopper:   for material storage.

3. Control box: the core of the machine, to drive the motor, and air pump.

4.  2.2KW Twin -piston air compressor with aluminum housing: offer enough air pressure for the atomization in

the spray outlet.

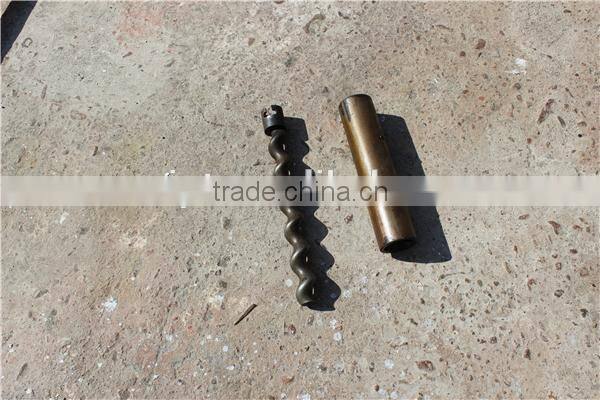

5. Spinning form twister&Screw Pump: the material will be transport to the outlet by the screw pump after the quick and even mixing by twister.

6. Cart with four wheels;  with high load bearing, resist pressure,solid drag link, multidirectional wheels, easy transportation

Technical Data

Tip Size:                         3,4,5,6mm

Max. Dispense Rate:      25lpm (6.6gpm)

Horse Power:                 3000W

Power Requirements:     220V/50Hz

Delivery Height:               3-15m

Delivery Distance:          1-40m

Hose Length:                  45m

Hopper Volume:             50L

Paint feed type:           puddle mixer

Max. Delivery Pressure:       20bar

Max. LPM:                            25lpm

One year warranty coverage against defects in material and workmanship.

THIS WARRANTY DOES NOT COVER:

Normal wear and/or defects caused by or related to abrasion, corrosion, abuse, negligence, accident, faulty installation or tampering in a manner which impairs normal operation.

Transportation costs and other incidental, direct, special, or consequential damages or loss.
