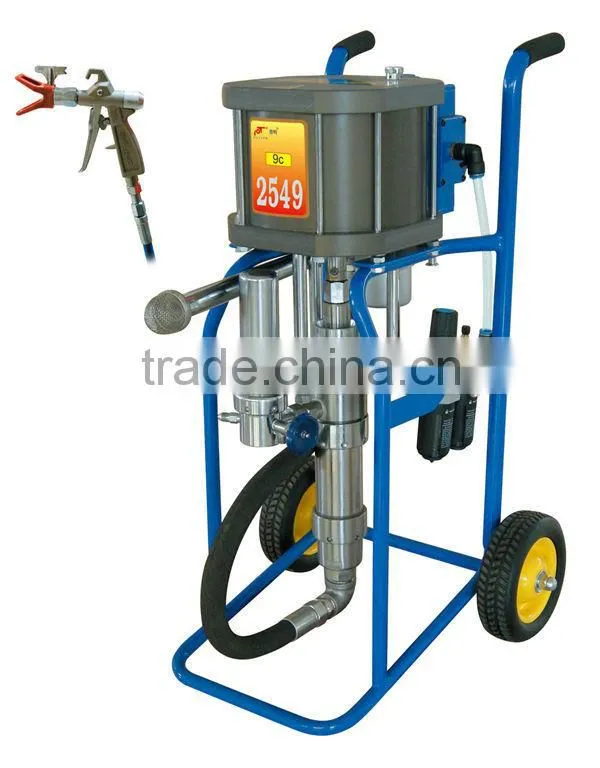

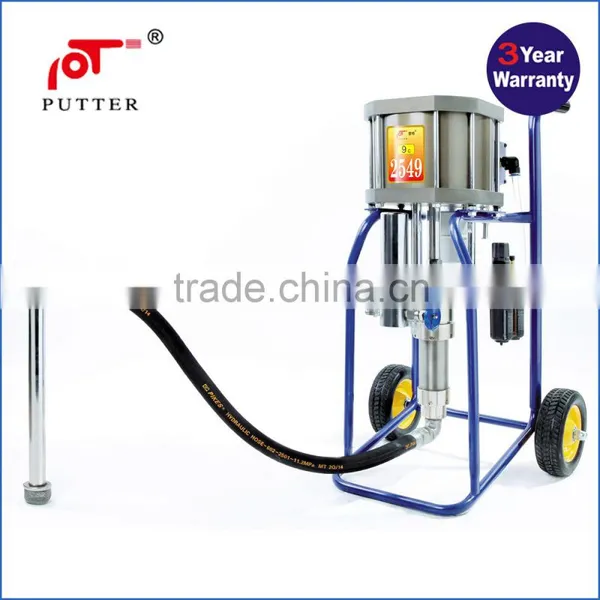

PT9c-2 Portable Pneumatic High Pressure Airless Paint Sprayer with CE Certificate
The PT9c-2 with CE certificate is a robust, versatile, high performance Airless Paint Sprayer, ideal for the professional.
Introduction:
Our factory is a individual proprietorship which is specialized in developing and producing high pressure airless sprayer for nearly 15 years.
The high pressure airless paint sprayer adopts microcomputer chip control, which is of high quality and stable operation. This series products feature for small in size, light weight, convenient to carry, low noise, strong pulverization effect, smooth and even coating, easy to operate, high capacity, etc.
Advantages:
l Compared with electric pump, pneumatic pump save three fourths repair cost for you.
l Highly abrasion-resistant piston pump.
l Driven by compressed air, it is safe and explosion- proof.
l High transfer efficiency for saving paint materials and being environmental-friendly.
l Very low maintenance ratio.
l Stable pressure with less pulsation to make for even coating and a perfect surface finishing.
l Applying a new silencer.
l Large output, long piston travel, slow reversing rate of drive system, there will be no sediment and hardened paints forming easily.
l Main components of pump is specialized for the characteristics of inorganic zinc coating to protect against malfunctions and abrasions.
l Compatible for two spray guns.
l Portable for use.
Technical Data:
Pressure ratio | 49:1 |
Max. free-flow output | 33.0lpm (8.7gpm) |
Air inlet pressure | 3-6bar (44-87psi) |
Air consumption | 100-1000lpm (26.4-264gpm) |
Diameter of air cylinder | 250mm (9.84in.) |
Dimensions | 520*580*960mm (1.7*1.9*3.15ft) |
N.W. | 65kg |
Pump Type | Pneumatic piston pump |
Includes:
Complete set of airless sprayer
Airless hand spray gun for zinc-rich coating
Rotating nozzle
High-pressure hose(8mm X 10m)
High-pressure hose(6mm X 2m)
Transition joint (M14X1)

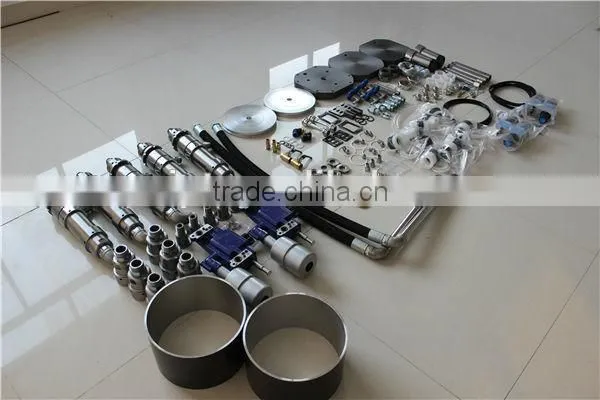

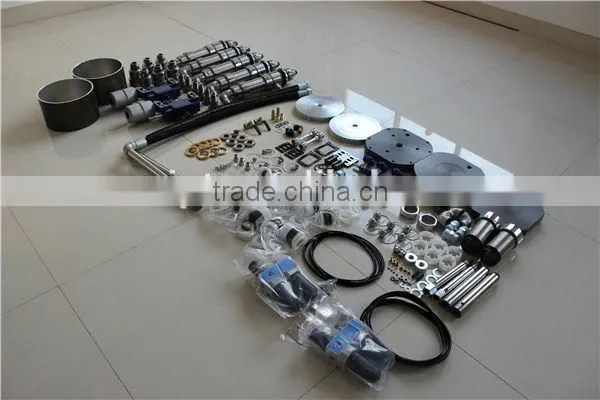

Spare parts supplied by manufacturer
Hook spanner 78-85
Hook spanner 55-62
Inner hexagon spanner 5mm
Inner hexagon spanner 6mm
Operational Manual
Product Qualification Certificate

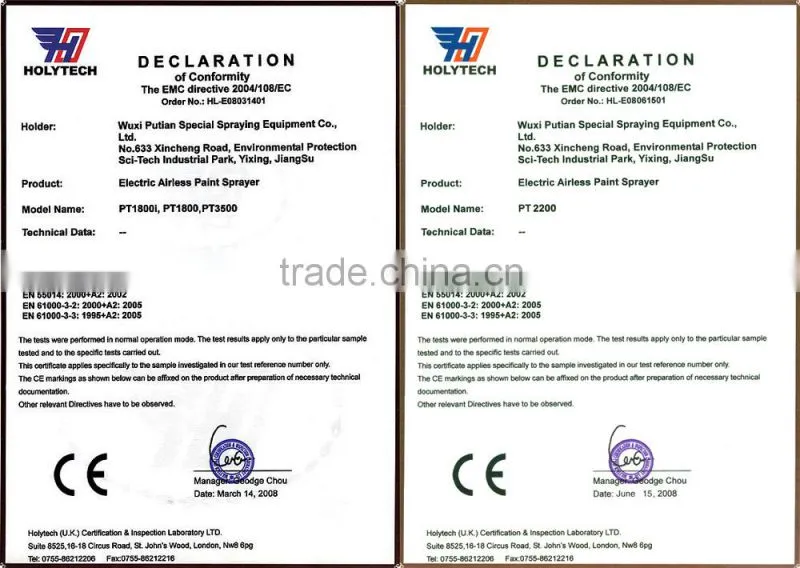

Accreditations:
The series of paint sprayer manufactured by us have passed ISO9001-2000 certification, as well as the CE certification.
Our products have been sold all over the word, such as Australia, Spain, Britain, Chile, Israel, Japan, South Korea, etc.

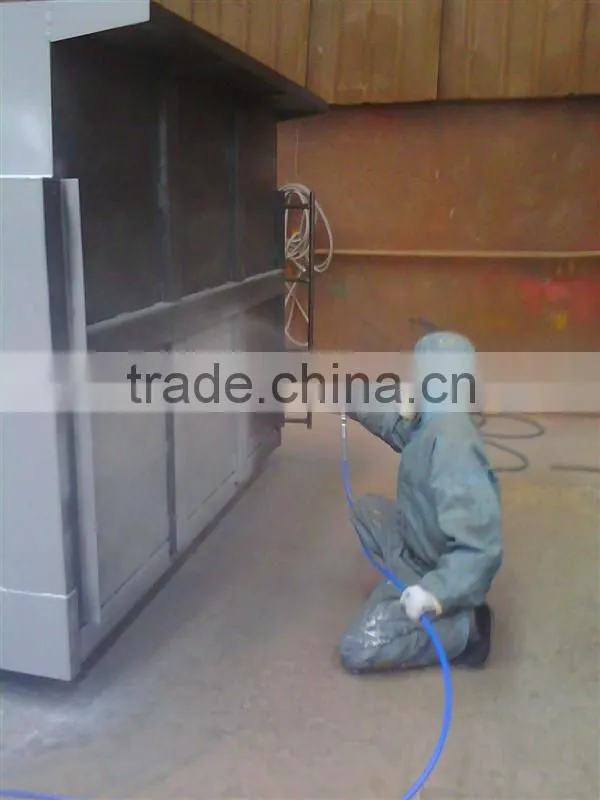

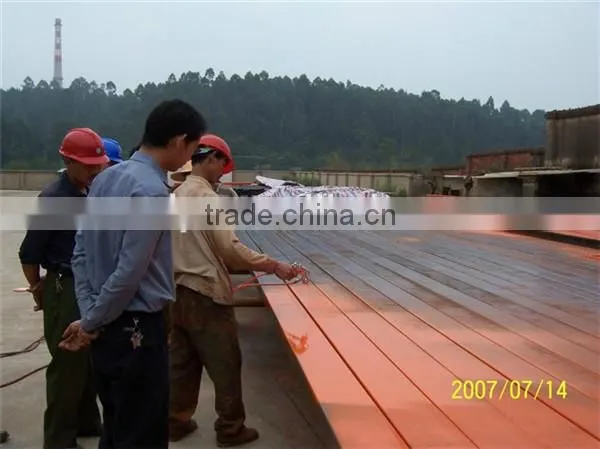

Ideal Uses:
l Steel structures, C-shaped section steel, Boats and ships
l Storage tanks, Bridges, Water locks
l Floor on ground, Railway vehicles
l Automobiles ,Trailers
l Containers, Pipelines
On Show:

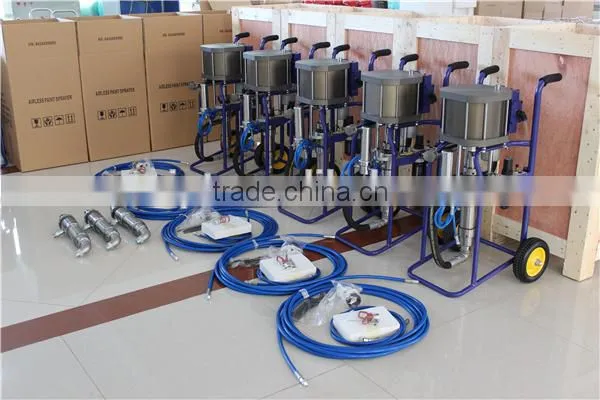

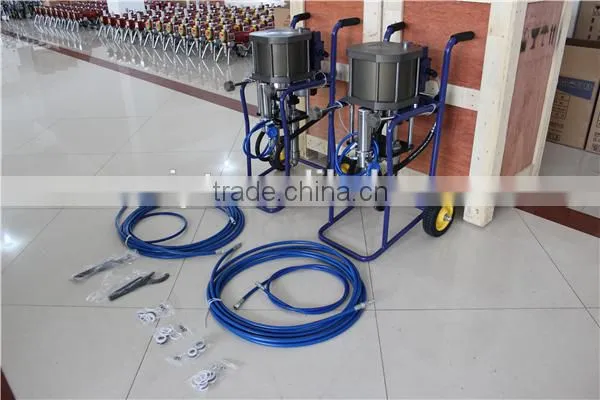

Package & Delivery:
