wall mounted bathroom fan heater

FOB Price

Negotiable / Piece

500 Pieces(Min.Order)

Supply Ability 40000 Piece / Pieces per Month
Port Shanghai port and all other main ports in China are also available
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Heater Type	Fan Heater	Heating Element	PTC
Installation	Ceiling, Wall Mounted	Certification	Other
Function	Deodorization, Lighting, Overheat Protection, Ventilation, Waterproof	Use	Bathroom, Other
Brand Name	WOFON	Model Number	WF-32E004-300*600

Product Description

Wall mounted bathroom fan heater

Specifications

Model:	WF-32E004-300*600
Faceplate Size:	300*600mm
Housing Height:	160mm
Power:	3200W
Air-interchange speed:	8m/s
Blowing wind speed:	>6m/s
Air extraction rate :	200 m³/h
PTC:	2600W
LED light Power:	12W

Features

Four In One Function

PTC air-heating;
Blowing cool wind;
Air-interchange;
LED lighting

1. Bathroom fan heater with exhaust fan.
2. Material:ABS V-0 high temperature resistant materias for the faceplate; PP V-0 materials for the back housing.
3. Pure-flat faceplate to fit all types of ceilings.
4. Thermal overheat protect.

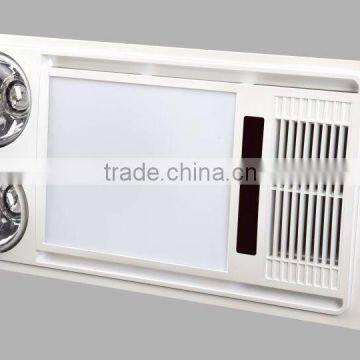

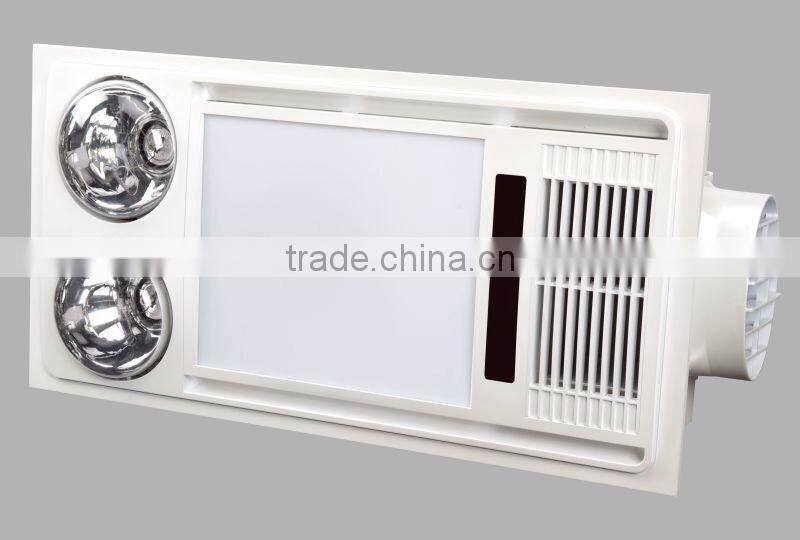

Product picture

Product details

Product	Model	Faceplate Size(mm)	Power	Function	Details
	WF-32D015-300*300	300*300	2040W	Four in One Function 1.PTC air-heating; 2.Blowing cool wind; 3.Air-interchange; 4.LED lighting	1.Air-interchange speed: 8m/s 2.Blowing wind speed:>6m/s 3.PTC:2000W 4.LED light Power:8W 5.Air extraction rate:200m m³/h
	WF-32D016-300*450	300*450	2450W		1.Air-interchange speed: 8m/s 2.Blowing wind speed:>6m/s 3.PTC:2400W 4.LED light Power:12W 5.Air extraction rate:200m m³/h
	WF-32D017-300*450	300*450	2450W
	WF-32E001-300*450	300*450	3000W	Five in One Function 1.PTC air-heating; 2.Light-heating; 3.Blowing cool wind; 4.Air-interchange; 5.LED lighting	1.Air-interchange speed: 8m/s 2.Blowing wind speed:>6m/s 3.PTC:2400W 4.LED light Power:8W 5.Air extraction rate:200m m³/h
	WF-32E002-300*450	300*450	3000W
	WF-32D018-300*450	300*450	2650W	Four in One Function 1.PTC air-heating; 2.Blowing cool wind; 3.Air-interchange; 4.LED lighting	Air-interchange speed: 8m/s Blowing wind speed:>6m/s PTC:2600W LED light Power:18W 5. Air extraction rate:200m m³/h
	WF-32D019-300*600	300*600	2650W
	WF-32E003-300*600	300*600	3200W	Five in One Function 1.PTC air-heating; 2.Light-heating; 3.Blowing cool wind; 4.Air-interchange; 5.LED lighting	Air-interchange speed: 8m/s Blowing wind speed:>6m/s PTC:2600W LED light Power:12W 5.Air extraction rate:200m m³/h
	WF-32E004-300*600	300*600	3200W
	WF-32D020-300*450	300*450	2450W	Four in One Function 1.PTC air-heating; 2.Blowing cool wind; 3.Air-interchange; 4.LED lighting	Air-interchange speed: 8m/s Blowing wind speed:>6m/s PTC:2400W LED light Power:12W 5.Air extraction rate:200m m³/h
	WF-32D021-300*450	300*450	2450W

Packing and loading

Model	Product Size(mm)	Packing	Packing size	FCL Qty for a 20'GP(pcs)
WF-32D015-300*300	300300160	4pcs/carton	525450755	576
WF-32D016-300*450	300450160	4pcs/carton	675450755	432
WF-32D017-300*450	300450160	4pcs/carton	675450755	432
WF-32E001-300*450	300450160	4pcs/carton	675520755	396
WF-32E002-300*450	300450160	4pcs/carton	675520755	396
WF-32D018-300*450	300450160	4pcs/carton	675450755	432
WF-32D019-300*600	300600160	4pcs/carton	815450755	360
WF-32E003-300*600	300600160	4pcs/carton	815520755	336
WF-32E004-300*600	300600160	4pcs/carton	815520755	336
WF-32D020-300*450	300450160	4pcs/carton	675420755	468
WF-32D021-300*450	300450160	4pcs/carton	675420755	468
