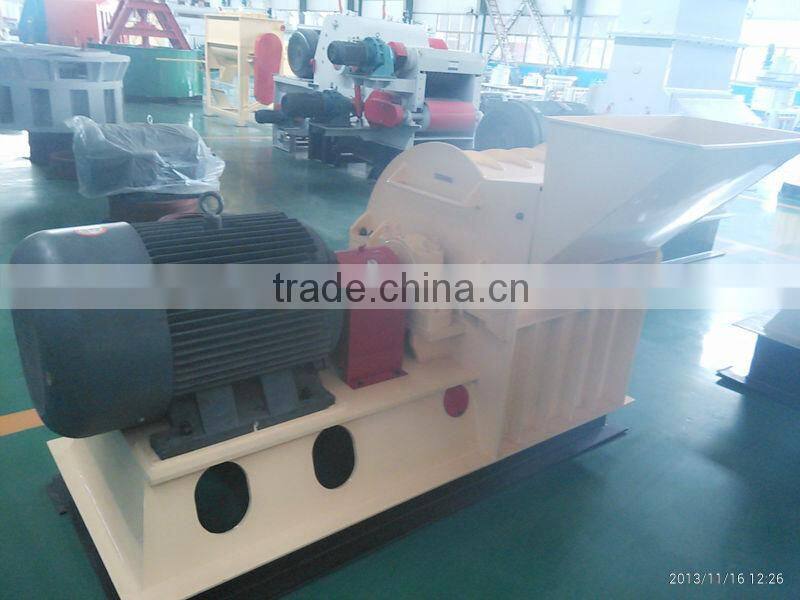

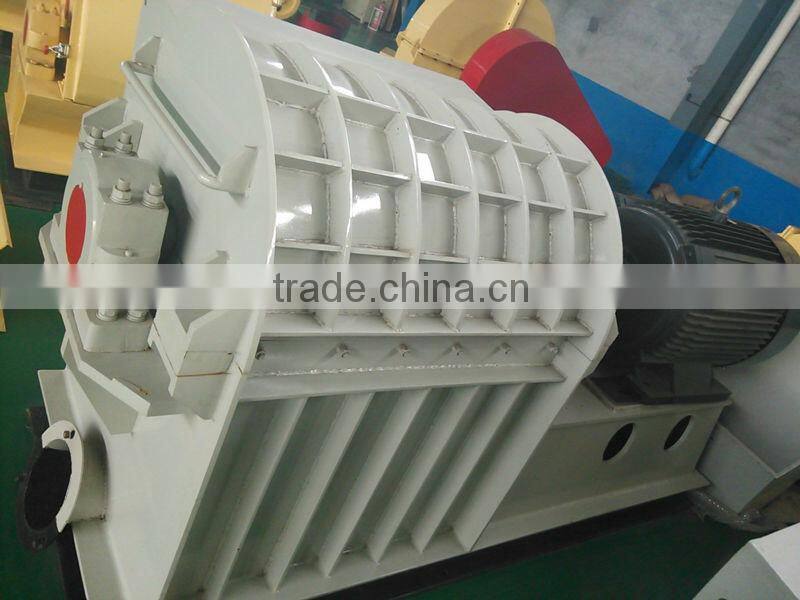

Help CenterSG65*55 Hammer Mill Grinder
Related Products
-
Wood Shavings Hammer MillUS$ 1 - 29,999MOQ: 1 Set -
Wood Furniture Waste Sawdust Crusher 1-2t/hUS$ 1,000 - 78,000,000MOQ: 1 Set
-
SG40 Hammer Mills for Sale 7.5kwUS$ 1,500 - 2,000MOQ: 1 Set
-
1-2ton/h Wood Shredder Machine PriceUS$ 900 - 160,000MOQ: 1 Set
-
Napier Grass ShredderUS$ 1 - 99,999MOQ: 1 Set
Specifications
hammer mill grinderThe crushed powder is 2-8mm.
The dry biomass material
With CE & ISO certificate.
Introduction of feed hammer mill : The hammer grinder also named hammer crusher, and crushes materials by the collision between the high-speed hammer and materials.
The capacity demands on the raw materials, such as the the moisture of raw materials, the fibre in the raw materials. For the hammer mill, the dry materials, the crushing efficience is much better, generally water ratio is less than 15%. The different model, the hammer quantity is also not same; the hammers, sieve and axle are made by our CNC system, they are very high-quality products. The hammer mills are with blower, cyclone, airlock as the dust-collecting machines, reduce the dusts
during crushing process.
Hammer grinder possesses qualities of simple structure, large reduction ratio, and high-efficiency.
Model |
Power (kw) |
Capacity (t/h) |
Hammer Qty (piece) |
Weight (T) |
Dimension (mm) |
Note |
SG40 |
7.5 |
0.1-0.3 |
12 |
0.27 |
1310×800×1070 |
Φ2-6mm |
SG50 |
15 |
0.2-0.4 |
16 |
0.45 |
1380×800×1010 |
Φ2-8mm |
SG65X27 |
22 |
0.5-0.8 |
24 |
0.95 |
1900×800×1100 |
Φ3-8mm |
SG65X55 |
37-55 |
1-2 |
48 |
1.5 |
2100×1000×1100 |
Φ3-8mm |
SG65X75 |
55-75 |
2-3 |
72 |
2.0 |
2100×1700×1500 |
Φ4-12mm |
SG65X100 |
90-110 |
3-4 |
96 |
2.8 |
2200×1800×1600 |
Φ4-12mm |
SG130X55 |
160 |
5-6 |
80 |
5.3 |
2800×1620×2100 |
Φ4-12mm |
SG130X100 |
220 |
7-8 |
160 |
6.8 |
3020*1620*2170 |
Φ4-12mm |
