Specifications

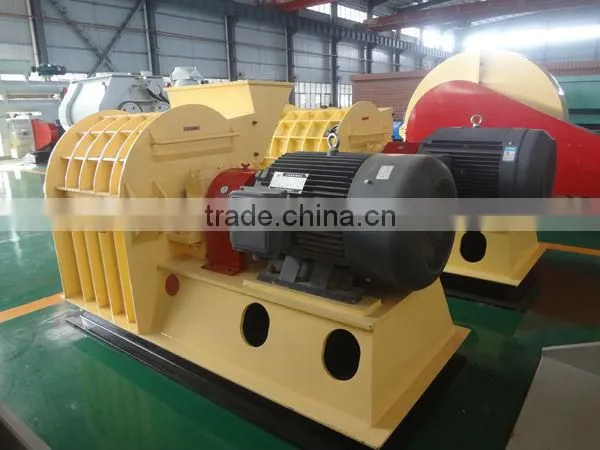

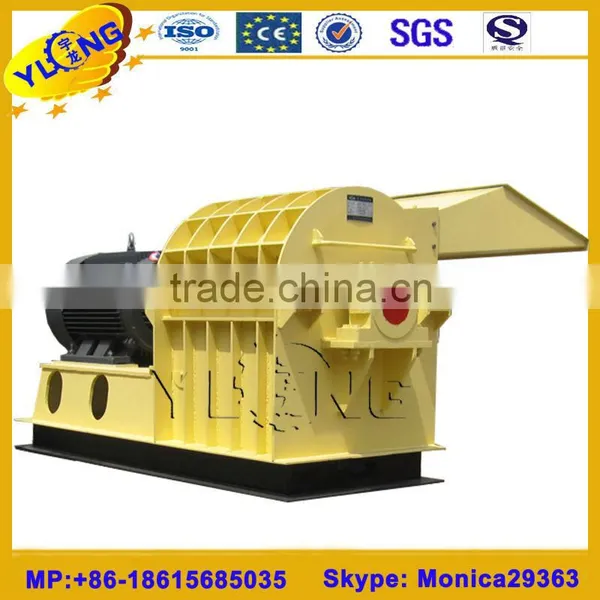

1.multifunctional hammer mill:1-2ton/h2.make powder from wood chips,stalk,straw etc.
3.37kw
4.CE,ISO9001
5.hot sell 20001
Multifunctional wood hammer mill application:
Multifunctional wood hammer mill can crush wood chips, all kinds of wood waste, straw, stalk, grass, rice husk, bamboo, palm fiber, PVC forming board and other biomass material into 2-8mm fine powder before making pellets.
Multifunctional wood hammer mill working principle:
Several group of hammers rotate by the transmission of power, after reach a certain speed, the feeding raw material was crushed repeatedly. The fine powder after crushed will be discharge from the sieve of hammer mill through the air fan help. When discharge, the hammer mill need the help of air fan and cyclone, the centrifugal force made by hammer mill rotor not enough for discharge.
Multifunctional wood hammer mill note:
1. Before crushing, The raw material length and width should be better between 3-5cm, the thickness should be better smaller than 2cm.
2. Before crushing, raw material moisture should be smaller than 20%.
3. The bigger the feeding material dimension, the smaller the capacity.
Multifunctional wood hammer mill characteristics :
1. Structure is reasonable, the rotor of multifunctional wood hammer mill are all through the dynamic balance test, machine can stable working when operation.
2. The outer skin of multifunctional wood hammer mill will be add stop-off strip, ensure the hammer mill stability when working.
3. Multifunctional wood hammer mill top of inlet welded with rebar, increase the production efficiency. Its function: A. Increase the collision rate, thus increase the capacity. B. Protect the screen.
4. Multifunctional wood hammer mill has upward and one side two kinds feed hopper according to the dimension of raw material. If raw material is little big, such as small branches, straw, stalk, can use feed hopper one side hammer mill.
5. Multifunctional wood hammer mill can add water cooling system, cool the machine when working, ensure the machine stability. The function fit for PVC forming board material.
6. Multifunctional wood hammer mill spare part hammers and screen are made by CNC system, through high technical heat treatment, we can ensure its high precision and durable working efficiency.
Multifunctional wood hammer mill technical parameter:
Model | Capacity(t/h) | Power (kw) | Weight (t) | Dimension (mm) | Hammer Quantity |
SG40 | 0.1-0.3 | 7.5 | 0.27 | 1310*800*1070 | 12 |
SG50 | 0.2-0.4 | 15 | 0.45 | 1380*800*1010 | 16 |
SG65*27 | 0.6-1.0 | 22 | 1.1 | 1500*1000*1100 | 24 |
SG65*55 | 1-2 | 45 | 1.5 | 1700*1000*1100 | 48 |
SG65*75 | 1.5-2 | 75 | 1.9 | 2100*1000*1100 | 72 |
SG65*100 | 2-3 | 110 | 2.3 | 2400*1000*1100 | 90 |
