17" IR touch screen
- 5000 Piece / Pieces per Month
- Shenzhen
- T/T D/P D/A Credit Card
- Wall mounting bank ATM machine with cash acceptor and receipt printer
- 15 inch touch screen HD monitor split screen TFT lcd monitor
- 3 days ready for shipment cheap touch screen kiosk
- Best Seller Big Size Free Standing Cheap Lobby Information Inquiry Touch Screen Kiosk with Windows or Android O/S
- Queue ticket dispenser kiosk
- 19" Dual Screen Payment Machine with Coin Acceptor and Cash Acceptor
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GreenTouch | Model Number: | GT-IR-T17 |
Product Description
Multi Infrared/IR Touchscreen/Touch frame
Our direct contact method:Skype-greentouch4
Product Features:
- 1. Double-point write with peace,precise multi-point touching.
- 2. USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
- 3. Longevity of service ,maintenance free.
- 4. Aluminum alloy shell with strong stability.
- 5. Tempered glass with high light transmittance and true color rendition.
- 6. Without driver ,supporting plug and play.
- 7. Adapt to internal and external linked environment.
- 8. No touching tools,no special touching pen is required ,only your finger.
- 9. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and
other undesirable phenomena
Specifications
Touch Technology | Infrared Touch |
Performance |
|
Resolution(Interpolation) | 4096*4096 |
Resolution(Interpolation) | 16:9,16:10,4:3 |
Linearity Error | 1.5mm |
Response Speed | <15ms |
Mechanical |
|
Input Method | Finger, gloved hand, or opaque object |
Touch Times | Unlimited |
Touch Activation Force | No minimum touch activation force is required with IR touch |
technology | |
| |
Minimum Touch Object | 5mm |
Environmental suitability |
|
Temperature | Operating: -20°C ~ 70°C |
| Storage: -40°C ~ 85°C |
Relative Humidity | Operating: 90%(non-condensing at max 40°C) |
| Storage: 90%(non-condensing at max 40°C) |
Altitude | Up to 3,000m |
Life Time | At least 7-year |
Electrical |
|
Scan frequency | 60Hz |
Communication interface | USB 2.0 or RS232 |
type |
|
Output Format | Coordinate output |
Touch Accuracy | 2MM(Over 90%Area) |
Operation Voltage | Typical +DC 5V, +4.75V to +5.25V |
Power Supply | USB, power ripple max.200mV rms |
Power | <2W, operating current<200mA |
Agency Approvals | CE, FCC Class B |
Operatin current | <180mA |
Application
- • TV
- • PC
- • Gaming device
- • Exhibition
- • Education training
- • Pubic query machine
- • Self-service machine
- • Map directory
- • Any interactive machine
- • And more

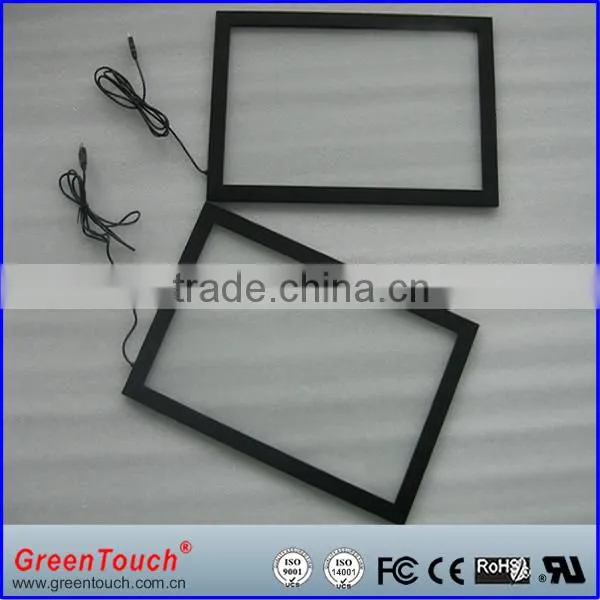

Product show
Infrared Touch Panel Working Principal
IR Touch Screen is a touch frame which is usually installed in front of the display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation
What is "Multitouch"?
Multi-touch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.Our Touch Frame is famous for introducing multi-touch to the game machine,KIOSK interactive display,Advertising Display in the world by using it to allow pinching and stretching gestures on the screen to control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.
How does it work?
An infrared touchscreen uses an array of X-Y infrared LED and photo detector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. These
LED beams cross each other in vertical and horizontal patterns. This helps the sensors pick up the exact location of the touch. A major benefit of such a system is that it can
detect essentially any input including a finger, gloved finger, stylus or pen. It is generally used in outdoor applications and point of sale systems which can not rely on a conductor
(such as a bare finger) to activate the touchscreen. Unlike capacitive touchscreens, infrared touchscreens do not require any patterning on the glass which increases durability and optical clarity of the overall system. Infrared touchscreens are sensitive to dirt/dust that can interfere with the IR beams, and suffer from parallax in curved surfaces and accidental press when the user hovers his/her finger over the screen while searching for the item to be selected.
GreenTouch IR touch screen Category
IR touch screen certificates:
Package
Delivery and Payment:
Factory show:
