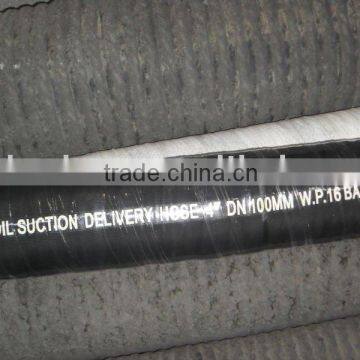

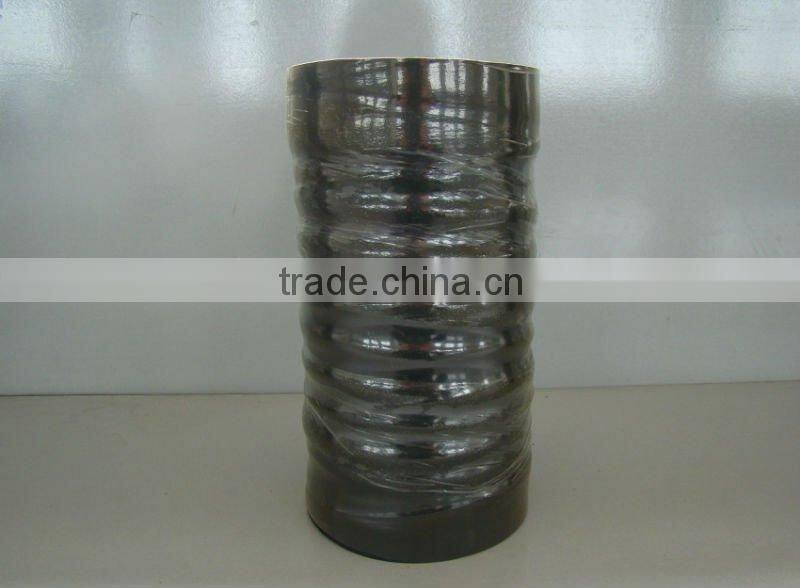

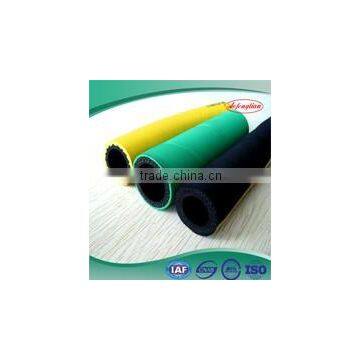

Help Center16bar Oil-resistant Suction Rubber Hose
Related Products
UES:
Be applicable to suck or transport gasoline,kerosene,diesel ,engine oil,heavy oil and other mineral oils at normal temperature.
CHATACTERISTICS:
The hose has doubel properties of bearing both positive and negative pressures,can be used normally under the pressure of -80kpa (600mm mercury)at the vacuum.The hose can't be flat under pressure and can't be off from the layer ,and has good bending properties.The body is solid and is capable of adapting to working conditions.
Inside Diameter | Layer | Working pressure Mpa(kg/cm2) | Normal | Max | ||
Size | tolerance | M | tolerance | |||
25 | ±0.3 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
32 | ±0.3 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
38 | ±0.3 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
45 | ±0.3 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
51 | ±0.3 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
64 | ±0.5 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
76 | ±0.5 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
89 | ±0.5 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
102 | ±0.8 | 4 | 1.0(10) | 20 | ±0.1% | 40 |
127 | ±1.0 | 4 | 1.0(10) | 10 | ±0.1% | 20 |
152 | ±1.0 | 6 | 1.0(10) | 10 | ±0.1% | 20 |
203 | ±2.0 | 8 | 1.0(10) | 10 | ±0.1% | 20 |
254 | ±2.0 | 10 | 1.0(10) | 10 | ±0.1% | 20 |
