Interactive Touch Foil Manufacturer

Interactive Touch Foil Manufacturer photo-1

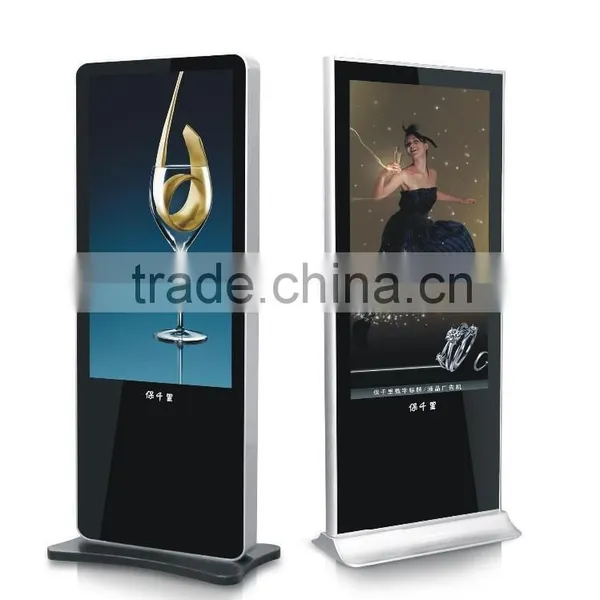

Interactive Touch Foil Manufacturer photo-2

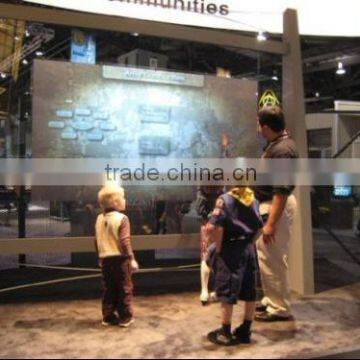

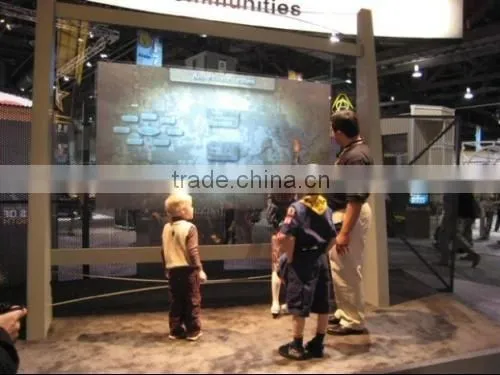

Interactive Touch Foil Manufacturer photo-3
US$ 1 - 120 MOQ: 1 Piece
Key Specifications
Get Latest Price
Style:
Wall Mounted
Material:
Other, Capacitive film
Format:
16:9
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Style Wall Mounted
Material Other, Capacitive film
Format 16:9
Portable Yes
Brand Name GreenTouch
Model Number GT-DTF-27
Place of Origin Guangdong, China



interactive touch foil manufacturer



Interactive/Capactive touch foil (17”-120”)

Our way of contact (Skype: greentouch4)



Product Description





interactive touch foil manufacturer

    Interactive touch foil is transparent touch-sensitive film, affixed to the membrane in the back of the glass or transparent acrylic plate, glass or acrylic panels can instantly transform size touch screen. Only a few microns thick our thin film display screens can turn any surface into a high definition multi media display surface. Rear projected images, video and dynamic media content can be displayed in any format, anywhere.

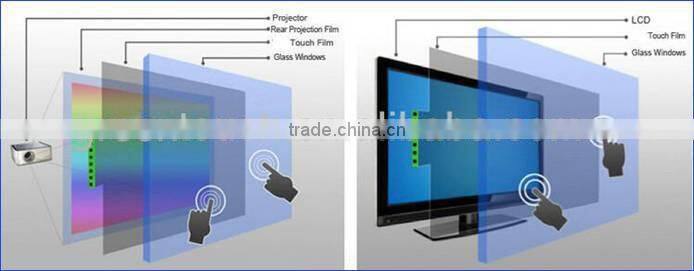

   our touch foil can be pasted on a glass window or inside of a glass door and a simple back-projection or front-projection projector can turn the glass window or glass door into a large touch screen. This film enables projection of product information directly on the glass to attract interactivity with the potential customers. It is a perfect promotional display that not only provides interactive promotion and customer experience around the clock but also records the interactive data from potential customer



Interactive touch foil type :

Touch foil type for paste

Tail version

Touch controller

Foil ratio

Touch points

Water-adhesive (removable)

Base or bottom

USB interface

16:9 (17”-115”)

2,4,10,20,40 points

Adhesive (permanent)

Side or base

USB interface

4:3 (17”-115”)

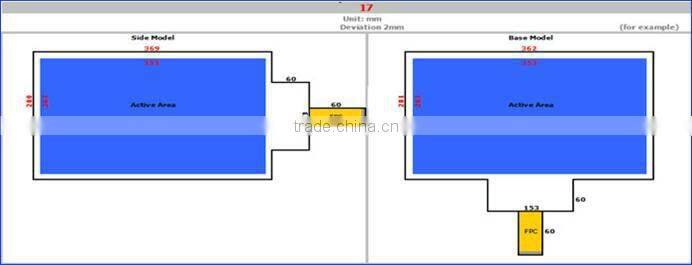

Two-point touch:

interactive touch foil manufacturer

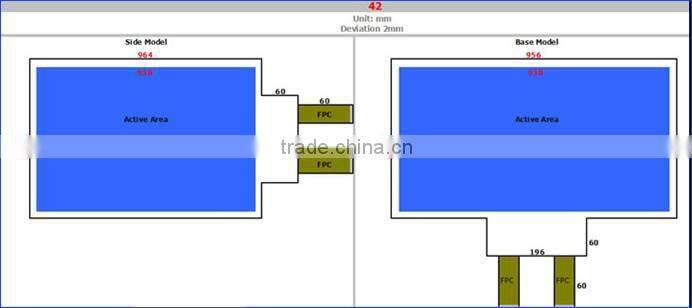

Mult-point touch:

interactive touch foil manufacturer



Interactive touch foil advantage:

1. Super-thin,and transparent appearance

2. High definition, Stable touch

3. Well-positioned ,and support multi-touch points

4. Through the glass or other objects to touch just like gesture

5. The size can be customized



Interactive touch foil application:

Suitable for Store window displays,

Indoor / outdoor kiosks,Exhibitions,

Visitor attractions,

Museums Touch tables,

Training,meeting rooms,etc.



interactive touch foil manufacturer



Interactive touch foil more specification:

 Induction method

  The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix

 Touch size

  17"~120" can be customized

 Touch accuracy

  No drift, the deviation is about 1~3mm

 Calibration way

  software calibration

 Induction thickness (penetration)

 Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness about of 25mm

 Scanning frequency

  60Hz~130HZ

 Output way

  USB 2.0 (HID public interface to USB Mini B interface)

 Compatibility system

 WIN7 /WIN8 /Linux (Ubuntu 2.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel version>A20->3.3.0,RK3188->3.0.36) etc.

 Temperature range

  -20°C~60°C

 Humidity range

  0% RH to 95% RH (without condensation neighborhood)

 Transmittance

  >93%

 Power consumption

  Max 0.5W

 Product Certification

  CE,FCC,ROHS

 EMC

  EN61000-6-1:2007   EN61000-6-3:2007+A1:2011

 The thickness glass

 1-12mm

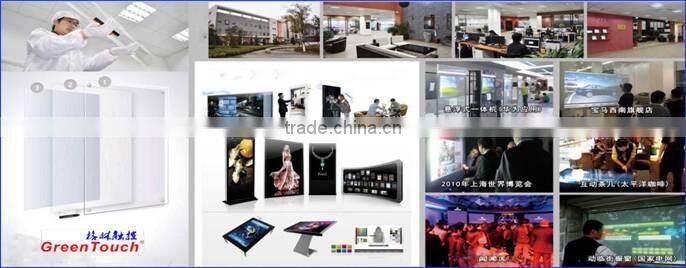

Interactive touch foil pictures show:

interactive touch foil manufacturer

                                                               interactive touch foil manufacturer



interactive touch foil manufacturer

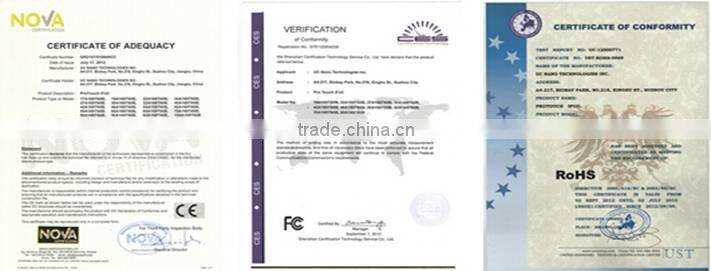

Interactive touch foil certificate:



interactive touch foil manufacturer

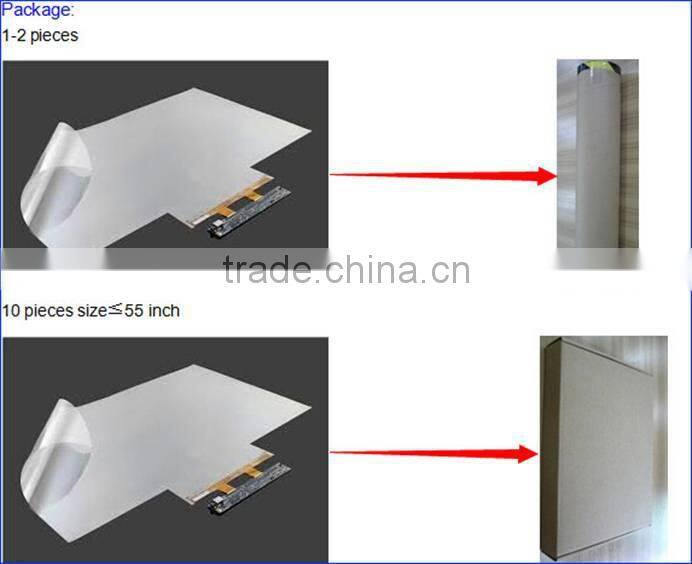

Packaging & Shipping



interactive touch foil manufacturer

interactive touch foil manufacturer

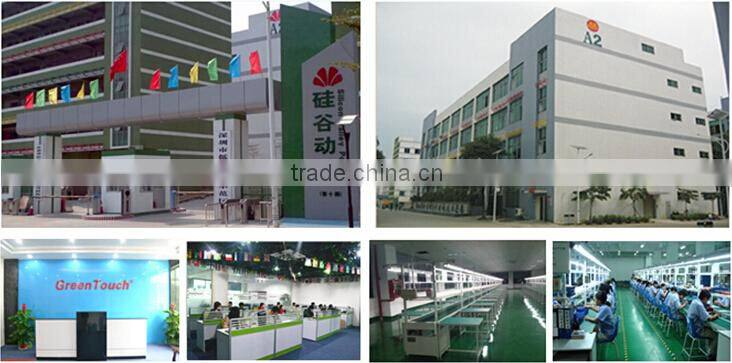

Company Information





interactive touch foil manufacturer



Welcome to our factory!Welcome to contact me!
