Use:
Used for synthetic mining,

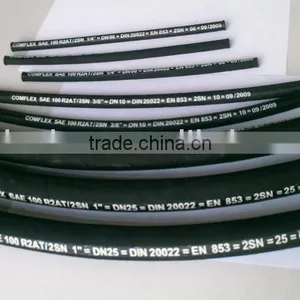

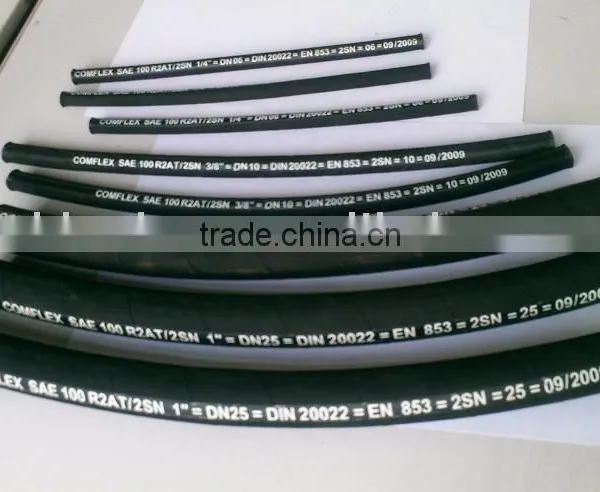

we can produce SAE100R1/R2AT,EN 853 1SN/2SN
USE:
Used for synthetic mining,equipment of hydraulic hold and transport pressure for hydraulic system transport high pressure liquid and hydraulic converying for engineering project ,over-loading transportion,metallurgy forging and pressing,mining equipment,ships,plastic-filling machines,farm machines,all kinds of machines and the mechanizationof industrial sectors,automation system.The mediu which it transports is hydraulic oil,fuel oil,lubricant and air.The range of the temperatureis -40 to +100.
Characteristics:
1.The layer is made of the special kind of sythetic rubber ,which has the properties of oil-resistance,heat-resisitance,and aging-resistance.
2.The tube can bear high pressure having the superior pulse property.
3.The tube combination is colse,soft hard to transform under pressure.The hose has the properties of anti-bending and anti-fatigue.
4.The hose is very long,the length can reach tens of meters or even over 100 meters.
Inside diameter |
Reinforcement diameter |
Outside diameter |
Working Pressure |
Alloqable working pressure Mpa |
Burst Pressure Mpa |
Min.Bend Radius mm |
Weight kg/m |
|
Mm |
Inch |
max |
max |
max |
max |
min |
||
4.8 |
3/16 |
11.1±0.3 |
16.2±0.3 |
35 |
56 |
140 |
89 |
0.32 |
6.4 |
1/4 |
12.7±0.3 |
17.8±0.3 |
35 |
56 |
140 |
102 |
0.36 |
7.9 |
5/16 |
14.3±0.3 |
19.3±0.3 |
32 |
50 |
128 |
114 |
0.45 |
9.5 |
3/8 |
16.7±0.3 |
21.7±0.3 |
28 |
45 |
112 |
127 |
0.54 |
12.7 |
1/2 |
19.8±0.3 |
24.9±0.3 |
25 |
40 |
100 |
178 |
0.68 |
15.9 |
5/8 |
23.0±0.3 |
28.1±0.3 |
20 |
32 |
80 |
203 |
0.80 |
19.0 |
3/4 |
27.0±0.3 |
32.0±0.3 |
16 |
26 |
64 |
241 |
0.94 |
22.2 |
7/8 |
30.2±0.3 |
35.2±0.3 |
14 |
22 |
56 |
279 |
1.20 |
25.4 |
1 |
34.9±0.3 |
40.4±0.3 |
14 |
22 |
56 |
305 |
1.35 |
31.8 |
1.1/4 |
44.4±0.3 |
51.9±0.3 |
11 |
18 |
44 |
419 |
2.15 |
38.1 |
1.1/2 |
50.8±0.3 |
58.2±0.3 |
9 |
14 |
36 |
508 |
2.65 |
50.8 |
2 |
63.5±0.3 |
70.9±0.3 |
8 |
12 |
32 |
635 |
3.42 |
