Help CenterOptical Fiber Pen/ Red Laser Pointer for Fiber Test
Related Products

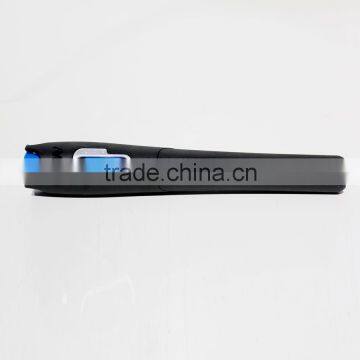

BML-206 pen style visual fault detector is small but powerful visual fault locator, with output power up to 30 MW, can be used to locate sharp bends and in the hydrostatic or bare fiber, it can also be used to identify connectors and splicing operation to identify the fiber distribution frame.
Product Features
650nn at the bright red laser
Pulsed and continuous-wave operation
It can work for 50 hours (1mW)
Standard AA alkaline batteries
Quickly locate the break point
Rugged, waterproof design
2.5mm universal interface
Different power corresponding to different distances
Specification |
BML-206 BML-206-1 BML-206-10 BML-206-15 BML206-20 BML206-25 BML206-30 |
Output Power > 1mW > 10mW > 15mW > 20mW >25mW >30mW |
Dynamic Distance > 5 km 8~10 km 12~14 km 15~17 km 18~20 km 25~30 km |
Wave length 650nm 20nm |
Operating mode Pulse 2Hz and CW |
Port 2.5mm or 1.25mm |
Dimensions |
Size(LxWxH)175mm *26mm * 26mm |
Weight 50g |
Storage Temperature -20 -- +60℃, < 90%RH |
Operation Temperature -10 -- +50℃, < 90%RH |
Packing |

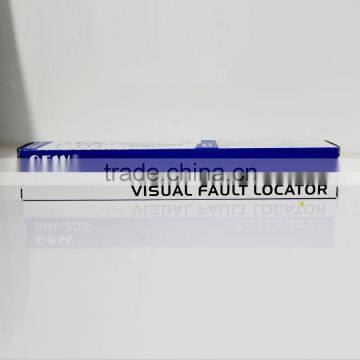

Packing box X1(operation guide is printed on the box) |
l Company Introduction

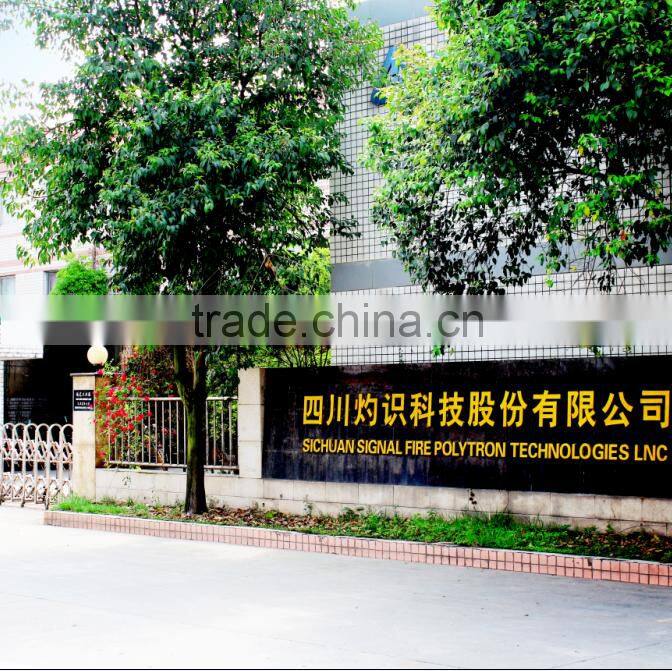

Signal Fire Technology Co.,Ltd. is a high-tech enterprise which is specialized in research and development, production and sales of communications products. Registered capital is 10 million US Dollars. The main products is optical fiber fusion splicer which is widely used in China Telecom, China Mobile, China Unicom, broadcasting, electricity, railways, petrochemical, military, coal industry, research institutions and other fields.

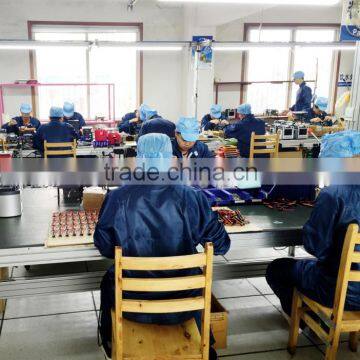

Our company has a modern production plant and standardized office buildings, with a total area of nearly 6,000 square meters, Two series of products “Zhuoshi” and “Signal Fire” have been sold to many countries and regions, including North America, South America, Europe and Southeast Asia etc, our products have gained highly praise from customers.
l Service and Warranty
Once you buy our Fusion Splicer machine, we offer original packaging new machine, the products meet industry-related quality standards and commitment to enjoy the following services provided by our company:
1. If there is quality problem from the date of purchase within three months, we offer free replacement machine, and we pay the shipping cost.
2. Lifetime warranty, lifetime free parts, but these circumstances are not within the scope of this provision.
P.S. Except for the cleaver, Miller clamp, stripping pliers, fiber holders and other tools whose life depends on the frequency of use and the use of the environment. Battery warranty for one year, it is in free warranty where it is damaged or can not be charged in one year.
3. Without our company authorization, unauthorized disassembly, repair situation; at the same time our company reserves the right to further responsibility.
4. When the splicing reaches 30,000 times, our company will replace a brand new machine for customer free of charge.
A. Splicing times to bind the APP software records shall prevail.
B. Customers need to send back the old machine.
C. After we received the old machine, we will provide free replacement of the latest new machines to customers.
D. Cleaver, Miller clamp, stripping pliers and fiber holders are not in the free replacement.
l Packaging & Shipping
Orders would be shipped within 2 working days upon receiving cleared payments when stock lasts. Delivery time depends on the shipping method, the following is the typical time:
Faster courier (Such as FedEx, DHL, UPS...) would take 3-7 days;
Air mail (Hong Kong air mail, Singapore air mail) would take 10--14 days.
Package might be delayed occasionally by the Customs or the carrier, we sincerely hope each customer could give a few more days when this happens
l Payment
We accept T/T, Alipay, Western Union, MoneyGram and PAYPAL. All major credit cards are accepted through secure payment processor ESCROW.
