Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CARDLAN | Model Number: | CL-1806-T255 |
Product Description

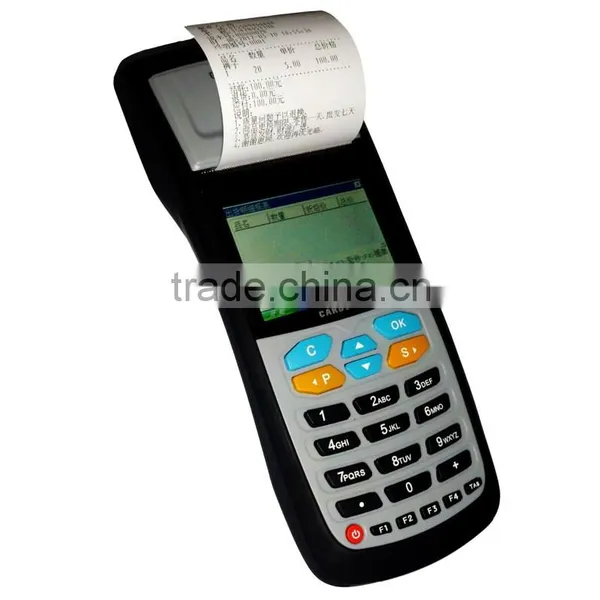

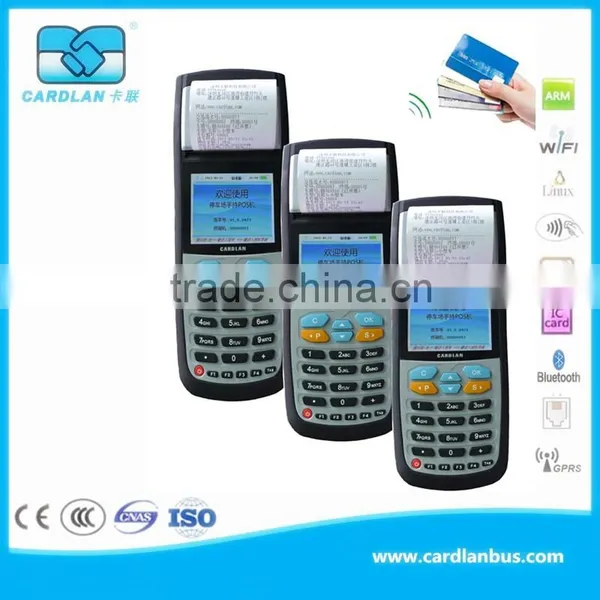

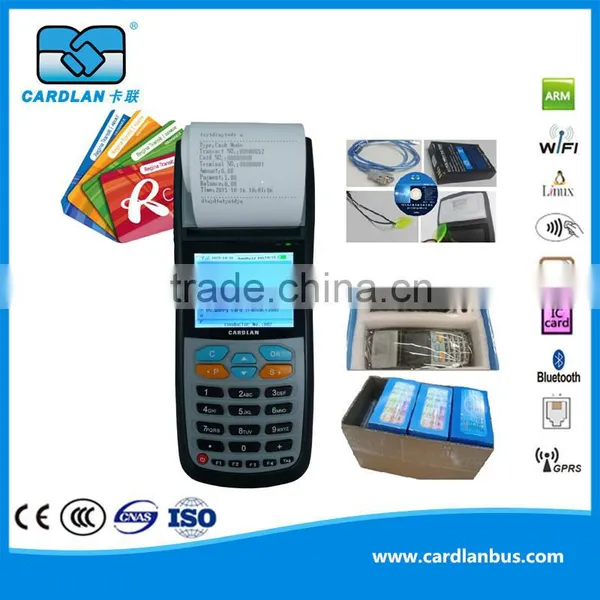

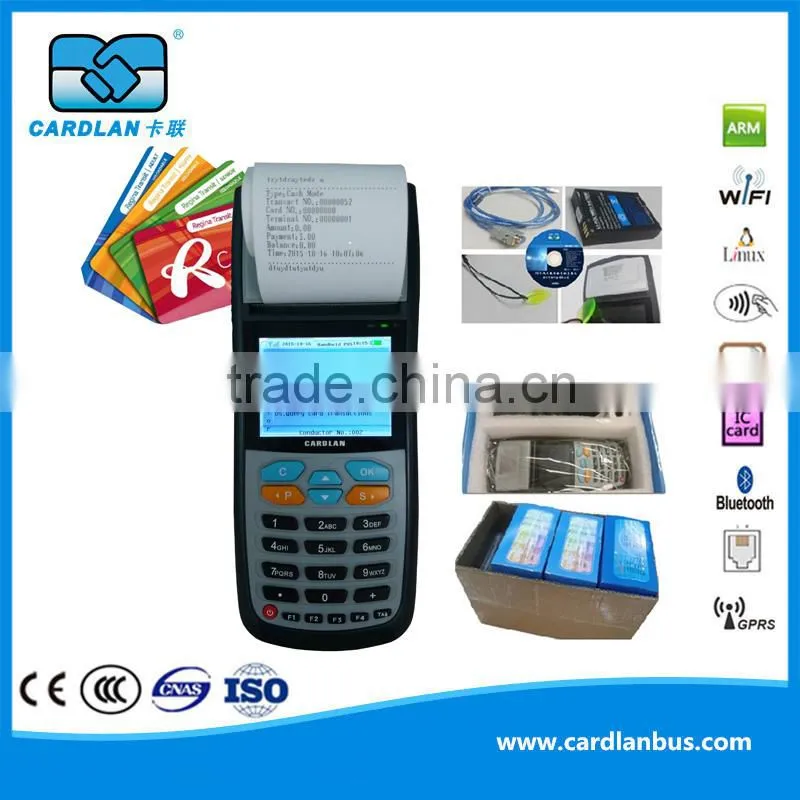

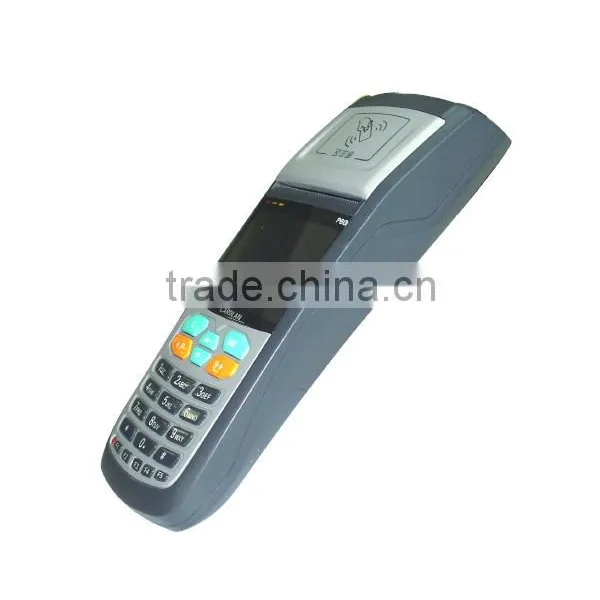

Shenzhen rfid mifare ethernet reader with 3G WiFi printer, MiFare card module for RFID handheld reader
Over 16 Years' Manufacturing Experience
Shenzhen Cardlan Technology Co. Ltd was established in 2000, with a registered capital of over $1.6 million. We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems.
Application:
1. Micro-payments solutions for transit (bus, MRT, LRT);
2. Micro-payments solutions for taxi;
3. Micro-payments solutions for parking lot
4. Micro-payments solutions for retail (Super market, store, theater) and other services.
Features:
1. Support paper slip printing
2. Large data storage capacity
3. Multifunctional conditions for query and statistics
4. Various switching modes of consumption
5. Download data thru GPRS instantly, with good stability
6. Data associated, ultraviolet light for money detecting
7. Small, portable, multifunctional, fast operation
8. With specialized big capacity Li-polymer battery, over 200 hours standby time
Technical specifications:
Model:CL1806 Linux POS terminals for car parking system
Dimension:217*83*46mm
Material:Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference
Display:2.8 inch LCD display (320*240)
Operating system:Linux 2.6 system
CPU:N32905 processor, ARM9 core @ 240MHZ
Memory:32MBytes SDRAM, 128MB NANDFlash
Data capacity:259840 pcs of detailed data for console storage
Card capacity:91,880,000 pcs
Black list:91,880,000 pcs (download thru PC with USB)
Working Voltage:DC12V
Battery:7.4V 2000mAh Li-polymer
Operating temperature:-20℃~60℃
Storage temperature:-40℃~85℃
Humidity:0-90% RH non condensing
Pilot lamp:Red, Green, Yellow light
Sound prompting:buzzer
Keypad:In-built 24 pcs Alpha-numeric keypad
Flash Memory:64 Mbyte, can be extended to 256 Mbyte
RFID:Can read and write ISO14443 TYPE AB Electronic tag (Incl. Combi-Card )
Read card distance:0~50mm
Frequency:13.56MHz
Supporting card:Mifare 1 card, Mifare DESfire EV1, CPU card, UnionPay IC card
Interfaces/Connectors:RS232, USB
Printer:in-built Thermal Printer
Width of receipt:Thermal paper, 58 x 30 mm
Power consumption:Static: ≤0.2 W; Dynamic:≤15 W
Communication Modules:GPRS(900Mhz/1800Mhz), or CDMA(800Mhz)
WIFI:Supporting 802.11n/b/g standards,150Mbps,2.4Ghz
UnionPay:Compatible for PBOC3.0 unionpay card
Upgrading:Connect USB to PC, upgrade with GPRS
Data collection:WIFI, GPRS, USB
Offering 24-hour Online Service
We offer 24-hour online service, and door-to-door installation service. Our hardware carry one-year warranty and software have lifetime maintenance service. Inquire today to begin sourcing.
Adhering to ISO Standards Strictly
We have a number of highly qualified management and R&D talents (45 engineers),and 10 QC for the all production process. Operating according to ISO 9001:2000 standards, CE certifications, Anti-explosion certification, and PBOC3.0 certification. we have won the approval and trust of clients in China and abroad.
We have established relatively perfect R&D management system, quality control system and operation management system. Our company consists of MBA, EMBA, and technologists grouped under the leadership of Chairman Mr. Quan Zhang.
Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.
