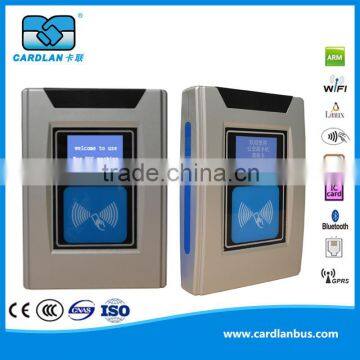

Shenzhen CL-A0509 waterproof Contactless IC card reader for the payment
Over 15 Years' Manufacturing Experience
Shenzhen Cardlan Technology Co. Ltd was established in 2000, with a registered capital of over $1.6 million. We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems.
Linux Bus POS Device
Application:
1. Bus, Taxi, Metro, Highway, Supermarkets, Gas station, Kiosk, Store, Theater and so on fast payments fields;
2. Government, Institution, Company, Factory, School, Hospital, Hotel;
3. Urban public transportation ticket payment system, Company shuttle bus ticket payment system , School shuttle bus payment system
Features:
1. Made of industrial grade material, Fully adapt to special circumstances on bus
2. Sealed, dustproof, waterproof, shockproof and anti-electromagnetic interference
3. Dedicated stable power supply, voltage overload protection
4. With the most advanced Linux system, high-definition LCD display
5. WIFI Communication + USB data acquisition, support remote upgrading
6. Contactless smart card, read/write capability, light display for reading card
7. Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card";
8. Support Mifare1 card, CPU card
9. With Thermal printing module, can connect to POS58 slip printer
10. Optional GPS positioning module, for global positioning satellite positioning;
11. Great stability of data storage, data kept as long as 10 years even with power outage
12. Card Capacity: 91,880,000 pcs;
13. Can check the nearest 20 records, to prevent ticket payment dispute.
Technical specifications:
Model: | CL-A0509 bus pos terminal |
Dimension: | 200*151*61.5mm |
Material: | Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference |
Display: | 3.5 inch LCD display,320x240 |
Operating system: | Linux 2.6 system |
CPU: | N32905 processor,ARM9 core @ 240MHZ |
Memory: | 32MBytes SDRAM,128MB NANDFlash |
Data capacity: | 259840 pcs of detailed data for console storage, unlimited data at GPRS storage |
Card capacity: | 91,880,000 pcs |
Black list: | 91,880,000 pcs (download thru PC with USB) |
Working Voltage: | DC 8V-50V |
Operating temperature: | -25℃~65℃ |
Storage temperature: | -40℃~85℃ |
Humidity: | 0-95% RH non condensing |
Lighting: | Red, Green light |
Sound prompt: | Buzzer, single channel speaker (voice report) |
Voice report prompt: | 16KHz,16bit single channel voice report prompt |
Keypad: | 4 command buttons |
Barcode | 1D barcode or 2D barcode |
RFID: | Can read and write ISO14443 TYPE AB Electronic tag (Incl. Combi-Card ) |
Read card distance: | 0~50mm |
Supporting card: | Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card |
Frequency: | 13.56MHz |
Interfaces/Connectors: | RS232, RS485, USB |
Printer modules: | Can be connected to slip printer-POS58 |
Width of receipt: | Based on printer configuration |
Positioning mode: | GPS |
Power consumption: | ≤10W |
Communication Modules: | GPRS(900Mhz/1800Mhz), or CDMA(800Mhz) |
WIFI: | Supporting 802.11n/b/g standards,150Mbps,2.4Ghz |
UnionPay: | Compatible for PBOC3.0 UnionPay card |
Upgrading: | Connect USB to PC, upgrade with GPRS |
Data collection: | WIFI, GPRS, USB |
Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.
More information,pls contact Kathy directly!
