HM-YP540B Box Bubble Pressing Machine
USD $1 - $1
/ Set
1 Set(Min.Order)
- 888 Set / Sets per Month
- Shenzhen
- T/T PayPal
You May Like
- Case Packer Pouch Cartoning Line for Packaging Doypack Bags
- Introduction of plastic hollow plaid production line
- Cartoning Machine Monoblock Case Packer for Packaging Butter Bricks
- Auto Bottle Shrink Wrap Packaging Machine
- Semi-Automatic Heat Shrinking Machine
- Automatic Heat Shrink Edge Banding Shrink Packaging Machine
Product Details
Condition: | New | Application: | Other, bubble pressing | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Voltage: | 220V | Place of Origin: | Guangdong, China | Brand Name: | Hongming |
Model Number: | HM-YP540B | Dimension(L*W*H): | 900x800x1600mm | Weight: | 145kg |
Certification: | CE | After-sales Service Provided: | No overseas service provided |
Product Description
Specifications

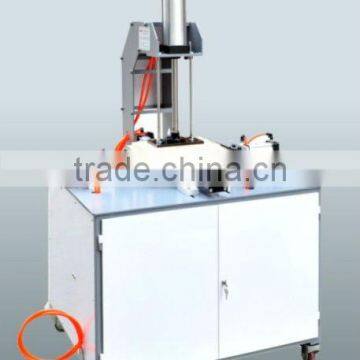

This machine adopts pneumatic & electric for pressing, and is easy and safe to operate.HM-YP540B Box Bubble Pressing Machine
This machine is used to press on the finished rigid boxes and drive the bubble out. And there are two sizes of this machine, as following:
Technical Parameters:
Model | HM-YP300B | HM-YP540B |
Dimension | 800x600x1450mm | 900x800x1600mm |
Net Weight | 85KG | 145KG |
Voltage | AC220V/50-60Hz | AC220V/50-60Hz |
Air Pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
Max. Box Size | 250x200x80mm | 500x400x200mm |
Min. Box Size | 50x50x10mm | 90x80x10mm |
Ideal Max. Box Size | 200x150x60mm | 400x300x150mm |
Downward Pressure | 160-220KG | 220-260KG |
Horizontal Pressure | 120-140KG | 160-200KG |
Upward Pressure | 40-60KG | 40-60KG |
Rigid box bubble pressing machine; rigid box pressing machine, wine box pressing machine; rigid box bubble removing machine, paper box removingmachine.
