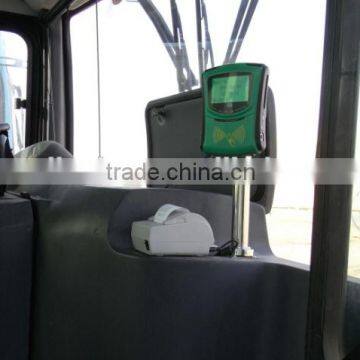

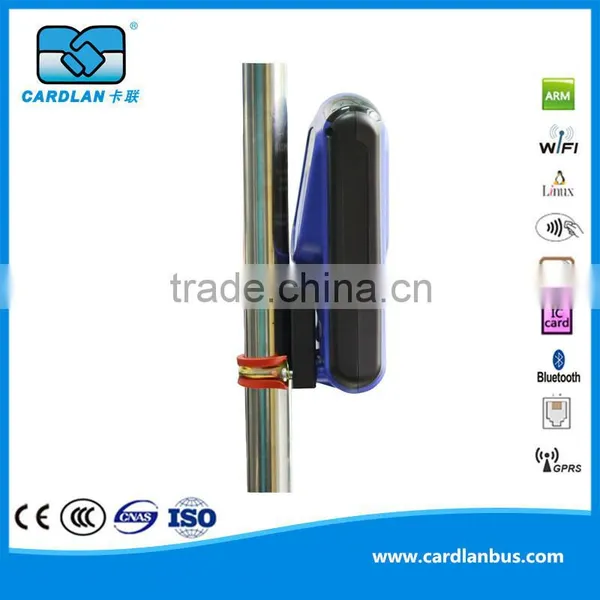

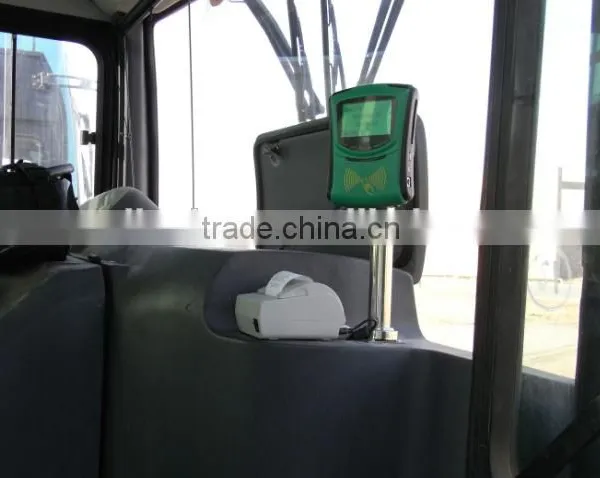

RFID 13.56MHz contactless IC card reader

Name: RFID 13.56MHz contactless IC card reader
Brand: CARDLAN
Price: USD $250 - 350 / Unit

FOB Price

USD $250 - $350 / Unit

1 Unit(Min.Order)

Supply Ability 5000 Unit / Units per Month
Port Shekou YianTian Port
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

CARDLAN

Model Number:

CL-1306-R

Product Description

Company Information

Over 15 Years' Manufacturing Experience
Shenzhen Cardlan Technology Co. Ltd was established in 2000, with a registered capital of over $1.6 million. We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems. We are among the first batch of national "MOHURD Interconnection-certified" companies. As one of the members on developing magnetic IC card reader system throughout China, after 15 years of continuous development and innovation, we have already become one of the most influential enterprises in POS terminal field in Asia.

Product Description

Application:

1. Bus, Taxi, Metro, Highway, Supermarkets, Gas station, Kiosk, Store, Theater and so on fast payments fields;

2. Government, Institution, Company, Factory, School, Hospital, Hotel;

3. Urban public transportation ticket payment system, Company shuttle bus ticket payment system , School shuttle bus payment system

Features:

1. Made of industrial grade material, Fully adapt to special circumstances on bus

2. Sealed, dustproof, waterproof, shockproof and anti-electromagnetic interference

3. Dedicated stable power supply, voltage overload protection

4. With the most advanced Linux system, high-definition LCD display

5. WIFI Communication + USB data acquisition, support remote upgrading

6. Contactless smart card, read/write capability, light display for reading card

7. Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card";

8. Support Mifare1 card, CPU card

9. With Thermal printing module, can connect to POS58 slip printer

10. Optional GPS positioning module, for global positioning satellite positioning;

11. Great stability of data storage, data kept as long as 10 years even with power outage

12. Card Capacity: 91,880,000 pcs;

13. Can check the nearest 20 records, to prevent ticket payment dispute.

Technical specifications:

Model:	CL1306 bus pos terminal
Dimension:	20015161.5mm
Material:	Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference
Display:	3.5 inch LCD display,320x240
Operating system:	Linux 2.6 system
CPU:	N32905 processor,ARM9 core @ 240MHZ
Memory:	32MBytes SDRAM,128MB NANDFlash
Data capacity:	259840 pcs of detailed data for console storage, unlimited data at GPRS storage
Card capacity:	91,880,000 pcs
Black list:	91,880,000 pcs (download thru PC with USB)
Working Voltage:	DC 8V-50V
Operating temperature:	-25℃~65℃
Storage temperature:	-40℃~85℃
Humidity:	0-95% RH non condensing
Lighting:	Red, Green light
Sound prompt:	Buzzer, single channel speaker (voice report)
Voice report prompt:	16KHz,16bit single channel voice report prompt
Keypad:	4 command buttons
RFID:	Can read and write ISO14443 TYPE AB Electronic tag (Incl. Combi-Card )
Read card distance:	0~50mm
Supporting card:	Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card
Frequency:	13.56MHz
Interfaces/Connectors:	RS232, RS485, USB
Printer modules:	Can be connected to slip printer-POS58
Width of receipt:	Based on printer configuration
Positioning mode:	GPS
Power consumption:	≤10W
Communication Modules:	GPRS(900Mhz/1800Mhz), or CDMA(800Mhz)
WIFI:	Supporting 802.11n/b/g standards,150Mbps,2.4Ghz
UnionPay:	Compatible for PBOC3.0 UnionPay card
Upgrading:	Connect USB to PC, upgrade with GPRS
Data collection:	WIFI, GPRS, USB

Our Services

After-sale services
Offering 24-hour Online Service
We offer 24-hour online service, and door-to-door installation service. Our hardware carry one-year warranty and software have lifetime maintenance service. Inquire today to begin sourcing. and other RFID systems. We are among the first batch of national "MOHURD Interconnection-certified" companies. As one of the members on developing magnetic IC card reader system throughout China, after 15 years of continuous development and innovation, we have already become one of the most influential enterprises in POS terminal field in Asia.

Our main customers

Contact Us

Shenzhen Cardlan Technology Co., Ltd.: Contact nameReyna Ren; Phone86-755-89966666-137; Address3/F,1st Building, Liantang Industrial Park, Kangzheng Road, Danzhutou, Nanwan Sub-district Office, Longgang District, Shenzhen City, China Shenzhen,Guangdong
